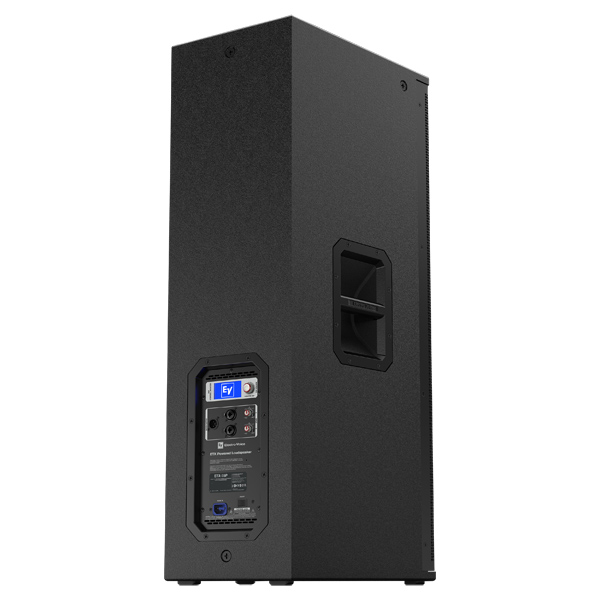

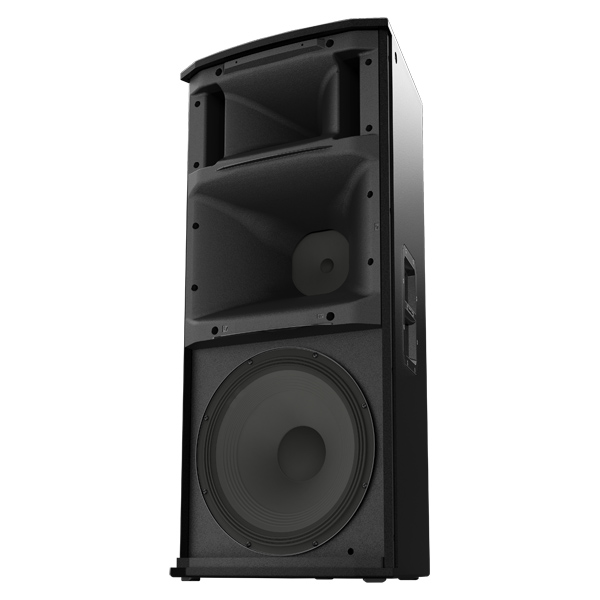

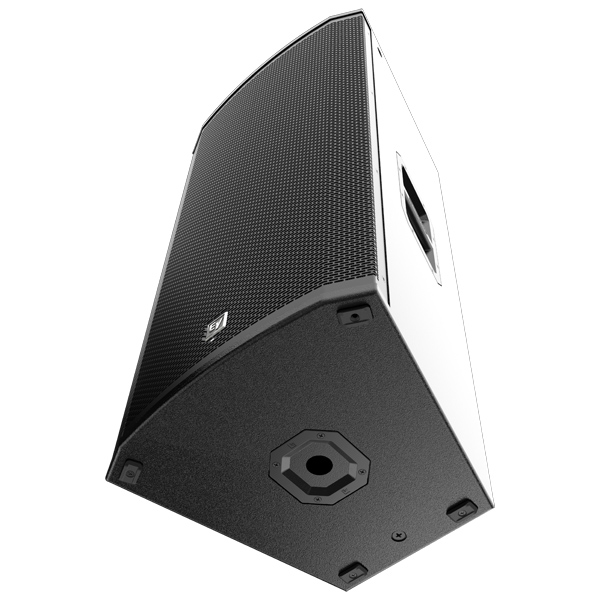

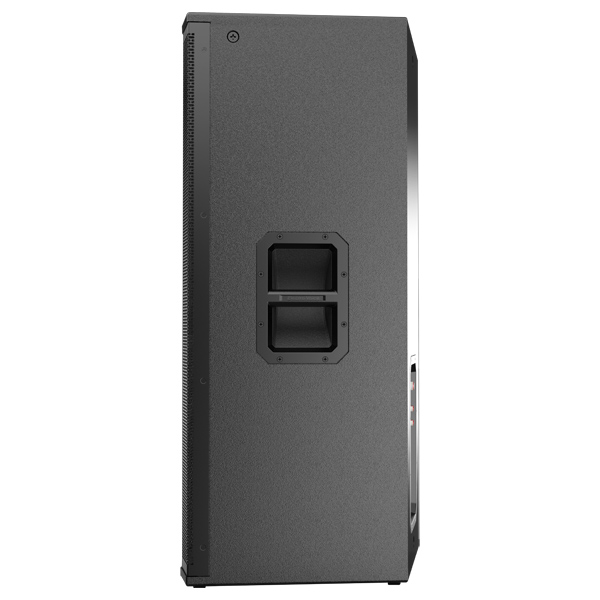

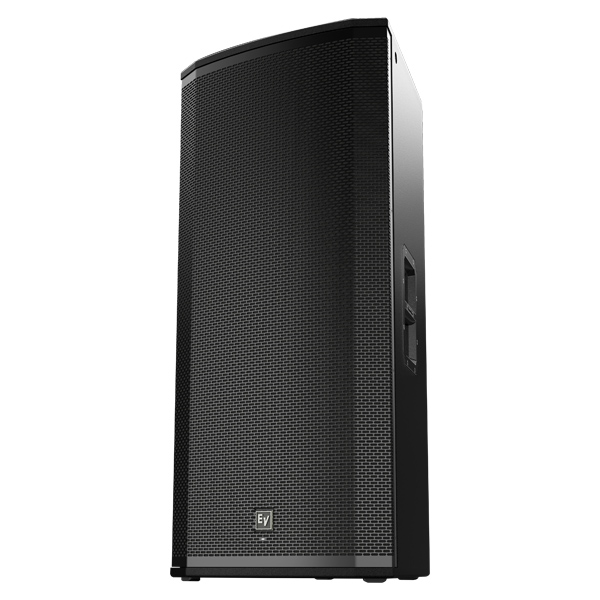

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
|
Frequency Range |
38 Hz – 20 kHz |
|
Maximum SPL |
136 peak dB |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
|
Power Rating |
2000 W |
|
Frequency Response |
48 Hz – 20 kHz |
|
Coverage (Nominal -6 dB) H |
60 ° |
|
Coverage (Nominal -6 dB) V |
40 ° |
|
LF Transducer |
SMX2151 380 mm (15 in) |
|
MF Transducer |
EVS-6C 6.5-in midbass driver |
|
HF Transducer |
DH3-B 1.25-in titanium compression driver |
|
Crossover Frequency |
700 Hz, 2900 Hz |
|
Connector Type |
(2) XLR/TRS combo jack and (1) XLR link output |
|
Enclosure Material |
18-mm, 13-ply birch plywood with EVCoat |
|
Grill |
16AWG steel with powdercoat |
|
Suspension |
(8) M10 suspension points |
|
Height |
1023 mm (40.28") |
|
Width |
469 mm (18.46") |
|
Depth |
426 mm (16.77") |
|
Weight Net |
41.7 kg (91.93 lbs) |
|
Shipping Weight |
46.8 kg (103.18 lbs) |
