Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
|
Frequency Range |
32 Hz – 180 Hz |
|
Low Pass Frequency |
Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
|
Maximum SPL |
134 dB peak dB |
|
Power Rating |
1800 W |
|
Frequency Response |
37 Hz – 150 Hz |
|

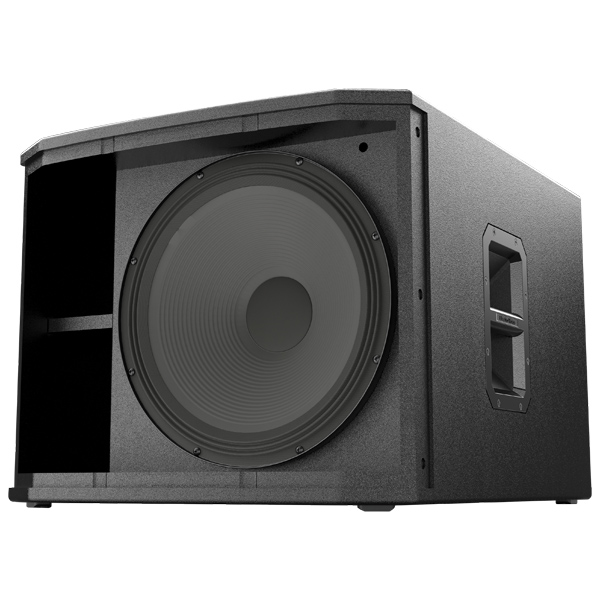

LF Transducer |
DVX3159A 380 mm (15 in) |
|

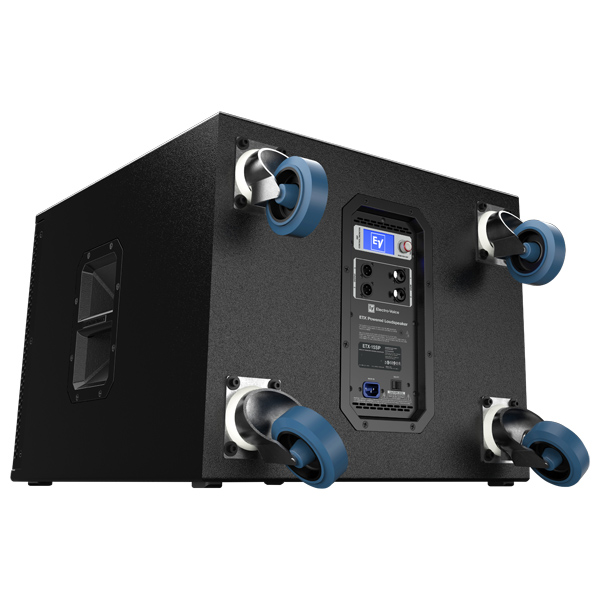

Connector Type |
(2) XLR/TRS Combo Jack and (2) XLR link Output |
|
Enclosure Material |
18-mm, 13-ply birch plywood with EVCoat |
|
Grill |
16AWG steel with powdercoat |
|
Suspension |
(8) M10 suspension points |
|
Height |
471 mm (18.54") |
|
Width |
576 mm (22.68") |
|
Depth |
825 mm (32.48") |
|
Weight Net |
41.7 kg (91.93 lbs) |
|
Shipping Weight |
46.8 kg (103.18 lbs) |
