Available Coverage Patterns (Nominal -6 dB) HxV |
40x30, 60x40, 60x60, 90x40, 90x60, 90x90 ° |
|
Environmental Specs |
Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
|
Input Connections |
Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
|
Internal Passive Crossover Frequency |
1300 Hz |
|
Frequency Response (-3 dB) |
60 - 17000 Hz |
|
Frequency Response (-10 dB) |
50 - 20000 Hz |
|
Recommended High-Pass Frequency |
60 Hz |
|
Sensitivity 1 W/1 m |
106 (EVH-1152S/43) 105 (EVH-1152S/64, EVH-1152S/66, EVH-1152S/94, EVH-1152S/96), 104 (EVH-1152S/99) dB |
|
Max. SPL/1m (calc) |
139 (EVH-1152S/43) 138 (EVH-1152S/64, EVH-1152S/66, EVH-1152S/94, EVH-1152S/96), 137 (EVH-1152S/99) dB |
|
System Power Handling (Continuous/Program/Peak) |
500, 1000, 2000 Watts |
|
LF Transducer |
SMX2151 15-inch (381 mm) driver |
|
HF Transducer |
DH7N 3-inch (76 mm) diaphragm compression driver |
|
Nominal Impedance (Passive) |
8 Ω |
|
Minimum Impedance |
6 Ω |
|
Enclosure Material |
13-ply weather-resistant birch |
|
Grill |
Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind |
|

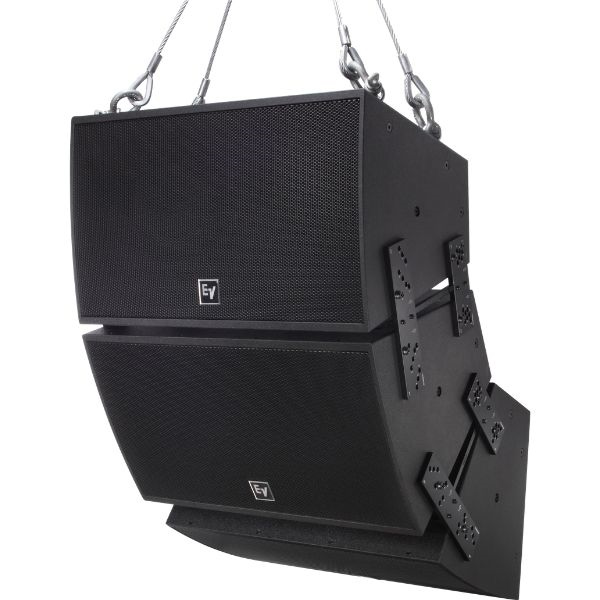

Suspension |
(28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) |
|
Height |
768.6 mm (30.26") |
|
Width |
768.6 mm (30.26") |
|
Depth |
680.1 mm (26.78") |
|
Weight Net |
66.1 kg (145.73 lbs) |
