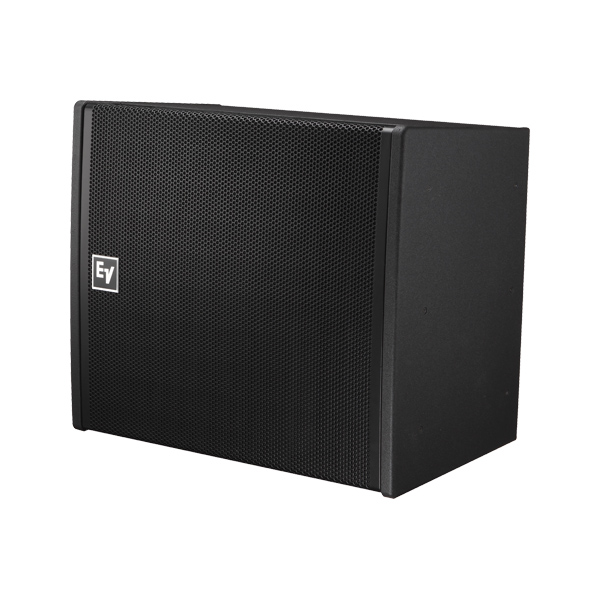

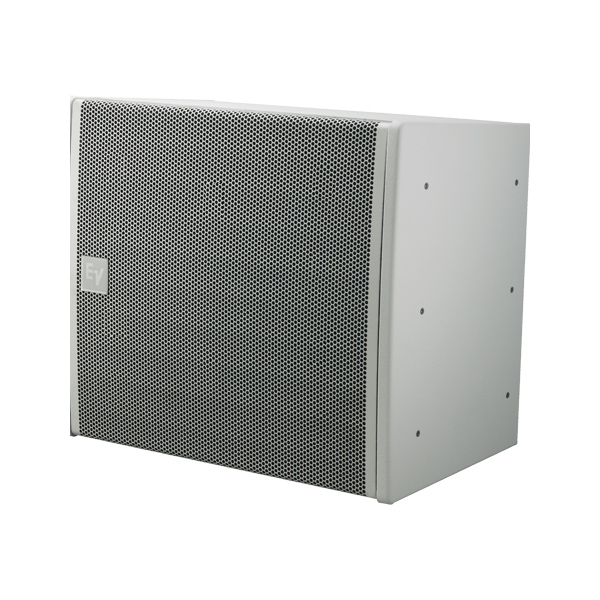

Dvosistemska Line array zvučna kutija EVA-2082S/906 2x8" 350W
Each EVA module is available with either a 90° or 120° horizontal dispersion pattern and is acoustically designed to work with any otherEVA module.
Two versions are available with 6° vertical dispersion patterns (for longthrow), and may be combined for use as the main building blocks of a typical line array: 2082S/126 (120° x 6°) and 2082S/906 (90° x 6°).
Mixed-model array configurations allow EVA to precisely address a wide variety of venues, e.g. EVA-2082S/906 for long-throw with EVA- 2082S/920 for near-field coverage. A combination of these modules provides optimum vertical coverage for any application.
Two versions are available with 20° vertical dispersion patterns (for nearfield coverage): 2082S/1220 (120° x 20°) and 2082S/920 (90° x 20°).
Freq. Response1 (-3 dB): 60 Hz - 19 kHz
Freq. Range1 (-10 dB): 45 Hz - 20 kHz
Rec. Hipass Frequency: 50 Hz
Axial Sensitivity2: 104 dB (1W/1m)
Max. Calculated SPL2: 129 dB Continuous, 135 dB Peak
Horizontal Coverage: 90°
Vertical Coverage: 6°
Power Handling: 350W Continuous, 1400W Peak

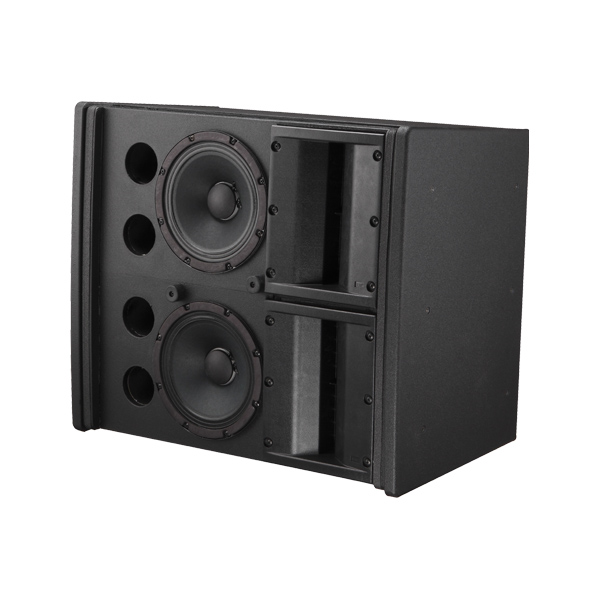

LF Transducer: (2) EVS2008, 8 in (203mm) Driver
HF Transducer: (4) DH2005, 1.25 in (32mm) Diaphragm Compression Driver
Crossover Frequency: 1740 Hz
Nominal Impedance: 16 Ohms
Minimum Impedance: 12 Ohms
Connectors: (2) 4 Contact 10 AWG Phoenix/ EuroBlock Style Screw Terminals PI Version - Gland Nut with Included Input Panel Cover
Enclosure Material: Plywood and MDF with EVCoatTM
Grille: 16 GA Galvanneal, Powdercoated PI Version - Stainless Steel with Hydrophobic Cloth
Suspension: EVA Grid (Sold Separately)
Dimensions (H x W x D): 20.25” x 23.50” x 14.10” (514.4mm x 596.9mm x 358.2mm)
Net Weight: 81.8 lbs (37.1 kg)
Shipping Weight: 91.8 lbs (41.7 kg
