Optimized for performance with the ELX112P and ELX115P, the ELX118P adds a deep, low-frequency, amplified punch that you can hear and feel.
Designed for Pro Music, and other applications. 18” woofer for powerful, engaging bass response 32 Hz – 130 Hz frequency range; 134 dB max SPL 700 W Class D lightweight amplifier — runs cool without fans Rugged wood cabinet — supports pole-mounted or stacked configurations
Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB): 42 Hz - 100 Hz Hz
Frequency Response (-10 dB): 32 Hz - 130 Hz Hz
Max. SPL/1m (calc): 134 dB
Coverage (Nominal -6 dB) H°: Omnidirectional °
Coverage (Nominal -6 dB) V°: Omnidirectional °

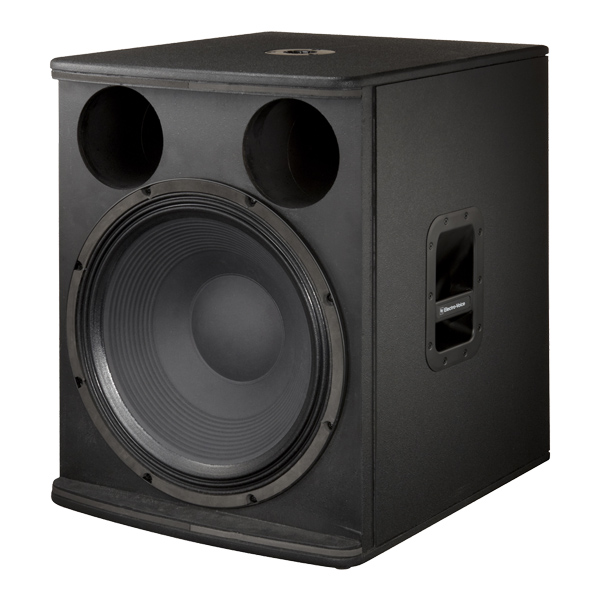

LF Transducer: (1) EVS-18K, 457mm (18”) Woofer
HF Transducer: N/A
Crossover Frequency: 100 Hz

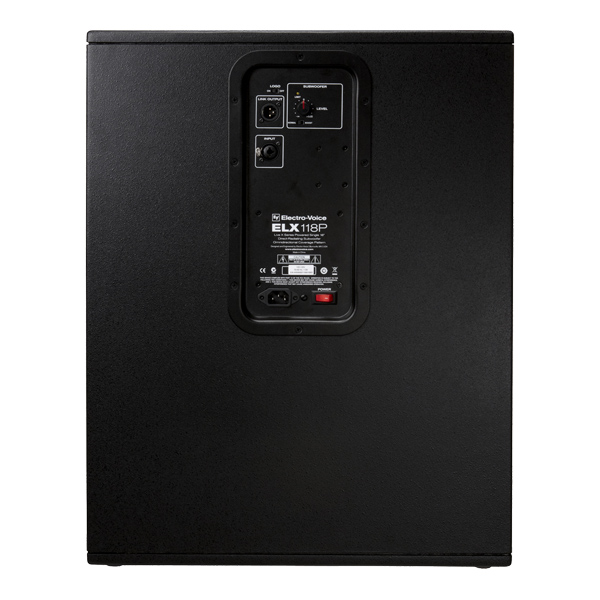

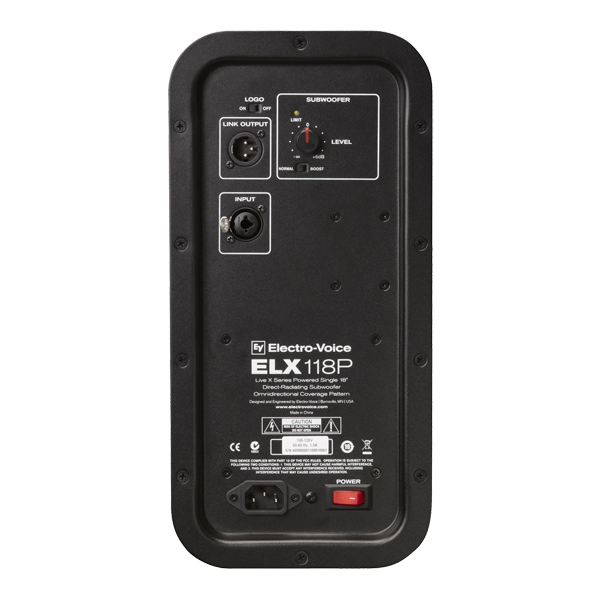

Connector Type: (1) XLR/TRS Combo Jack, (1) XLR Link Output

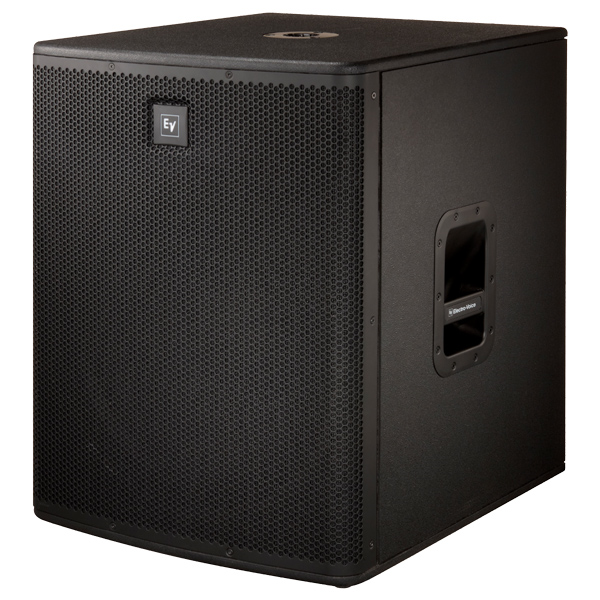

Grill: 18GA Steel with Black Powdercoat
Height: 661 mm (26.02")
Width: 507 mm (19.96")
Depth: 574 mm (22.6")
Weight Net: 31.7 kg
