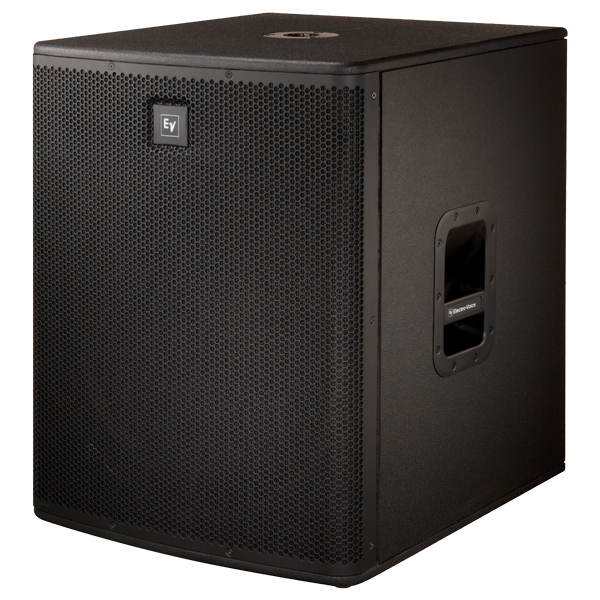

Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.
Designed for Pro Music, and other applications. 18” woofer provides extended low-frequency output 32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL 400 W continuous and 1600 W peak power handling Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers
Axial Sensitivity: 96 dB
Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB): 50 Hz - 100 Hz
Frequency Response (-10 dB): 35 Hz - 200 Hz
System Power Handling (continuous/program/peak):400/800/1600 Watts
Recommended High-Pass Frequency: 30 Hz
Max. SPL/1m (calc): 134 dB
Coverage (Nominal -6 dB) H°: Omnidirectional °
Coverage (Nominal -6 dB) V°: Omnidirectional °

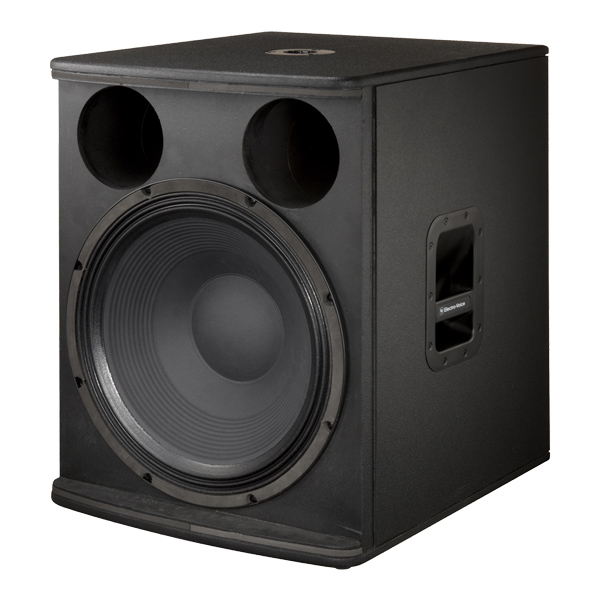

LF Transducer: (1) EVS-18K, 457mm (18”) Woofer
HF Transducer: N/A
Crossover Frequency: N/A Hz
Nominal Impedance (Passive): 8 Ω
Minimum Impedance: 6.7 Ω

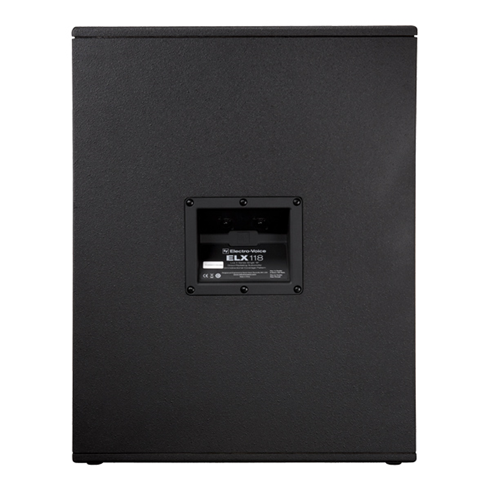

Connector Type: Dual NL4
Grill: 18GA Steel with Black Powdercoat
Height: 661 mm (26.02")
Width: 507 mm (19.96")
Depth: 574 mm (22.6")
Weight Net: 31.8 kg
