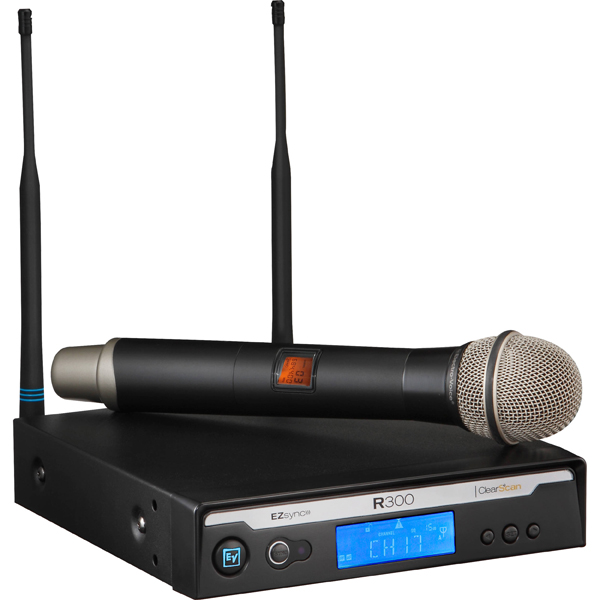

The HT-300 metal handheld transmitter is made to withstand the rigors of daily use but still be comfortable in your hand. The PL22 dynamic microphone is the perfect all-around microphone for speaking engagements, singing and emcees. The cardioid pick up pattern rejects noise from the surroundings, helps to control audio feedback, and still allows an experienced vocalist to work the microphone. The receiver for the R300 system is equally at home on a table top or in a 19 inch equipment rack. Rack mount kits and front mount antenna cables are available for the R300 for a professional installation. For applications with up to 4 receivers in one rack, the APD4+ antenna splitter can provide antenna and power feeds.
Antennas: Flexible TNC 1/2 Wave
Audio Frequency Response: 80 Hz - 18kHz +/- 2dB
Battery Life: 14 hours with (2) AA alkalines typical
Case Material: Metal
Connector Type: 1/4 inch unbalanced, 3-pin XLR balanced
Controls: on/off, Set, Up, Down, Sync
Distortion (@ 1 kHz, 40 kHz deviation): less than 1.0, 0.4 typical %
Diversity: True Antenna
Dynamic Range: greater than 95 dB
Element: PL22 Cardioid Dynamic
Power Supply: 12 VDC, 500mA max
Receiver Type: Synthesized PLL Agile UHF
RF Frequency Range: 16 MHz
RF Output: 8 mW typical
RF Sensitivity (12 dB SINAD): less than 1.0 uV
Signal-to-Noise Ratio (A-weighted): greater than 100 dB
Squelch: Tone code plus Amplitude
