Electro-Voice Evid PC8.2
Electro-Voice Evid PC8.2
Electro-Voice Evid PC8.2
Electro-Voice Evid PC8.2

Kod proizvoda:2600

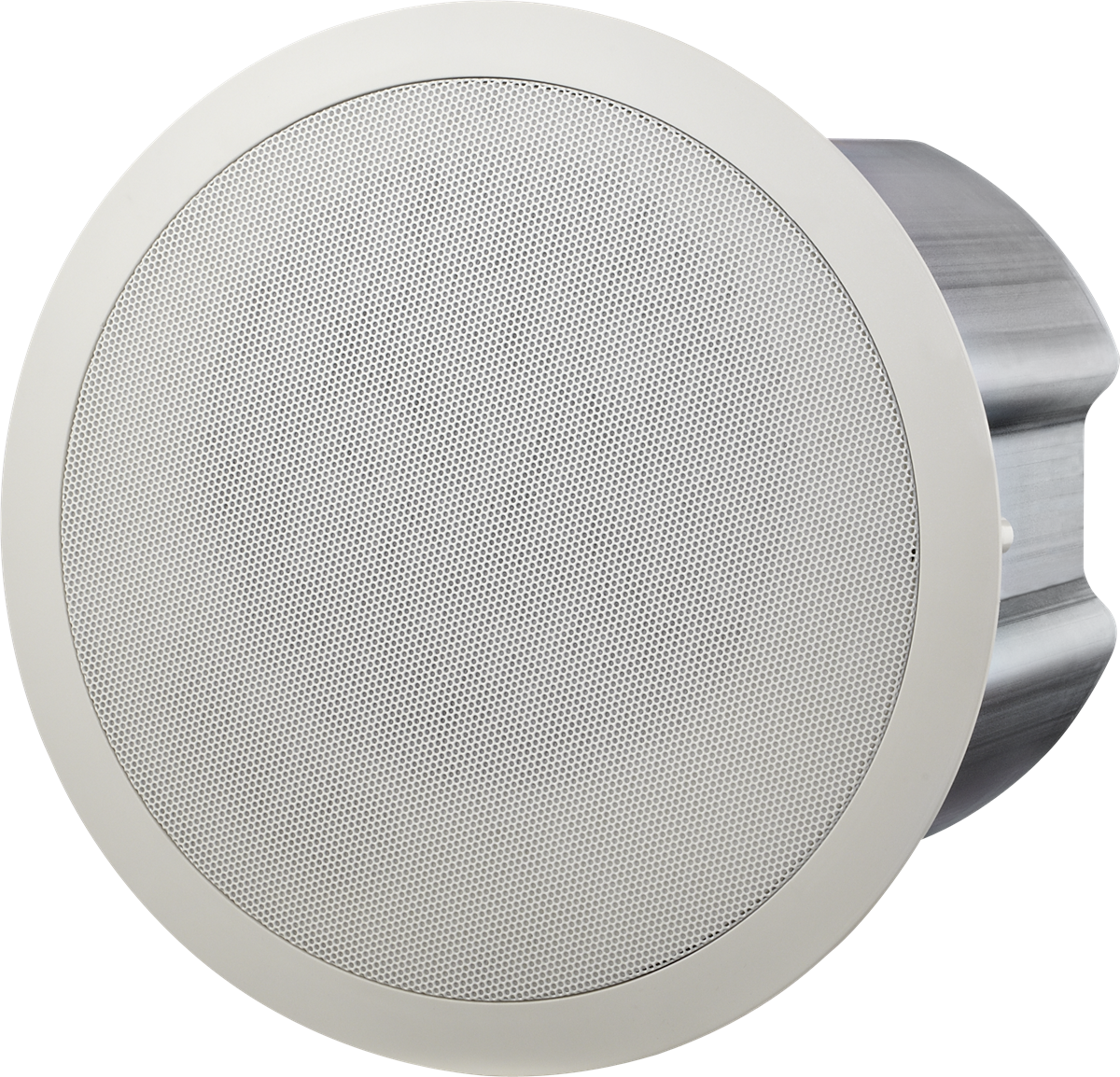

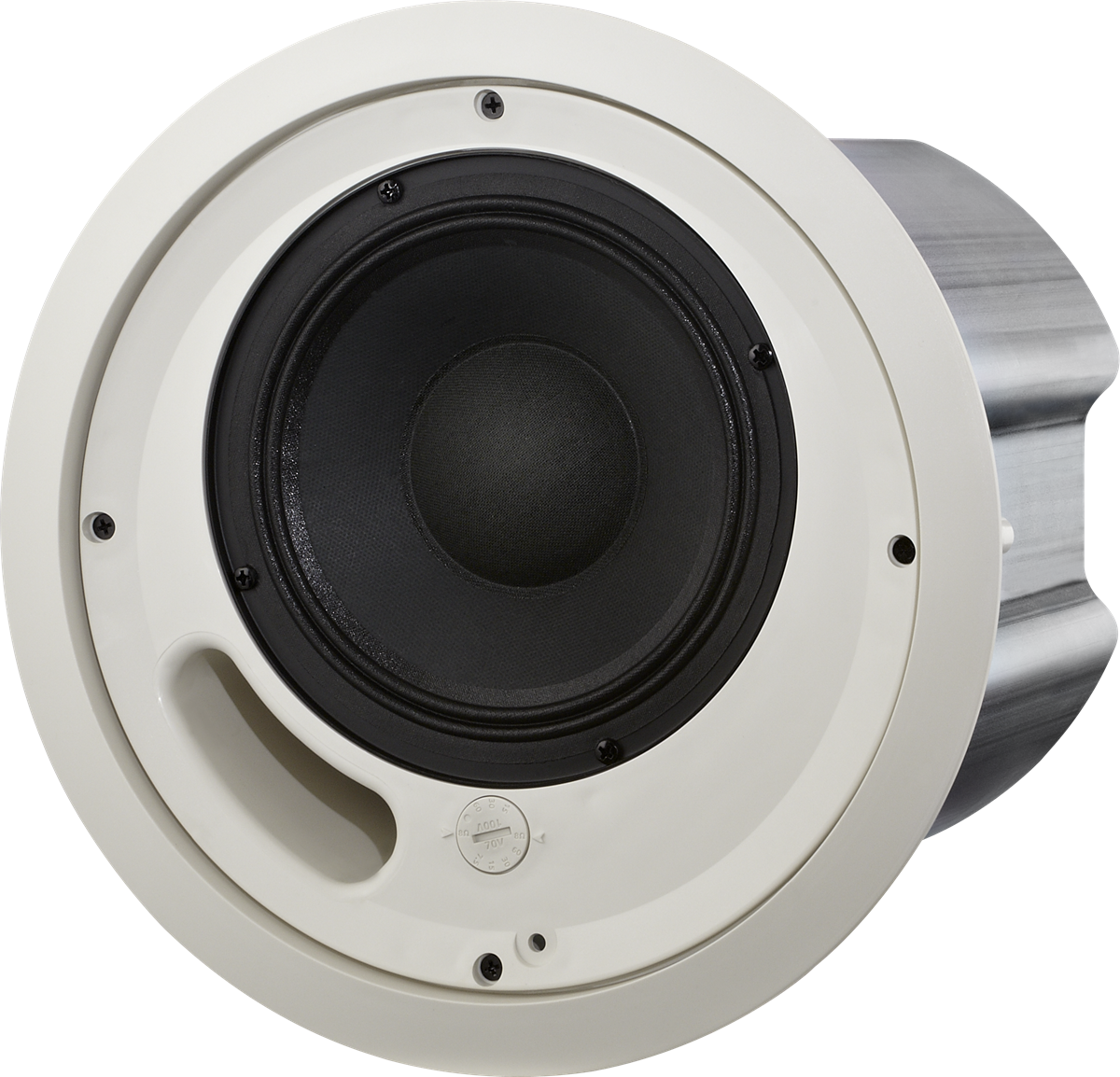

Electro-Voice Evid PC8.2

Pasivna dvosistemska 100V zvučna kutija 100V60/30/15 8Ω/100W

62.400,00

Specifikacije proizvoda:

  • Frekventni opseg (-10dB):
    • 40-20.000Hz
  • Boja:
    • bela
  • Osetljivost:
    • 88dB
  • Maksimalni SPL:
    • 108dB
  • Niskotonac (bas):
    • 8"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • Phoenix
  • Materijal:
    • Metal
  • 100V snaga:
    • 60/30/15
  • Nosač za montažu:
    • da
  • Težina:
    • 8

Opis proizvoda:

Weatherized No
HF Transducer 35 mm compression driver
Frequency Range (-10 dB)¹ 40 - 20kHz
Max. SPL/1m (calc)² 108 db avg, 114 pk
LF Transducer 200 mm (8 in)
Power Rating 200
HF Power Handling 200W program, 100W pink noise
Connector Type Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
Enclosure Material ABS plastic (UL94V-0) baffle, steel back can
Grille Color-matched steel grille with fabric
Available Color White
Sensitivity 1 W/1 m 88
Height 324
Weight Net 8
Shipping Weight 20.23
Coverage (Nominal -6 dB) 100°
Mounting Systems C ring, tile bridge
Impedance 8
Cutout Size 294.3
Regulatory Approvals UL1480; UL2043
Diameter (Max) 327
Transformer Taps (Transformer Version Only) 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω
