Recommended high pass (Hz) 6 |
70 Hz |
|
Transformer taps 70 V line (W) |
30 W, 15 W, 7.5 W, 3.75 W, 1.88 W |
|
Transformer taps 100 V line (W) |
30 W, 15 W, 7.5 W, 3.75 W |
|

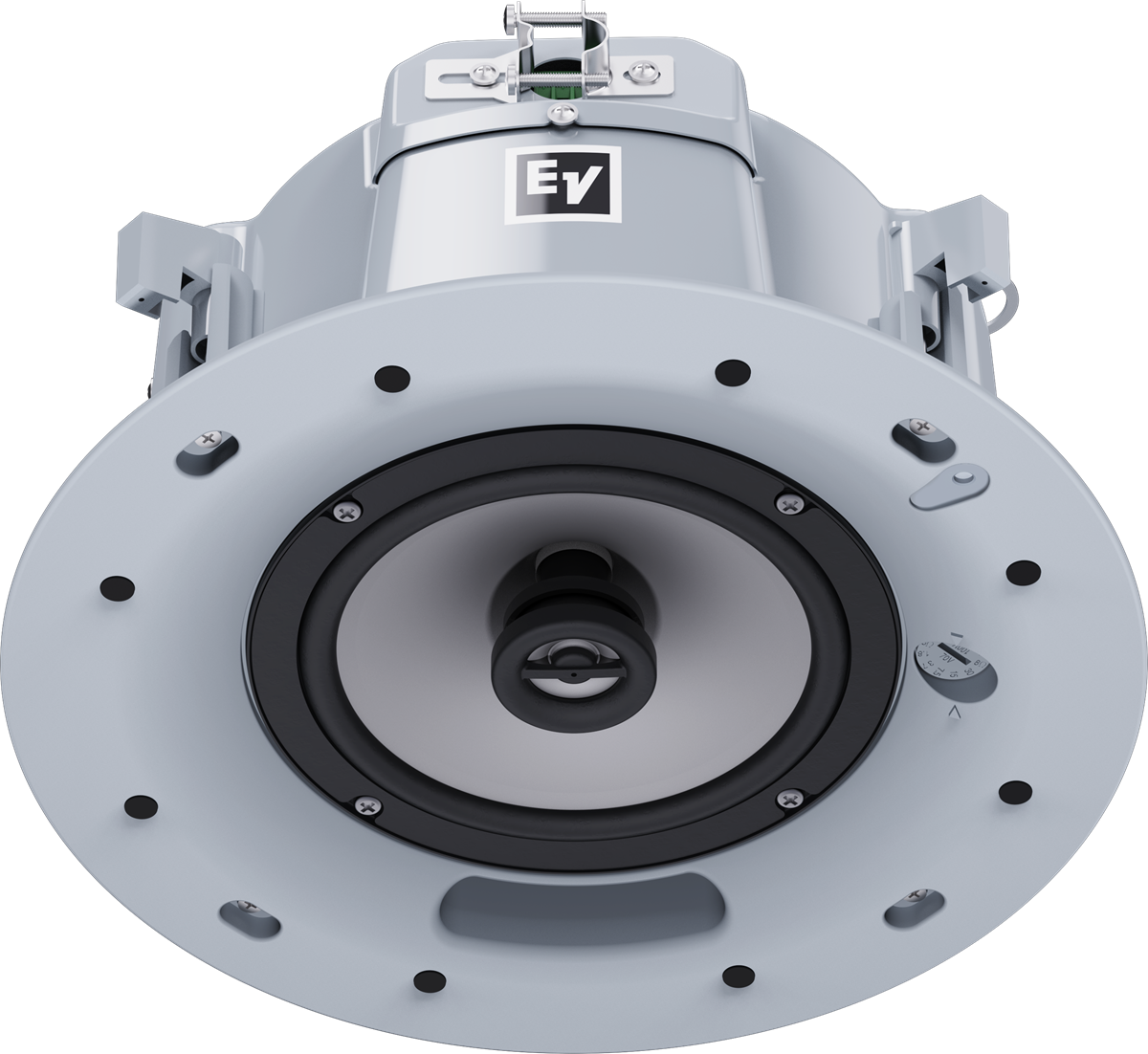

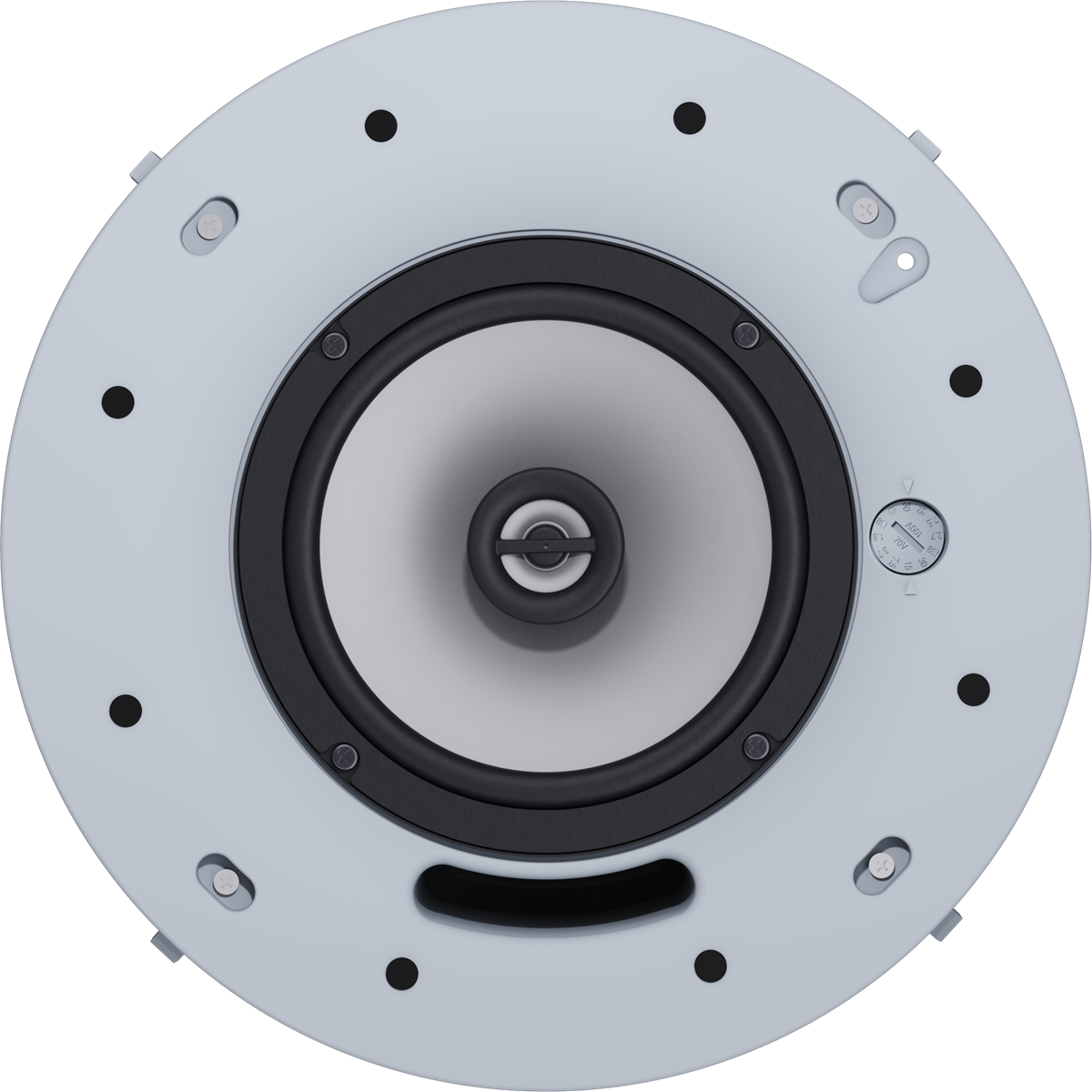

LF transducer size (in) |
6 in |
|
HF transducer size (in) |
1 in |
|
Material |
Steel |
|

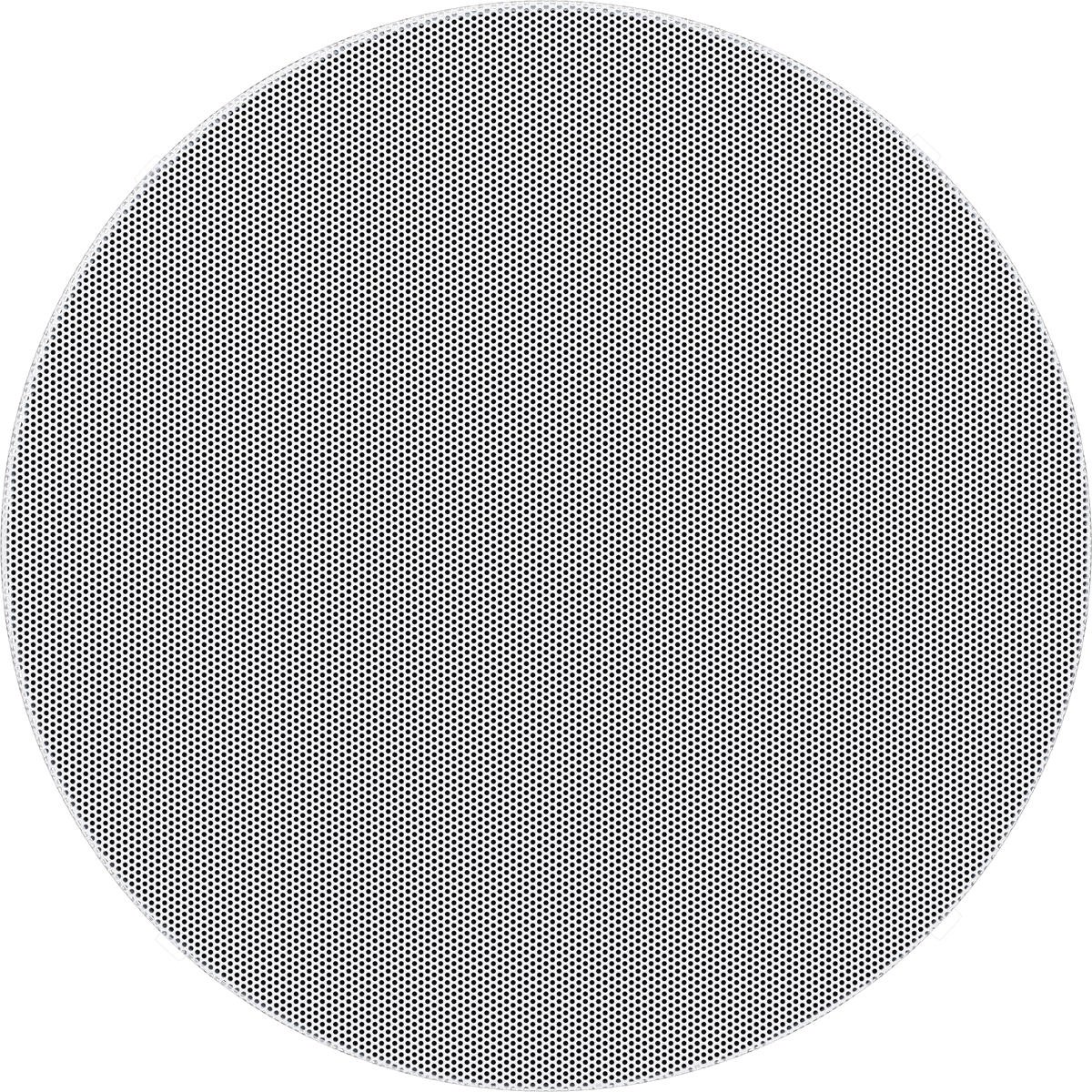

Grille material |
Powder coated steel |
|

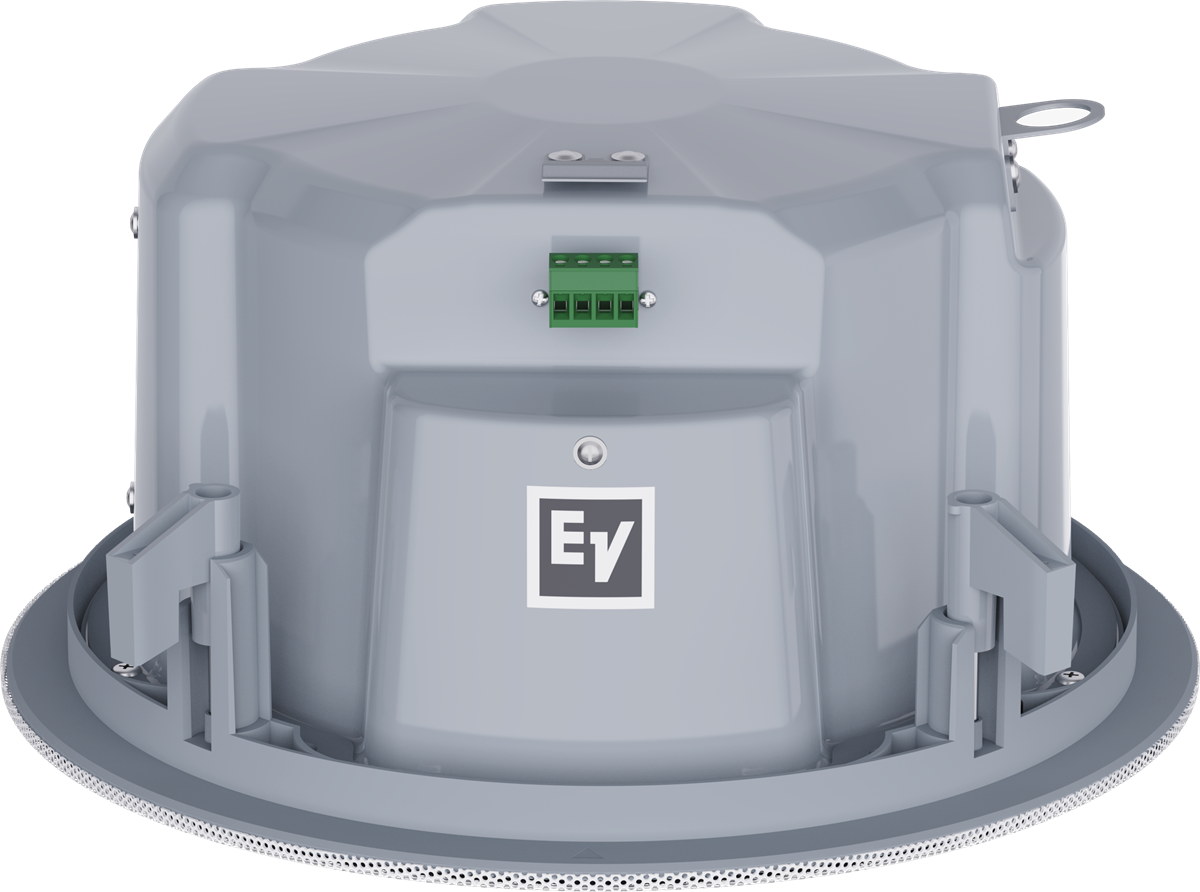

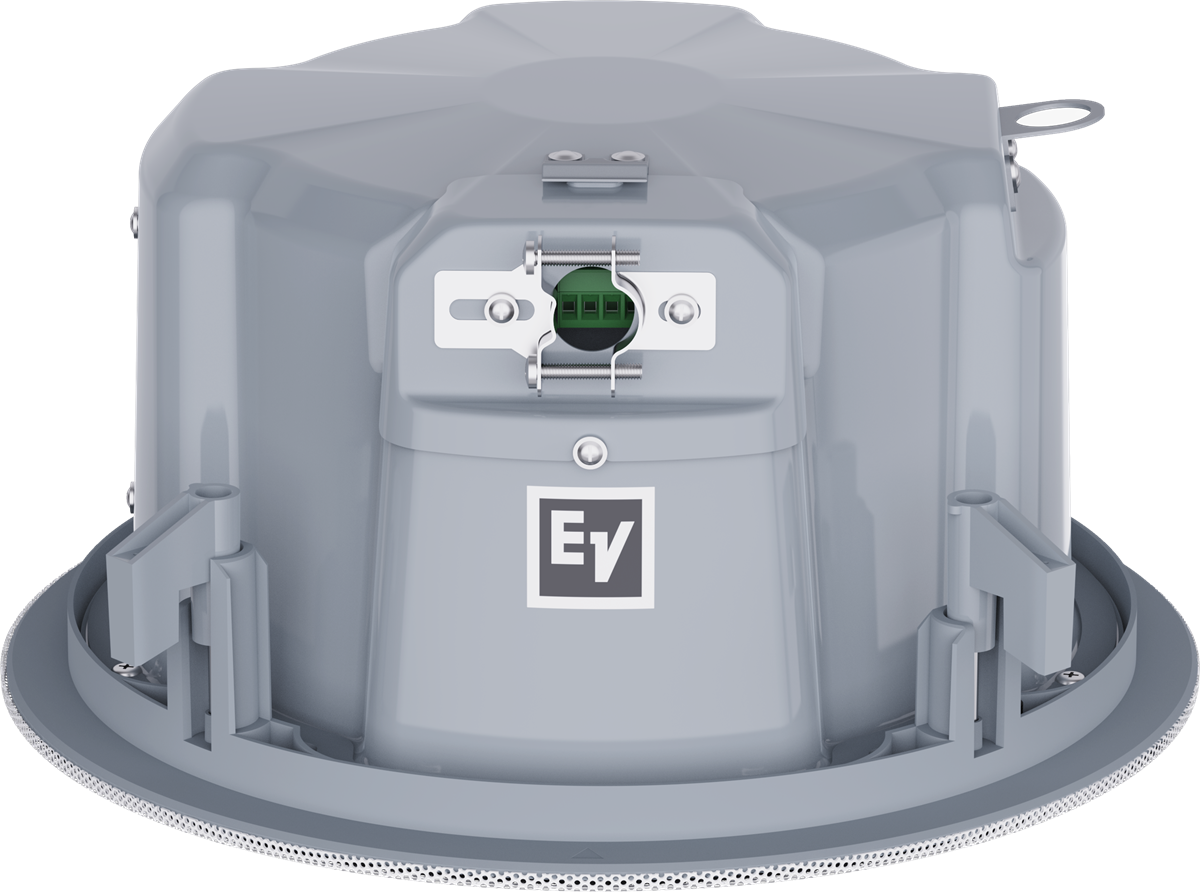

Connector type |
4-pin Euroblock
Input + Pass through |
|
Wire size (AWG) |
12AWG (maximum) |
|
Wire diameter (mm2) |
3.3 mm2 (maximum) |
|
Color |
White; Customized colors |
|
Color (RAL) |
RAL 9003 Signal white |
|
Mounting cutout (in) |
10.7 in |
|
Mounting cutout (mm) |
272 mm |
|
Dimensions (Ø x D) (in) |
11.9 in x 6.1 in |
|
Dimensions (Ø x D) (mm) |
302 mm x 153.8 mm |
|
Mounting depth (in) |
5.9 in |
|
Mounting depth (mm) |
149 mm |
|
Ceiling thickness (in) |
0.5 in - 1.5 in |
|
Ceiling thickness (mm) |
12.5 mm - 38 mm |
|
Weight (lb) 7 |
7.9 lb |
|
Weight (kg) 7 |
3.6 kg |
|
Shipping weight (lb) 8 |
21.4 lb |
|
Shipping weight (kg) 8 |
9.7 kg |
|
IP rating |
IP34 |
|
Weatherization |
Indoor |
|
Operating temperature (°F) |
32 °F – 122 °F |
|
Operating temperature (°C) |
0 °C – 50 °C |
