OUTPUT POWER
|
|
Total rated output power 1
|
3,000
|
|
Number of amplifier channels
|
8
|
|
Load
|
2 Ω
|
2.7 Ω
|
4 Ω
|
8 Ω
|
|
All channels driven equally
|
375 W
|
375 W
|
375 W
|
375 W
|
|
Maximum per channel
|
1.000 W
|
800 W
|
600 W
|
1.000 W
|
|
Bridge
|
750 W
|
750 W
|
750 W
|
750 W
|
|
Direct Drive
|
70 V
|
|
100 V
|
|
|
All channels driven equally
|
375 W
|
|
375 W
|
|
|
Maximum per channel
|
750 W
|
|
1.000 W
|
|
|
Max. output voltage Hi-Z/8Ω mode, per channel
|
145 Vpk
|
|
Max. output current Lo-Z/4Ω mode, per channel
|
33 Apk
|
|
AMPLIFIER
|
|
Voltage Gain
|
|
Lo-Z mode, ref. 1 kHz
|
32 dB, adjustable 20.0 - 44.0 dB
|
|
Input sensitivity, direct drive mode
|
+6 dBu ( 1.55 V), fixed
|
|
THD+N (3 dB below max. AES17, 1 kHz)
|
<0,1 %
|
|
Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω)
|
< -80 dB
|
|
Frequency resposne (ref. 1 kHz, analog in-speaker out)
|
20 Hz to 20 kHz (±1 dB)
|
|
Sampling rate
|
96 kHz internal, Dante 48/96 kHz switchable
|
|
Latency (analog in-speaker out)
|
0.77 ms
|
|
Number of mic/line inputs
|
8
|
|
Gain
|
0 to 60 dB
|
|
Maximum input level
|
+18 dBu
|
|
Phantom power
|
+ 48 V, switchable per input
|
|
Input impedance
|
>10 kΩ
|
|
E.I.N (A-weighted) @ 150Ω
|
-127 dBu
|
|
Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω)
|
|

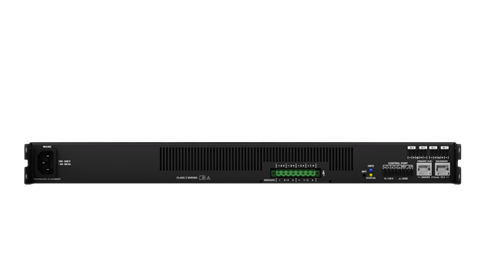

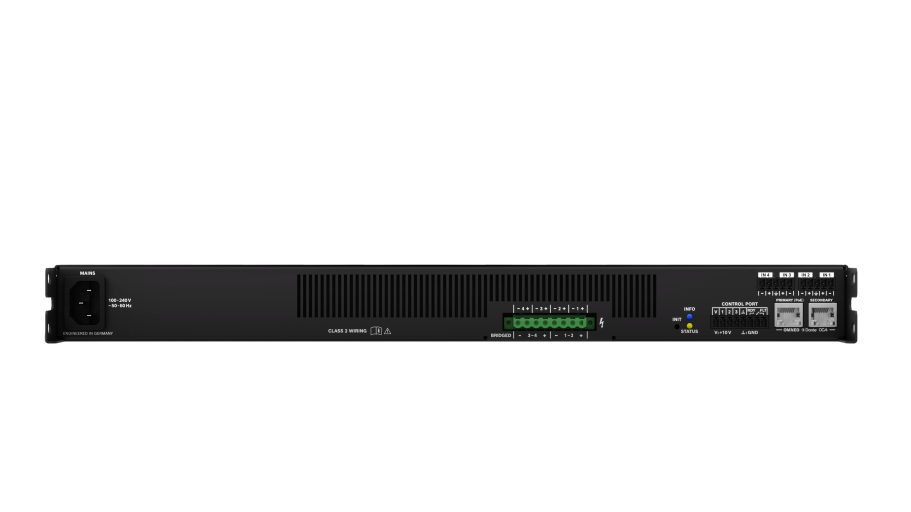

CONNECTIVITY
|
|
Mic/Line inputs
|
4 x 5-pin Euroblock-style, male
|
|
Speaker outputs
|
2 x 8-pin Euroblock-style, 2.5 mm² (12 AWG)
|
|
Network
|
2 x RJ45
|
|
Control port
|
1 x 8-pin Euroblock-style
|
|
Mains power input
|
1 x IEC C14
|
|
NETWORK
|
|
General
|
1000base-T/100base-TX, integrated switch
|
|
Redundancy modes
|
Glitchfree (PRIMARY/SECONDARY), RSTP
|
|
Backup power supply (ghostPOWER)
|
1 x PoE (IEEE802.3af) on PRIMARY port
|
|
Network audio (inputs x outputs)
|
8 x 8, 48/96 kHz, Dante
|
|
CONTROL PORT
|
|
GPIO control port
|
3 ports, switchable: analog in/digital in/digital out
|
|
Analog input range
|
0 V to +13 V, 133 kΩ input resistance
|
|
Digital input limits
|
ON: <1,5 V
|
|
|
OFF: >2,0 V, internal pull-up (10kΩ / 10V)
|
|
Digital outputs
|
ON: output switched to GND, max. 200 mA
|
|
|
OFF: open collector
|
|
Reference voltage output
|
+10V, max. 200 mA, supervised, short circuit protected
|
|
READY/FAULT
|
Galvanic isolated relay, max. 30 VDC/500 mADC
|
|
GENERAL
|
|
Power consumption
|
|
Rated power consumption (1/8 max. output power)
|
575 W
|
|
Eco mode
|
39 W
|
|
Stand-by mode
|
<15 W
|
|
Power requirements
|
100 V to 240 V, 50 Hz to 60 Hz AC
|
|
Power Supply Technology
|
Switching mode power supply with digitally controlled power factor correction
|
|
Protections
|
Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Lim colspan="4"iters, Mains Over-/Under Voltage Protection
|
|
|
|
|
Cooling
|
Front-to-rear, temperature controlled fan, supervised
|
|
Ambient Temperature Limits
|
+5 °C to +40 °C (+40 °F to +105 °F)
|
|
Dimensions
|
483 mm x 44,1 mm x 447 mm
19 in x 1.74 in x 17.6 in
|
|
Weight
|
8,75 kg (19.3 lbs)
|
|
Shipping weight
|
10,6 kg (23.4 lbs)
|
|
|
|
|
|
|
|
|
|
|
