- Discreet size, high performance
- Portrait or landscape mounting options

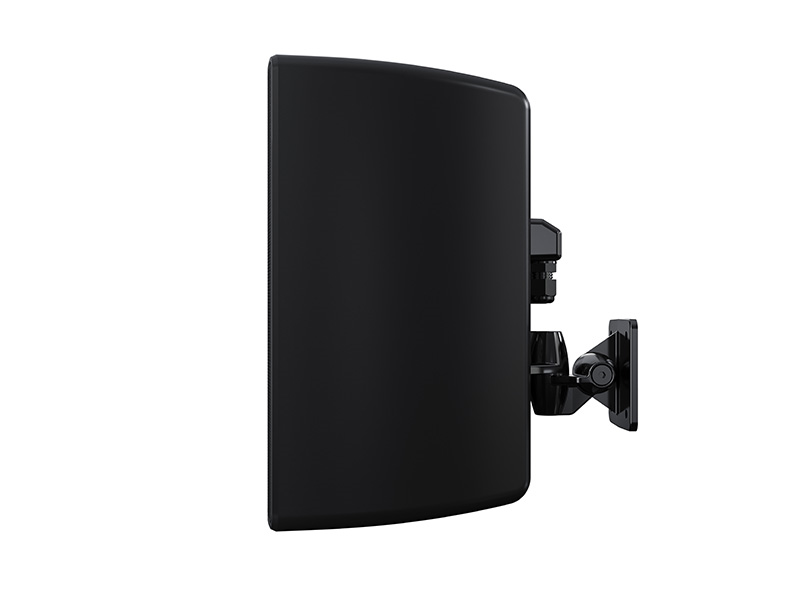

- Wall bracket included
- Max SPL 105dB (continuous) 111dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover

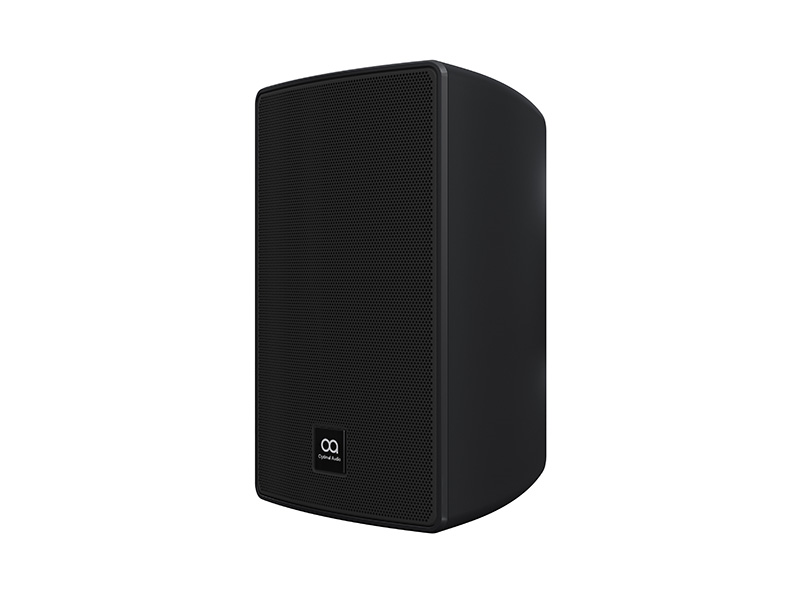

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 5 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
For enhanced bass performance, Cuboid 5 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
Specifications:
TYPE: Two-way, full range, passive 5” loudspeaker
FREQUENCY RESPONSE (with preset): 97Hz–20kHz +/-3dB, -10dB @ 80Hz
DRIVERS: LF: 5.25”(133mm) coated paper, ferrite motor system, HF: 0.75” (19mm) Silk Dome, neodymium motor system
IP RATING: IP54 when used with accessory terminal cover
RATED POWER: 50 W (AES) 200W (peak)
NOMINAL IMPEDANCE: 8 Ohms
SENSITIVITY (1W/1m): 88dB
MAXIMUM SPL: 105dB (cont) 111dB (peak)
CROSSOVER: 2.5kHz
RECOMMENDED HIGH PASS FILTER: 24dB Per Octave @ 70 Hz
DISPERSION (-6dB): 130°H x 120°V
ENCLOSURE: ABS
FINISH: Paint
PROTECTIVE GRILLE: Painted Aluminium
CONNECTORS: 4 pin Euroblock
PIN CONNECTIONS (INPUT): Positive and negative in with link out terminals
FITTINGS: M4 mounting points for wall bracket
DIMENSIONS: (W)155mm x (H)255mm x (D)150mm
WEIGHT: 2.15kg
