Features
-
Full suite of audio controls for up to 8 zones
-
Fully flexible signal routing
-
WebApp interface for easy system configuration and everyday control
-
2 mic, 4 stereo line and 2 HDMI inputs
-
Fully programmable presets and timed events
-
Very competitive pricing

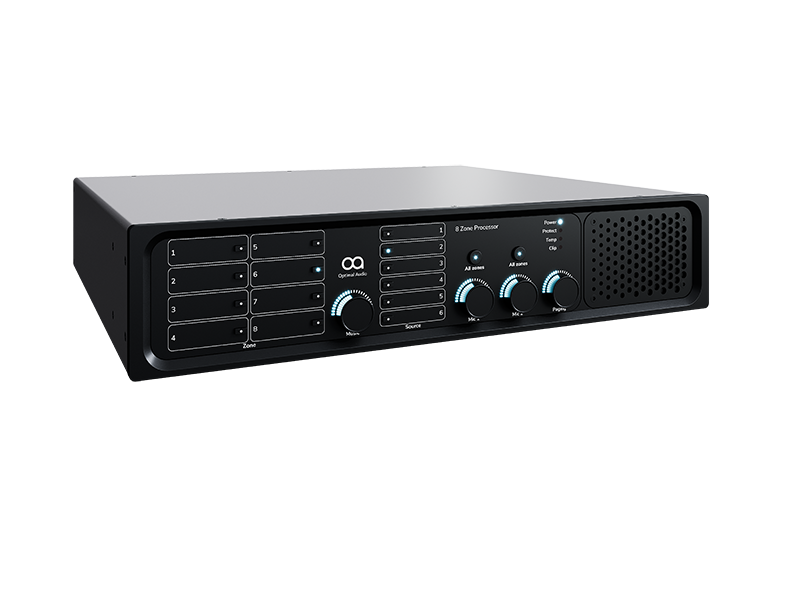

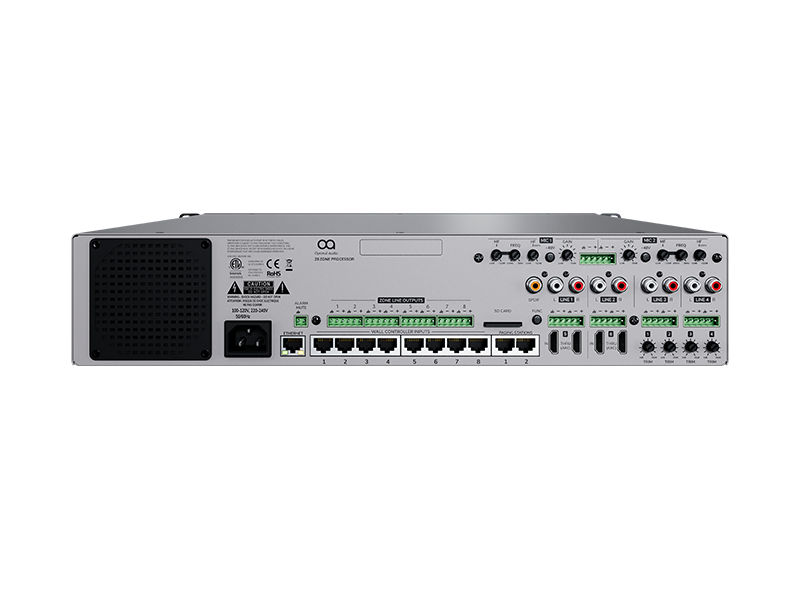

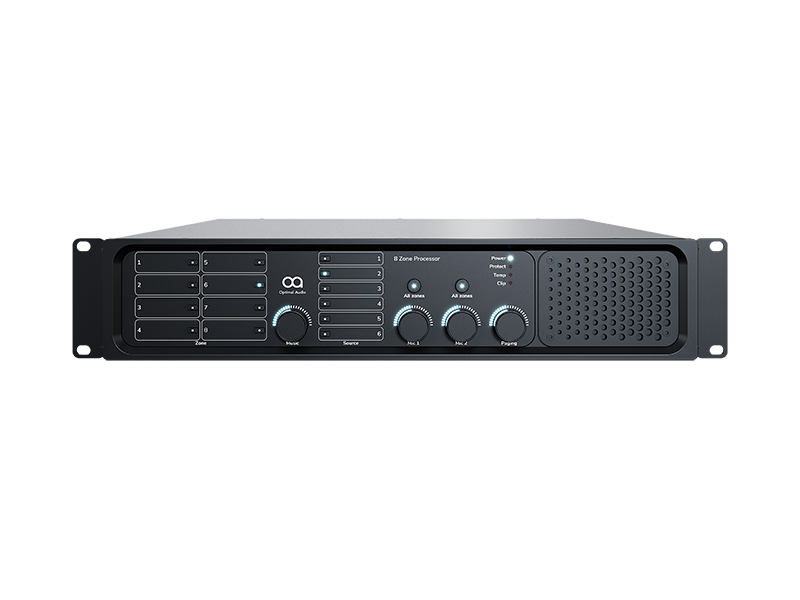

Zone 8 is a zonal audio controller with DSP providing everything required in a single compact unit to become the beating heart of an efficient, high-quality multi-zoned commercial sound system.
It allows the user to independently allocate sources across eight configurable zones, such as a lobby, bar or restaurant, and each zone can be configured to do precisely what is required using the intuitive WebApp. This includes EQs, speaker presets, structured time of day routines and so much more.
Zone 8 features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.
It has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with our ZonePads and SmartAmp series provides a simple, intuitive and cost-effective audio system with superb sound quality.
Specifications
|
TYPE
|
8 zone audio processor with DSP and loudspeaker presets
|
|
MIC INPUTS
|
2 with 48V phantom power, +12dB to +55dB gain
|
|
MIC INPUT PROCESSING
|
Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF shelf @12kHz
|
|
LINE INPUTS
|
4 stereo with +26dB gain trim. SPDIF option on input 1
|
|
HDMI INPUTS
|
2
|
|
LINE OUTPUTS
|
8
|
|
ZONEPAD SOCKETS
|
8
|
|
PAGING INPUTS (CAT 5)
|
2
|
|
LAN ETHERNET100Mbps
|
Yes
|
|
ALARM OVERRIDE
|
Yes
|
|
DIMENSIONS
|
(W) 480mm x (H) 88mm x (D) 400mm
(W) 18.90” x (H) 3.46” x (D) 15.75”
|
|
WEIGHT
|
9.2kg (20.2lbs)
|
