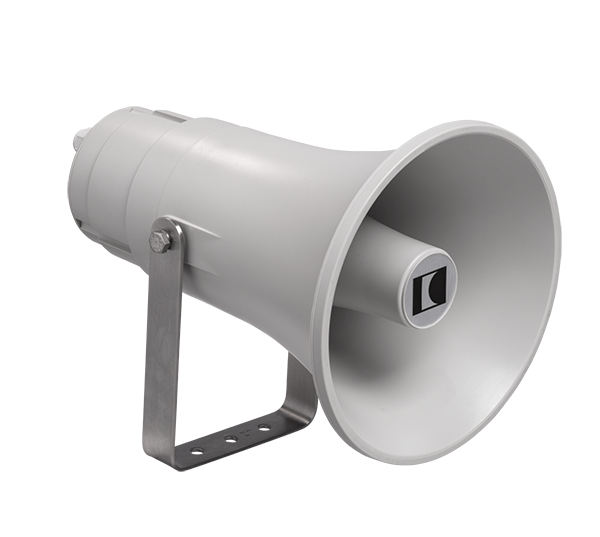

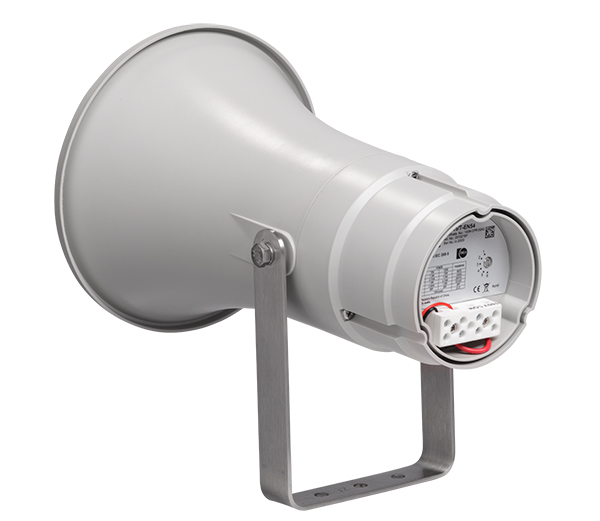

The 15W powered speaker is equipped with a 100V line transformer with 4 power adjustments, also low-impedance operation (20 ohm) is possible. The impact-resistant ABS housing UL94V0 in RAL 7035 guarantees long-term stability. For additional reliability, a ceramic block and a thermal fuse is provided.
The speaker is also secured with the high protection class IP 66 against the security risks of environmental influences. The speaker is compliant with the British Standard BS 5839, Part 8.

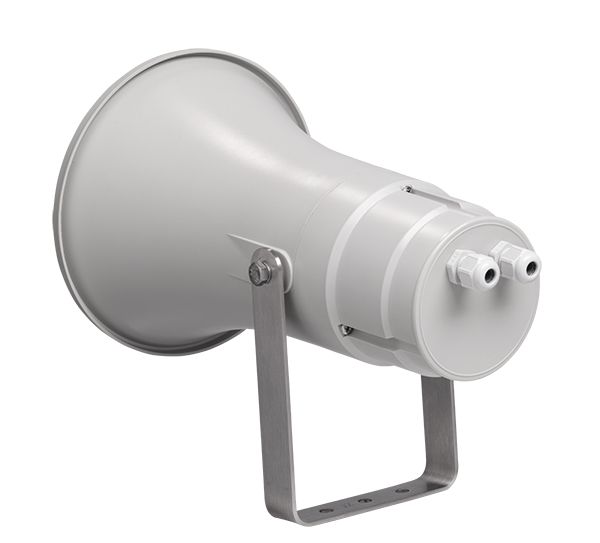

The PG11 cable glands on the back of the speaker allow quick and easy connection.
Included is a U-shaped, stainless steel universal mount for flexible installation. Optionally available is a mast bracket (MB) for about 90 - 200mm mast diameter.
To operate the product according EN 54-24, an equalizer has to be used as described in the user manual.
|
Artikel Nr.
|
20205824-PG
|
|
Produkt
|
DK 15/T-EN54-PG
|
|
Power
|
15/7,5/3,75/1,9 (20) W
|
|
Impedance (100V)
|
667/1333/2667/5263 ohm
|
|
Frequency Range
|
677 - 5.400 Hz
|
|
Frequency Response
|
300 - 13.800 Hz
|
|
SPL 1W/1m, peak
|
108,5 dB
|
|
SPL , 1W/4m, peak
|
96,5 dB
|
|
SPL Pmax/4m, peak
|
108,2 dB
|
|
SPL, rated noise power / 4m
|
93,0 dB
|
|
Sensitivity EN54-24, 1W/4m
|
83,0 dB
|
|
Sensitivity EN54-24, 1W/1m
|
95,3 dB
|
|
Dispersion -6dB, 500Hz
|
h/v 360°
|
|
Dispersion -6dB, 1KHz
|
h/v 110°
|
|
Dispersion -6dB, 2KHz
|
h/v 70°
|
|
Dispersion -6dB, 4KHz
|
h/v 40°
|
|
Connector
|
ceramic block
|
|
Maximum cable cross section
|
8mm²
|
|
Max. cable cross section loop
|
2x2mm²
|
|
Temperature range
|
-25 / +70 C°
|
|
Dimensions
|
209x321 mm
|
|
Type A/B
|
B
|
|
IP Rating
|
IP66
|
|
Weight (net)
|
2,08 kg
|
|
Colour
|
RAL 7035
|
|
Mounting
|
Mounting bracket
|
|
Packing Unit
|
8
|
|
Ref. Nr.
|
003-13
|
|
ID-Code
|
SAA-LS03
|
|
Certificate Number
|
1438-CPR-0242
|
|
EN54 Horn Speaker measurements are done with the use of an equalizer.
|
