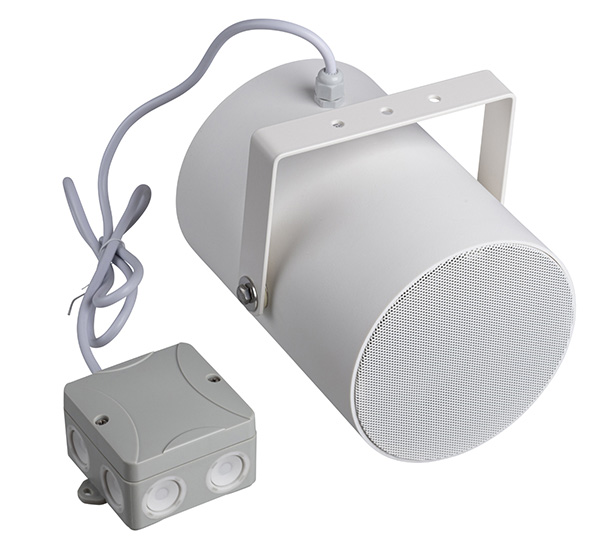

The 10W powered bi-directional speaker is equipped with two 130mm full-range loudspeakers and a 100V line transformer with 3 power adjustments. A robust ABS plastic housing in RAL 9016 and a solid aluminium mounting bracket ensures the permanent installation of this speaker.
For additional reliability, a ceramic block and a thermal fuse are provided in a junction box and the speaker chassis is impregnated against wetness.
The speaker is compliant with the British Standard BS 5839, Part 8.
|
Artikel Nr.
|
20173235
|
|
Produkt
|
DA-P 10-260/T-EN54
|
|
Power
|
10/5/2,5 W
|
|
Impedance (100V)
|
1000/2000/4000 ohm
|
|
Frequency Range
|
100 - 20.000 Hz
|
|
Frequency Response
|
90 - 25.000 Hz
|
|
SPL 1W/1m, peak
|
90,7 dB
|
|
SPL , 1W/4m, peak
|
78,7 dB
|
|
SPL Pmax/4m, peak
|
88,7 dB
|
|
SPL, rated noise power / 4m
|
82,5 dB
|
|
Sensitivity EN54-24, 1W/4m
|
73,6 dB
|
|
Sensitivity EN54-24, 1W/1m
|
85,6 dB
|
|
Dispersion -6dB, 500Hz
|
h / v 2x130° / 2x130°
|
|
Dispersion -6dB, 1KHz
|
h / v 2x170° / 2x170°
|
|
Dispersion -6dB, 2KHz
|
h / v 2x160° / 2x160°
|
|
Dispersion -6dB, 4KHz
|
h / v 2x65° / 2x65°
|
|
Connector
|
ceramic block
|
|
Temperature range
|
-25 / +70 C°
|
|
Dimensions
|
202 x 163 x 170 mm
|
|
Type A/B
|
B
|
|
IP Rating
|
IP56
|
|
Weight (net)
|
1,82kg
|
|
Colour
|
RAL 9016
|
|
Mounting
|
Mounting bracket
|
|
Packing Unit
|
8
|
|
Ref. Nr.
|
020-17
|
|
ID-Code
|
SAA-LS20
|
|
Certificate Number
|
1438-CPR-0388
|
