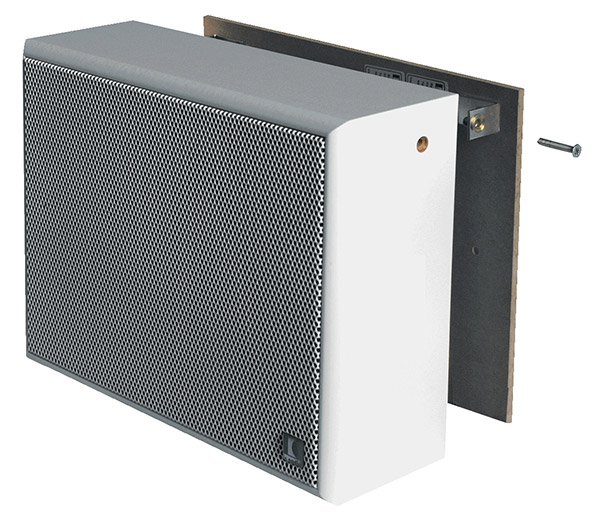

The 6W powered speaker is equipped with a 165mm full-range loudspeaker chassis and a 100V transformer with 3 power adjustments. The high-density, shock-resistant MDF wood housing in white provides a low resonance sound. A sturdy front grille made of steel guarantees enduring stability. For additional reliability, a 2 pin-ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.
The speaker is also secured with the high protection class IP 54 against the security risks of environmental influences.
The speaker is also compliant with the British Standard BS 5839, Part 8.
The quick and easy installation by screws prevents the drop of the speaker if installed on ceilings. Furthermore the sturdy ballproofness qualifies the speaker for the installation in sports facilities and schools.
Product: WA 06-165/T-EN54V
Power: 6/3/1,5 W
Impedance (100V): 1667/3333/6667 ohm
Information Frequency Range: 197 - 21.900 Hz
Information Frequency Response: 172 - 23.500 Hz
Information SPL 1W/1m, peak: 100,6 dB
Information SPL , 1W/4m, peak: 88,6 dB
Information SPL Pmax/4m, peak: 96,3 dB
SPL, rated noise power / 4m: 90,0 dB
Information Sensitivity EN54-24, 1W/4m: 81,0 dB
Information Sensitivity EN54-24, 1W/1m: 93,0 dB
Dispersion -6dB, 500Hz: h=180° v=180°
Dispersion -6dB, 1KHz: h=160° v=160°
Dispersion -6dB, 2KHz: h=125° v=125°
Dispersion -6dB, 4KHz: h=89° v=89°
Connector: 2-pin ceramic block
Maximum cable cross section: 8mm²
Max. cable cross section loop: 2x2mm²
Temperature range: -10/+55C°
Dimensions: 253x194x82 mm
Type A/B: A
IP Rating: IP54
Weight (net): 1,95 kg
Colour: white
Mounting: spring clamp
Certificate Number: 1438-CPR-0231
