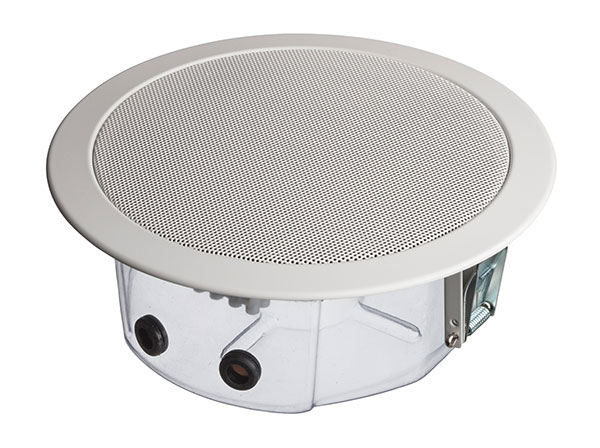

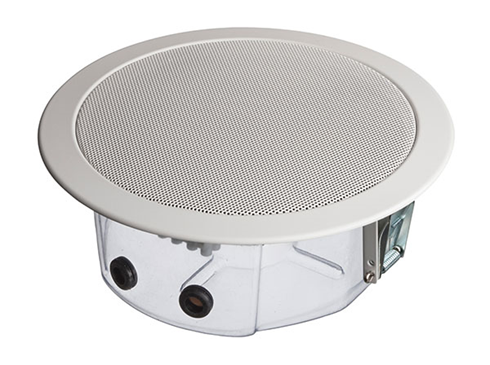

The 6W powered speaker is equipped with a 165mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal similar to RAL 9016 guarantees long-term stability. Thanks to an innovative air flow system, the DL-E provides sound characteristics which are attributed to a conventional bass speaker. An extremely flat construction method allows a low mounting depth of only 70mm, with less than 1 kg product weight. For additional reliability the speaker is impregnated against wetness.
The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Quick and easy mounting with spring clamps and short tension distance. Perfectly suitable for installations where the installation depth is very limited. Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost.

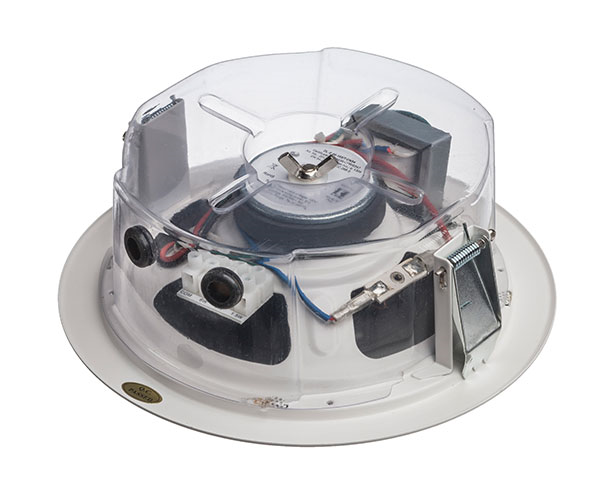

The innovative PET-plastic contact protection is included in the delivery and protected by an European patent (publication no. 2768238).
This speaker is suitable for a ceiling strength of about 3 – 45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.
Product: DL-E 06-165/T-EN54
Power: 6/3/1,5 W
Impedance (100V): 1667/3333/6667 ohm
Information Frequency Range: 300 - 19.300 Hz
Information Frequency Response: 70 - 23.500 Hz
Information SPL 1W/1m, peak: 100,2 dB
Information SPL , 1W/4m, peak: 88,2 dB
Information SPL Pmax/4m, peak: 95,9 dB
SPL, rated noise power / 4m: 85,0 dB
Information Sensitivity EN54-24, 1W/4m: 79,2 db (plastic), 78 db (metal)
Information Sensitivity EN54-24, 1W/1m: 91,2 dB
Dispersion -6dB, 500Hz: plastic/metal 180°
Dispersion -6dB, 1KHz: plastic/metal 180°
Dispersion -6dB, 2KHz: plastic/metal 135°
Dispersion -6dB, 4KHz: plastic/metal 60°
Connector: 4-pin screw terminal
Maximum cable cross section: 4,9mm²
Max. cable cross section loop: 2x1,2mm²
Temperature range: -10/+55°C
Dimensions: 199x72 mm (plastic), 199x96 mm (metal)
Type A/B: A
IP Rating: IP21
Weight (net): 0,72 kg (plastic), 0,92 kg (metal)
Colour: RAL 9016
Mounting: spring clamp
Ceiling Cut-out: 166 mm
Certificate Number: 1438-CPR-0347
