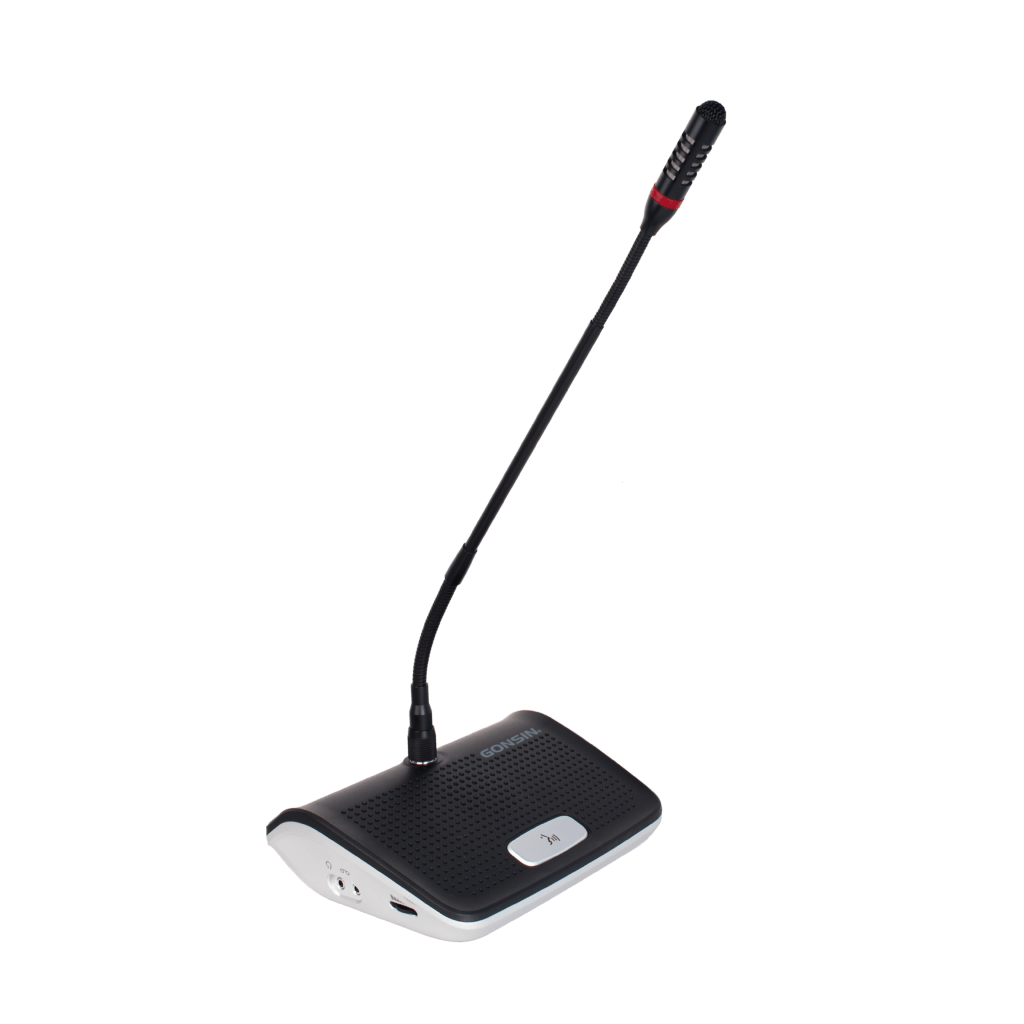

TL-3300 Desktop Digital Conference System
TL-3300 digital conference system allows the delegate to speak, request to speak and listen to the speech. Each discussion unit comes with headphone jack and volume control for the delegate to listen to the floor audio, and adjust volume level for comfortable listening. 1 to 4 delegate microphones can be activated at the same time.
Main Features:
◆ Highly resistant to mobile phone interference.
◆ Supports HD video camera tracking.
◆ Multiple chairman /vice-chairman units are allowed.
◆ Pluggable gooseneck microphone.
◆ Easily hidden unit connecting cables.
Basic Functions:
◆ Selectable microphone modes: AUTO / FIFO / OPERATOR/ Request(with software).
◆ Unlimited number of chairman microphones and vice chairmand microphones.
◆ System supports hot plugging.
◆ Three types of detachable gooseneck microphones.
◆ Press key to register with software.
◆ Control the speaking time with software.
◆ Floor audio listening via headphone or built-in loudspeaker.
◆ Attendance registration: key press and supplementary registration( with software).
◆ Units come with recording output.
◆ Chairman unit can override/mute all the active delegate units.
◆ Supports automatic video camera tracking with preset panoramic position.
Technical Specifications:
Mounting type: Tabletop
Frequency response: 20Hz-20KHz
SNR: ＞96dB
Max SPL: 125 dB (THD<3%)
Dynamic range: ＞85dB
Sensitivity: -46dB±4dB
THD: <0.05%
Power input: 24V
Microphone length: Standard 410 mm, Optional 310/510mm
Headphone jack: Mono 3.5mm
Internal loudspeaker: 4Ω/3W
Weight: 0.75 kg
Dimensions: 190×162×60 mm (W×D×H)
Operating temperature: 0~45℃
Storage temperature: -20~50℃
