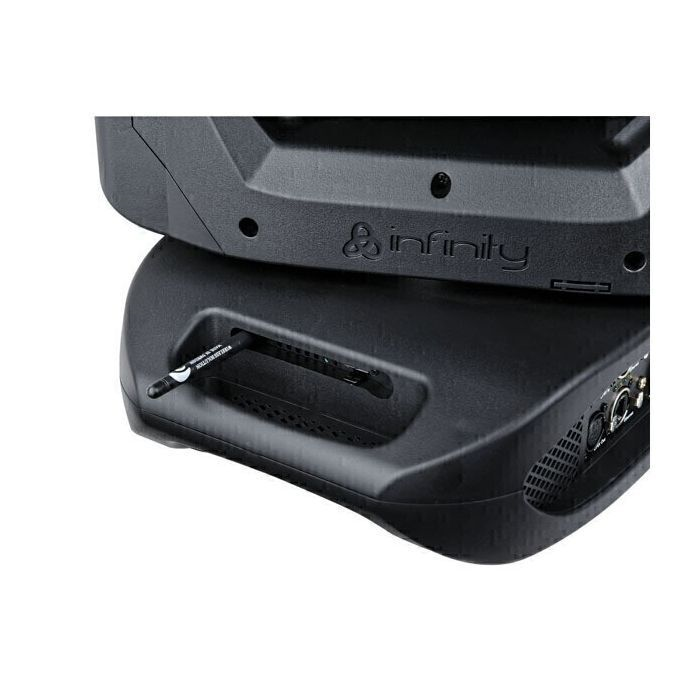

For the Furion Series, designed by professionals for professionals, Infinity has developed a new advanced technology to get the best possible performance and motor control that allows you to make both very fast and very slow, precise movements. You no longer have to choose between fast or slow mode. All Furion luminaires are equipped with a gravity sensor that not only controls the orientation within the menu, but also automatically reverses the Pan movement if desired. A very useful setting for setups where different units are used standing or rigged. Furion excels in a state of the art 16-bit LED dimming that enables flicker-free dimming to the lowest possible value, but also recognizes when the user needs a flash immediately. The 16-bit technology makes the positioning of prisms and gobos very accurate, and controlling all the dynamic effects these devices have to offer is a piece of cake. A user-friendly, battery-based, touchscreen menu provides easy addressing to control all desired settings. Some of the features found on every Furion model are: WMDX by Wireless Solution, Artnet, sACN & RDN. Furion stays connected through the use of Ethernet inputs and outputs, sturdy Neutrik Powercon True1 and Neutrik 5p DMX connectors. User-defined channel modes are also standard on each unit. You can even perform a quick diagnostic check while the unit itself is still in the flight case. If you're looking for a true workhorse that delivers every time and looks great while doing it, the name is Furion.

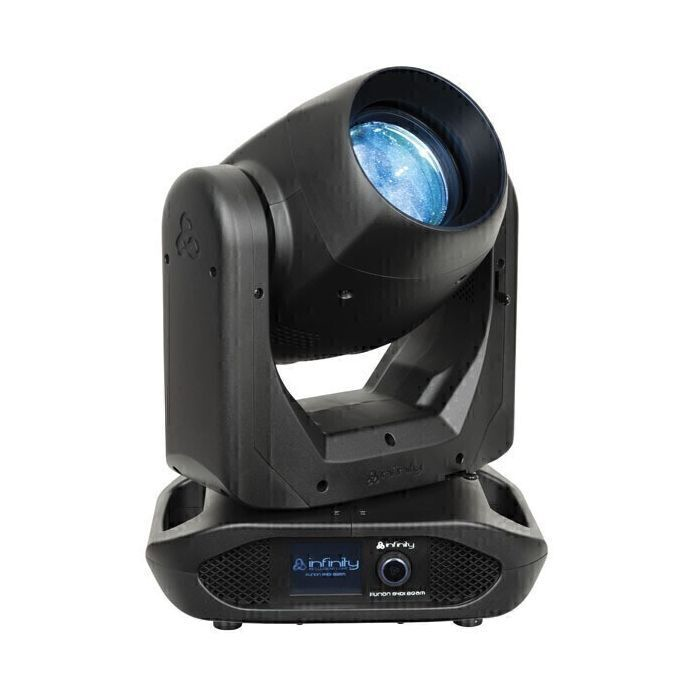

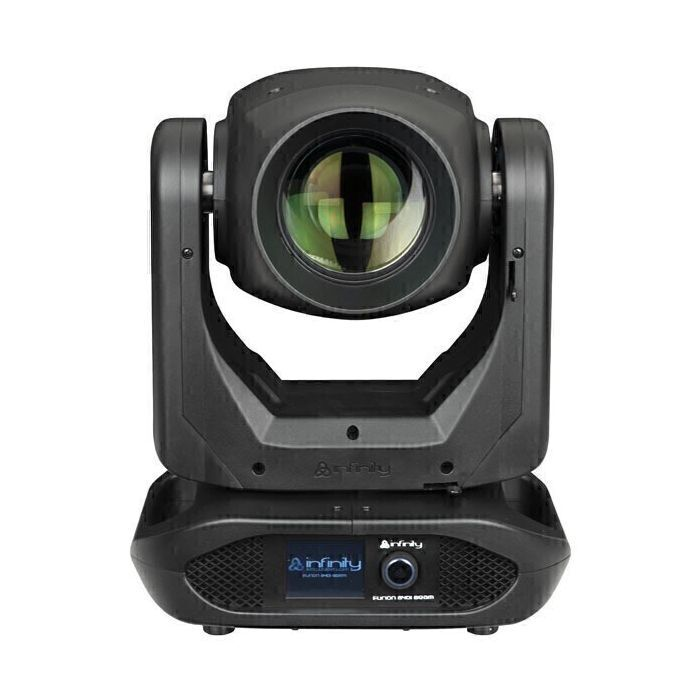

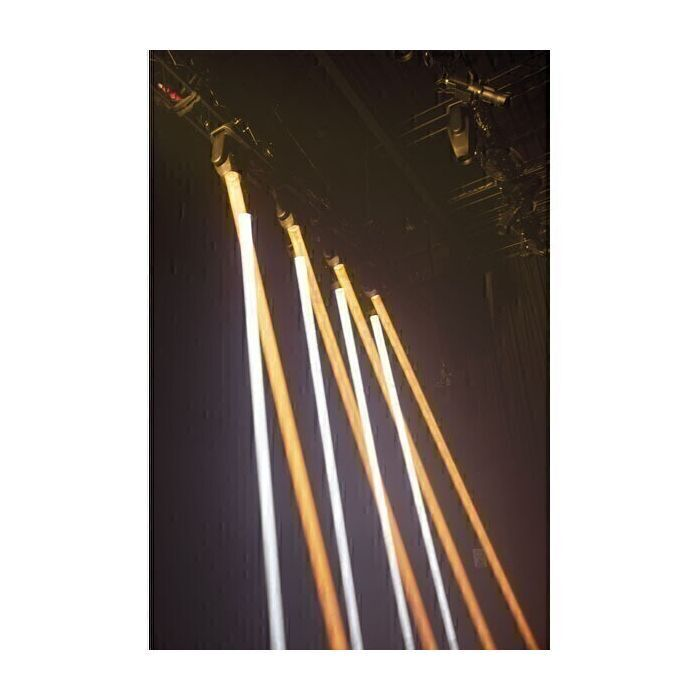

The Infinity Furion B401 Beam. A versatile moving head with a powerful Osram Sirius HRI 230W 7R as a light source. Like the rest of the family, the B401 is equipped with extremely accurate and fast zoom motors that can produce the 4 ° beam at lightning speed. The Furion B401 is equipped with 17 metal gobos that create amazing effects using the 2 prisms. The most interesting feature that really defines the Furion B401 is the Color bump wheel. The Color Bump wheel brings the total of dichroic filters to 14+ white. With this amount of dichroic colors, switching between different single colors or creating a huge amount of split or bump colors is very easy, very fast and accurate. The 14 dichroic colors in the Furion B401 have no fixed positions making them very flexible in generating the desired color in no time. In addition to the choice to be able to bump between the colors, the amount of white in the light beam can also be determined.
Type of light source Discharge
Number of light sources 1
Light source power 230 W.
Lifespan 2500 h
Fitting E20.6
Lumen total 18200 lm
CCT 7600K
Warm-up time light source 3 min
Light source restart time 5 min
Beam angle circular maximum 4 °
Frost Yes
Focus Motorized
Control mode Auto, DMX, Master Slave
DMX channels 16, 18, 23
Protocols Art-Net, DMX, sACN
Wireless Wireless DMX

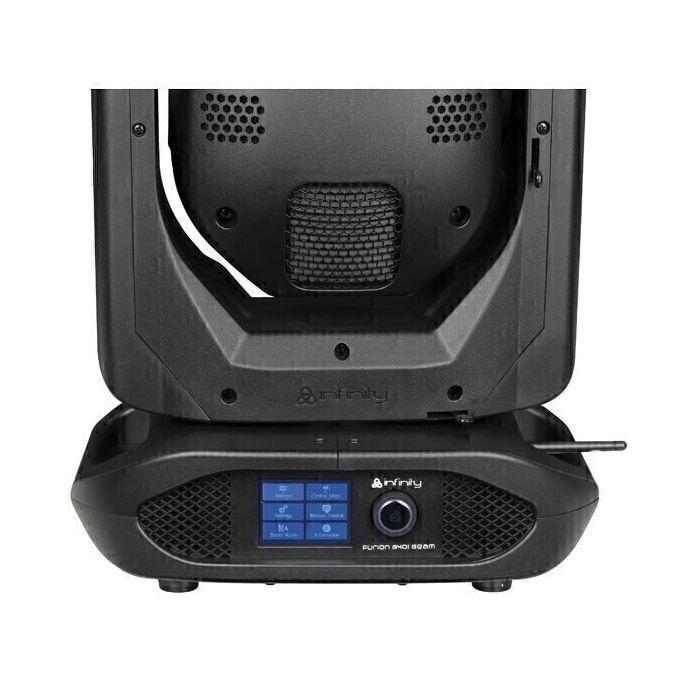

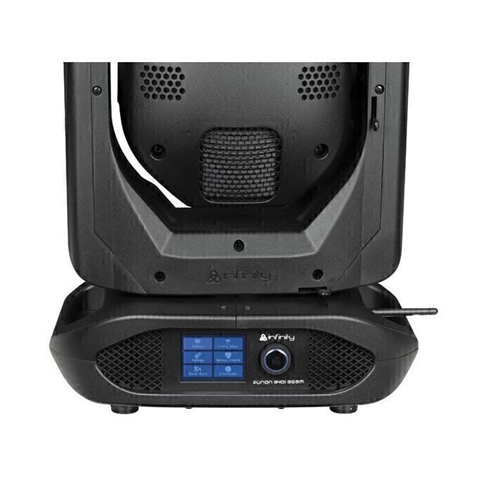

Screen Battery, Gravity Sensor, LCD, Touch
Dimmer resolution 16 bit
Focus resolution 16 bit
Dimmer 0-100%
Strobe 0-20Hz
Shutter Yes
Prism 1 5 Facet, Linear
Prism 2 16 Facet, Circular
Prism overlay Yes
Prism index & rotation Yes
Color system Color Wheel
Color wheel index and rotation Yes
Dichroic color wheel 1 14 + Open
Dichroic color wheel 2 14 + Open
Gobo system Metal
Gobo wheel index & rotation Yes
Gobo wheel 1 17 + Open
Pan 540 °
Tilt 270 °
Pan / Tilt resolution 16 bit
Input voltage 100-240 VAC 50-60Hz
Power consumption 402 W.
Fuse 7 A.

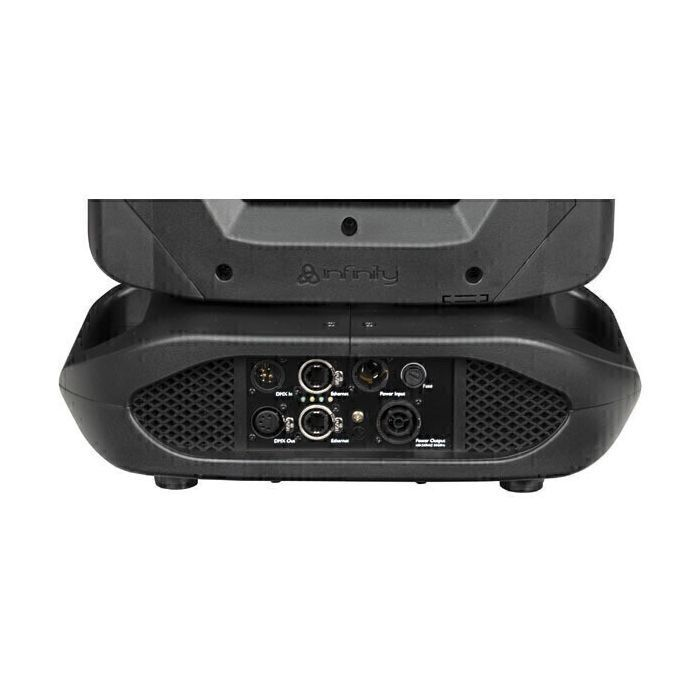

Power connector in PowerCON True 1 In (Male)
Power connector from ProPower True 1 Out (Female)
DMX connector XLR 5P In / Out
DMX connector in XLR 5P
DMX connector from XLR 5P
Data connector in RJ45
Data connector from RJ45
Length (mm) 519 mm
Width (mm) 380 mm
Height (mm) 284 mm
Weight 21 kg
IP value IP20 (indoor use only)
Housing Metal, Plastic
Color Black
Cooling Axial fan

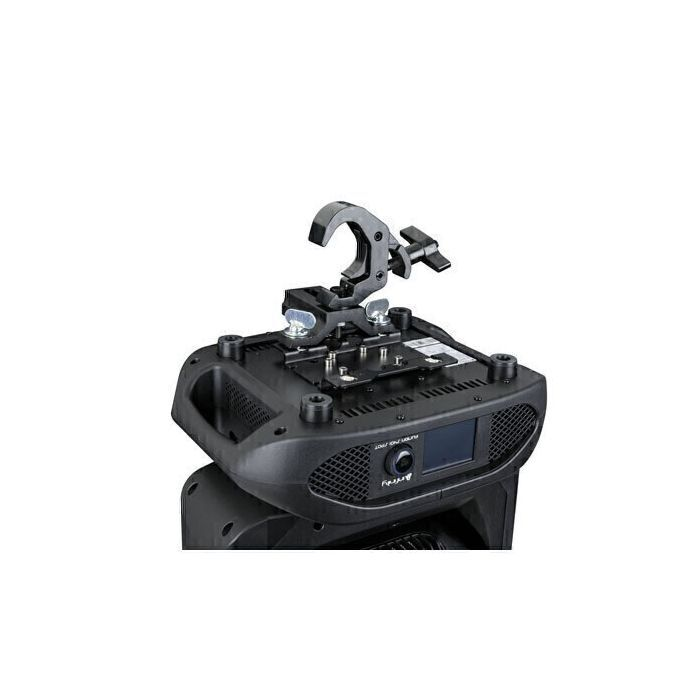

Mounting options Quick Lock
Safety cable attachment point Yes
Maximum ambient temperature 40 ° C
Maximum surface temperature 60 ° C
Minimum distance to objects 12 m
