DETAILS

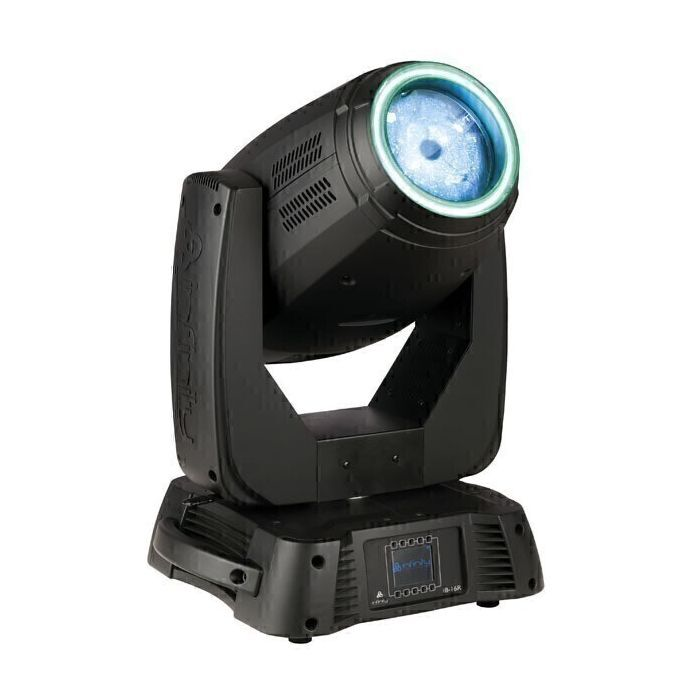

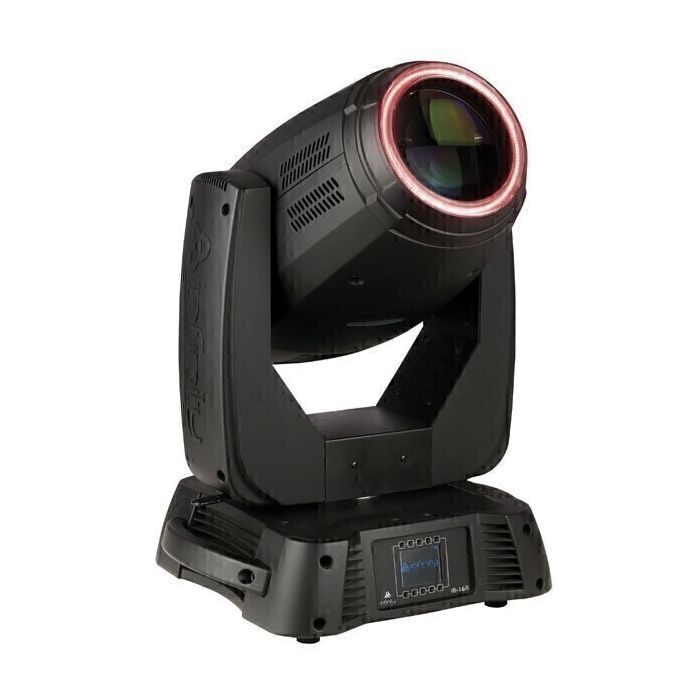

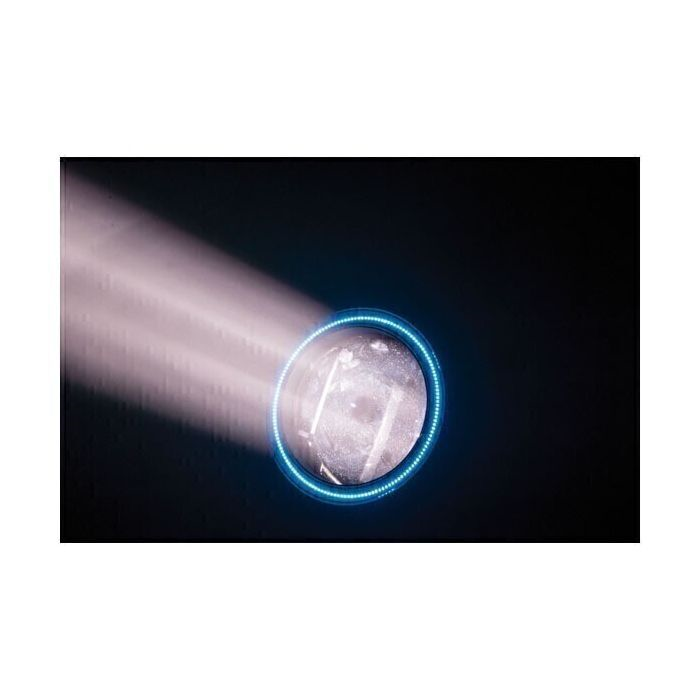

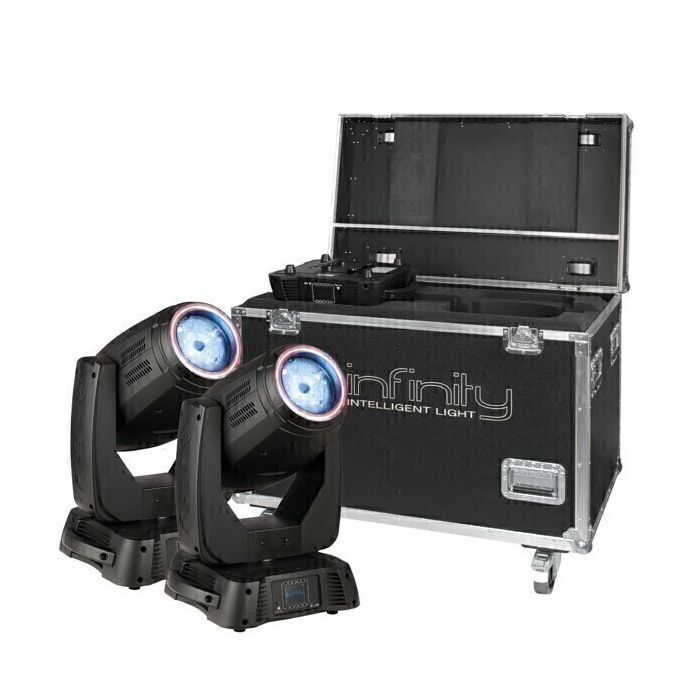

In terms of performance and versatility, the iB-16R is absolutely unbeatable. It is equipped with a powerful 330W Osram Sirius gas discharge lamp that can generate a beam with an angle of 1 ° to 19 °. This makes the moving head extremely versatile, as it can be used both as a spotlight and as a spot. The large front lens is framed by an RGB ring, with which every light show can be enriched with unusual accents.
If the zoom function is controlled via DMX, the gobo always remains in focus (auto focus). However, the focus can also be controlled individually. The iB-16R is also equipped with two individual rotating prisms, which can also be used to create overlapping effects. The moving head is equipped with two gobo wheels (9x glass, rotating + open, 14x metal + open) and a color wheel (13 + open).
SPECIFICATION
Light source: Osram Sirius, 330W, X8, 8000K
Lamp socket: E20.6
Beam angle: 1 ° to 4.5 (beam mode) °
3 ° to 10 ° (spot mode)
Electrics:
Input voltage: 100 to 240 V AC 50 / 60Hz (automatic range selection)
Power consumption: 522W
control
On-board: battery-operated color display with gravity sensor
Mode: DMX, Auto, Master / Slave
Control protocol: DMX-512
Tax Personality: Advanced 25ch / Basic 18CH
Optical system
Dimmer: 0-100% mechanical
Strobe: 0-20Hz
Focus: Motorized
Zoom: (Beam mode) 2.5 to 8 °
5 ° to 19 ° (spot mode)
Prism 1: 8 facet rotating prism
Prism 2: 5 facet linear rotating prism
Frost: Yes
Movement:
Pan: 540 °
Tilt: 260 °
Pan / Tilt resolution: 16-bit
Special: Pan / Tilt, Color / Gobo change blackout, user selectable pan / tilt range, 540 ° / 360 ° / 180 ° / 90 ° reverse pan / tilt movement
Gobos & colors
Gobo wheel 1: 9 + open (9 glass), rotating, exchangeable, indexing, slot-n-lock
Gobo wheel 2: 13 + open (14 metal), continuous scroll with variable speed.
Gobo function: Gobo flow effect, gobo shake.
Colors: 13 + white, split colors continuous scrolling at variable speeds
Color effect: split colors rainbow flow effect
Physically
Color: Black
Housing: made of metal and plastic flame retardant

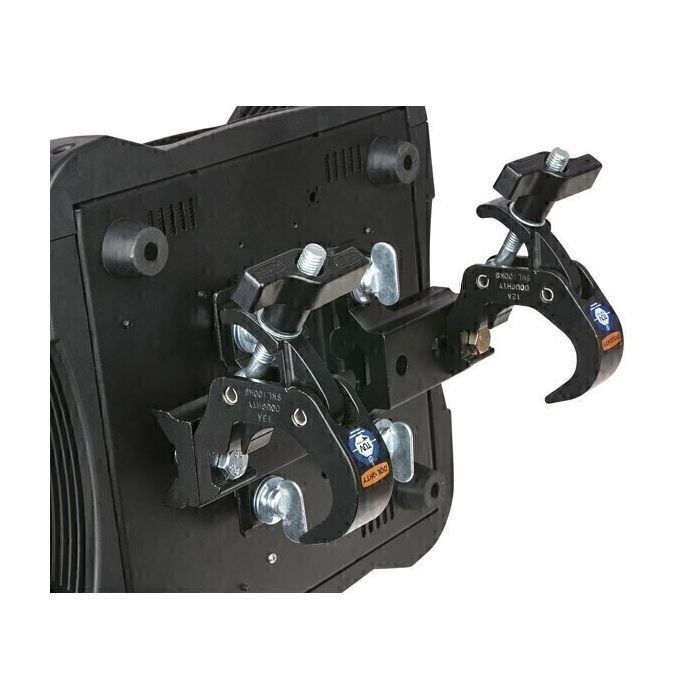

Screw: quick lock

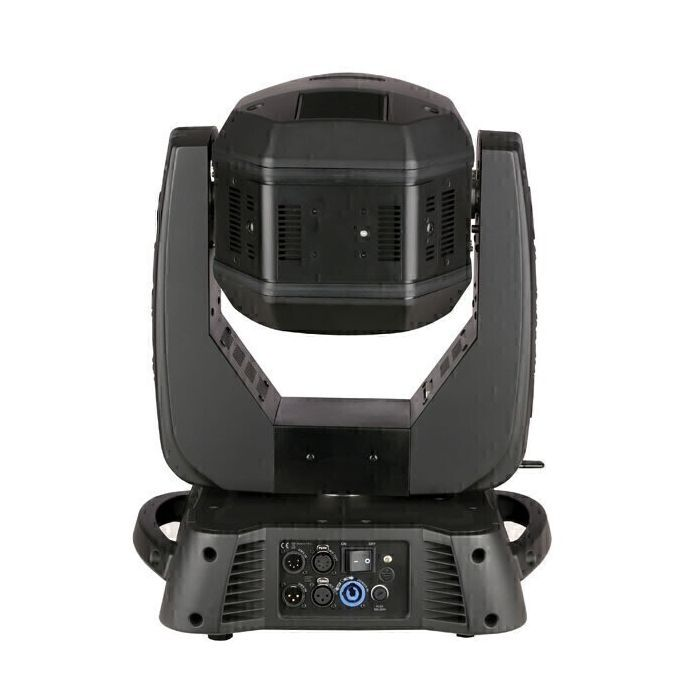

Fixture connection: XLR 3 & 5p data in / out, Powercon input
Dimensions: 410 x 327 x 638mm
Weight: 25.1kg
Certification and Security
Approval mark: CE
Max ambient temperature: 45 °
Minimum distance between objects: 23m
