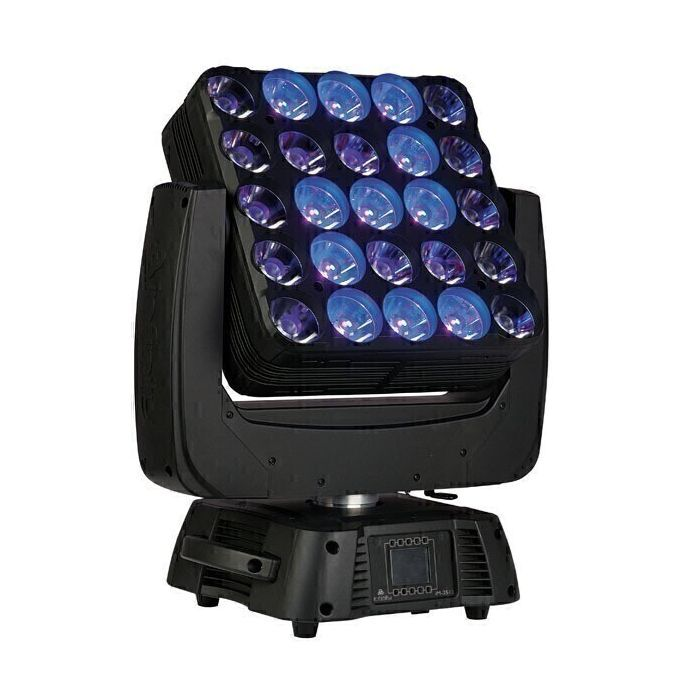

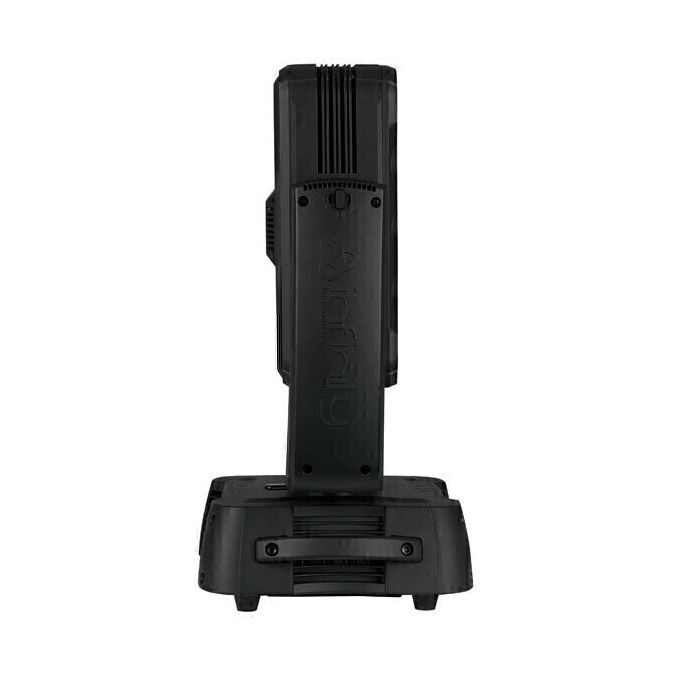

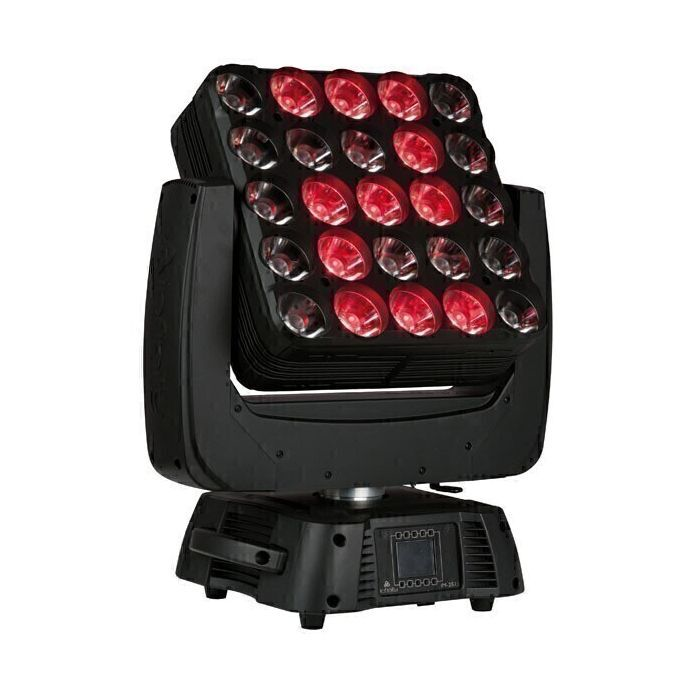

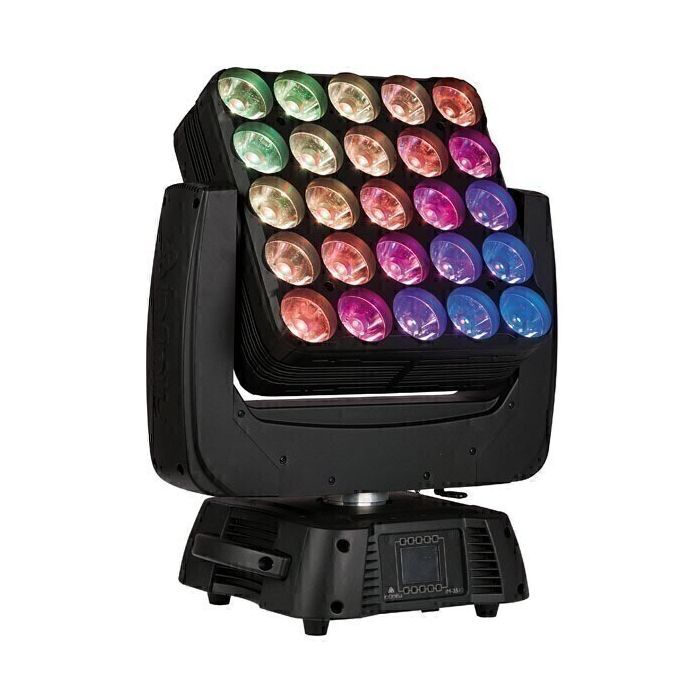

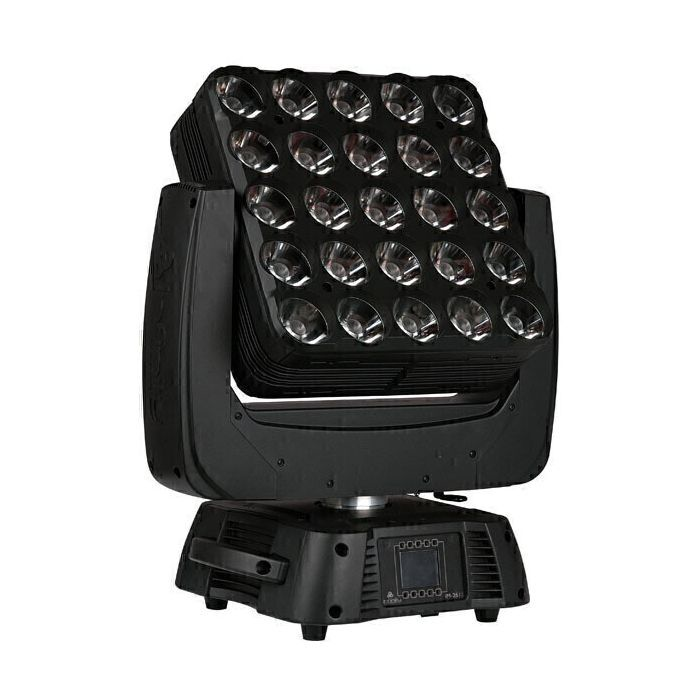

The Infinity® iM-2515, 5x5 Matrix, is an absolute highlite within this flagship series and should be part of any professional show!
This fully pixel controllable matrix fixture, with continuous rotating on both pan and tilt, offers endless creative possibilities to lighting designers.
25 Osram O-Star 15W RGBW LEDs, combined with high-grade optics, will guarantee a palette of beautiful colours and a high light output. High torque motors ensure fast movements and at a beam angle of just 4.5°, its beams are solid and precise.
Whether you want to create dynamic effects, breath-taking visuals or perfect solid beams, the Infinity® iM-2515 is the fixture that will help you achieve it all!
-
4.5° high grade optics
-
Full Pixel control
-
Continious Pan & Tilt rotating
-
5x5 RGBW Matrix
-
Selectable RGBW or CMY colour mixing
-
Combined Artnet & DMX contol
SPECIFICATIONS
Output:
-
Lumen: 11.700
-
Beam Angle: 4.5°
-
Light Source: Osram Ostar 25x15W RGBW 4-in-1
Electrical:
-
Input voltage: 100~240VAC, 50/60Hz
-
Power consumption: 450W at full output
Control:
-
On Board: Battery powered full colour display including gravity sensor
-
Mode: DMX, Auto, Master/Slave
-
Control protocol: DMX-512, Artnet
-
Control personality: Advanced 123 ch / Basic 23ch / Artnet+Dmx 100+15
-
Wireless DMX: optional available
Optical system:
-
Dimmer: 0-100%
-
Dimmer curves: Linear, Square, I-Square, S curve
-
Dimmer speed: Smooth, Fast
-
Colour balance: Separate RGBW adjustment
-
Strobe 0-20Hz
Movement:
-
Pan: 540° and continuous
-
Tilt: 270° and continuous
-
Pan/Tilt resolution: 16 bit
-
Special: Pan/Tilt change black out, User selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement.
Physical:
-
Colour: Black
-
Housing: Metal & Flame retardant plastic
-

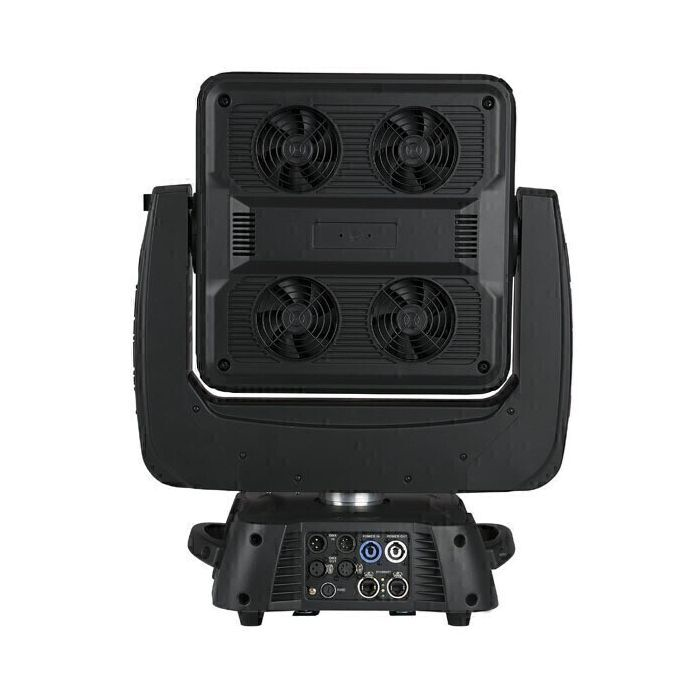

Fixture connections: XLR 3&5p Data in/out, Powercon in- output
-
Dimensions: 470 x 295 x 580 mm
-
Weight: 22Kg
Certification and Safety:
-
Certification: CE
-
Max. ambient temp: 40°
