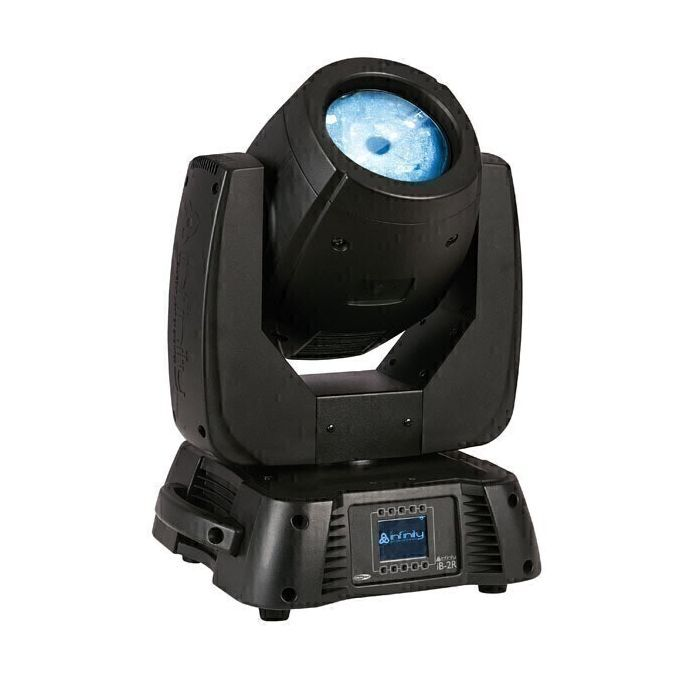

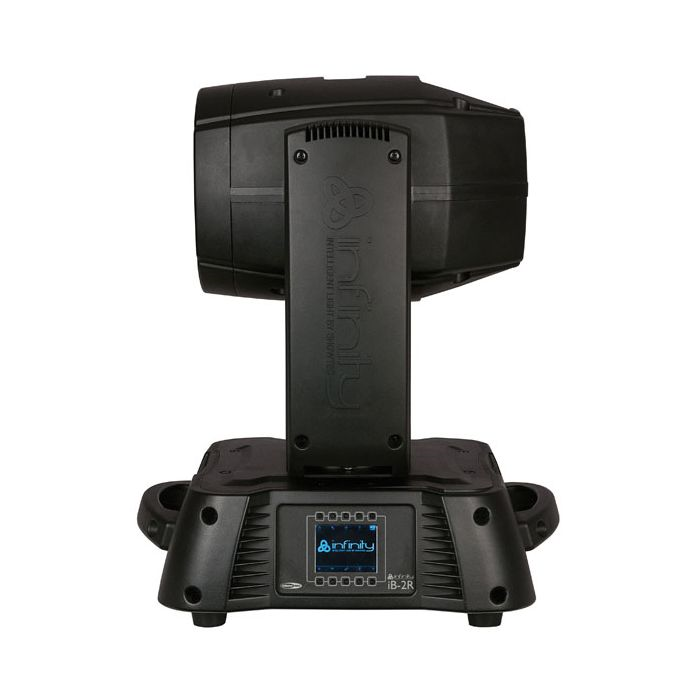

Razor-sharp beams, fast movements, professional functions and still affordable. These are the key features of the iB-2R. The iB-2R is equipped with a Osram Sirius HRI-132W lamp (2R) (included) and is packed with great features.
It has a ultra-fast gobo wheel containing 17 metal gobos. The color wheel packed with 14 colors ensure rich and vivid colors in any venue.
Furthermore it has a 8 facet rotating prism as well a linear rotating prism. Both prisms can be used together for extra dramatic effects.
Specifications
Lamp
Light Source: Osram Sirius HRI 132W (2R)
Lamp socket: E19
Color temp.: 9200K
Beam angle: 3°
Electrical
Input Voltage: 100-240 VAC
Power consumption: 265W
Control

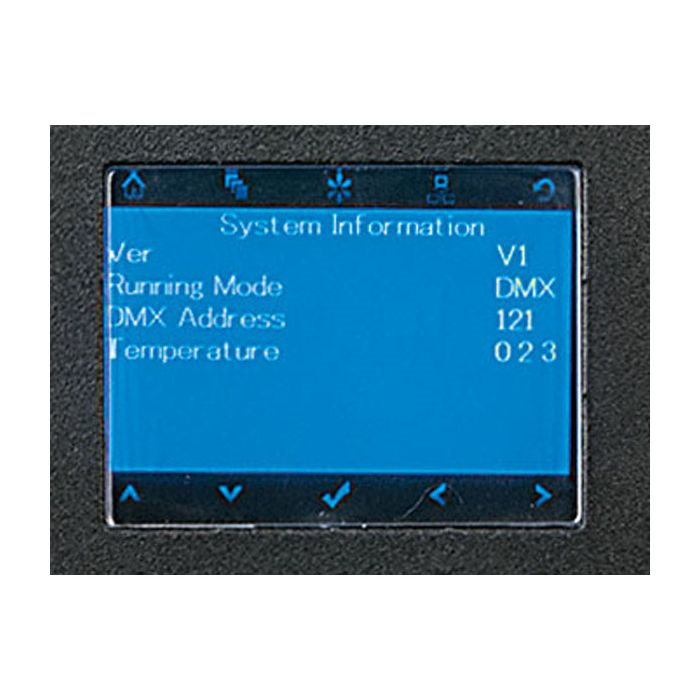

On-Board: Battery powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Mode: DMX, Auto & Master/Slave
Control Protocol: DMX512
Control Personality: Advanced 19ch /Basic 15ch
Wireless DMX: optional available
Optical system
Dimmer: 0-100% Mechanical
Shutter: 0-20Hz
Focus: Motorized
Prism 1: 8-facet rotating prism
Prism 2: Linear rotating
Frost: No
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, Color,Gobo change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°/90°, Reverse Pan / Tilt movement
Gobos & Colors
Gobowheel: 17 Metal gobos
Gobo functions: Gobo-flow effect,Gobo shake
Colors: 14 dichroic-filters + white
Color functions: Split colors, Rainbow-flow effect
Physical
Color: Black
Housing: Metal & Flame-retardant plastic
Screws: Quick lock

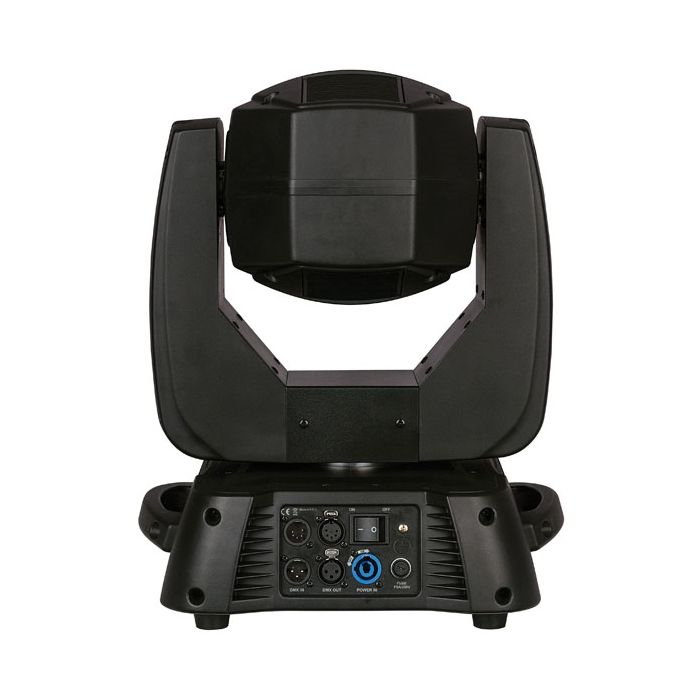

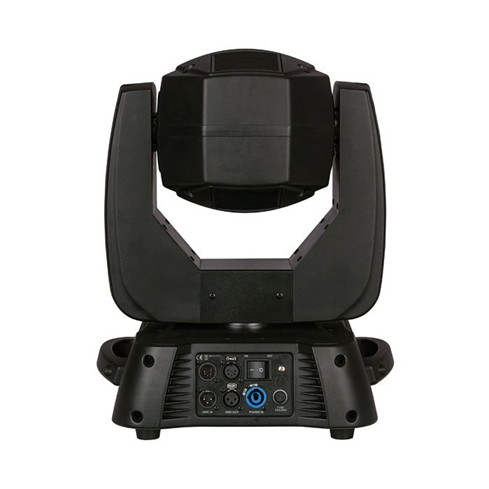

Fixture Connection: XLR 3&5p Data in/out, Powercon input

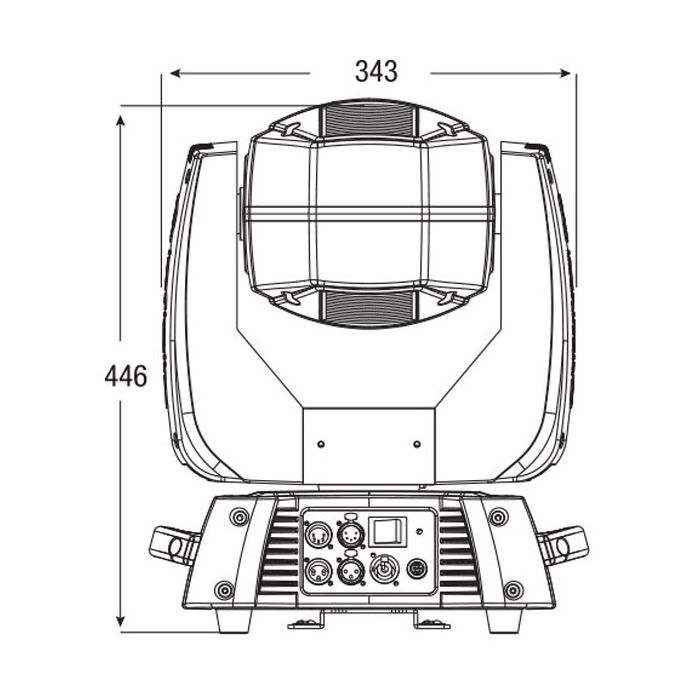

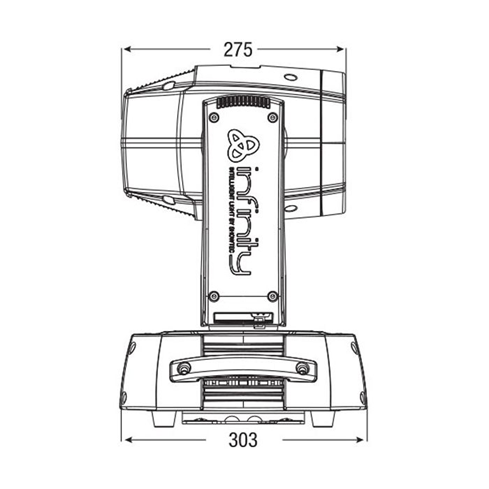

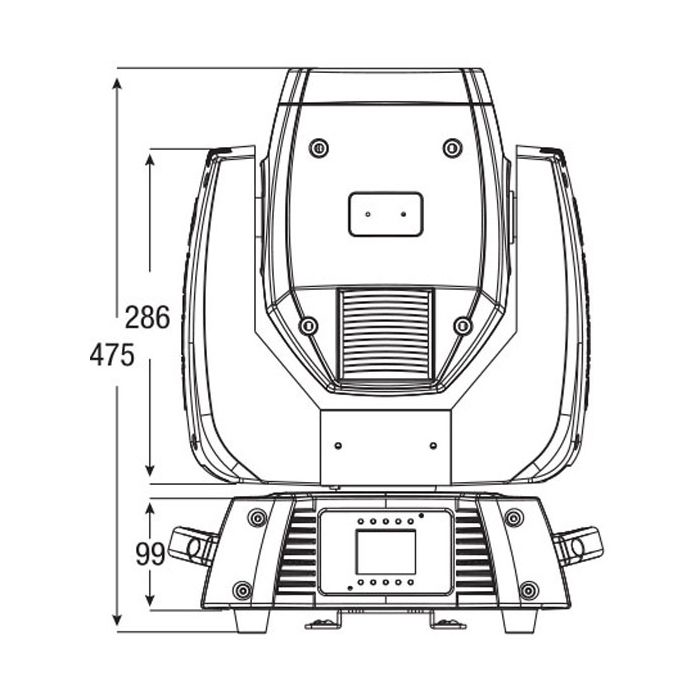

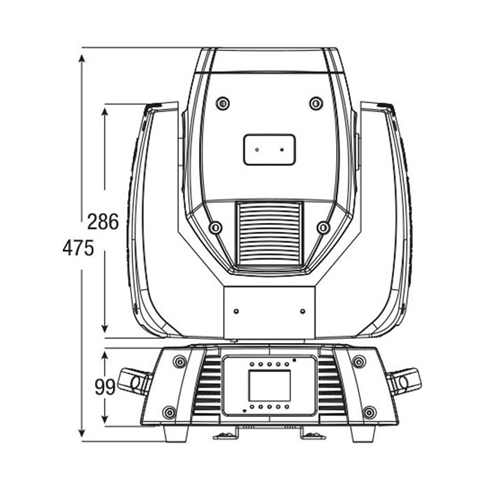

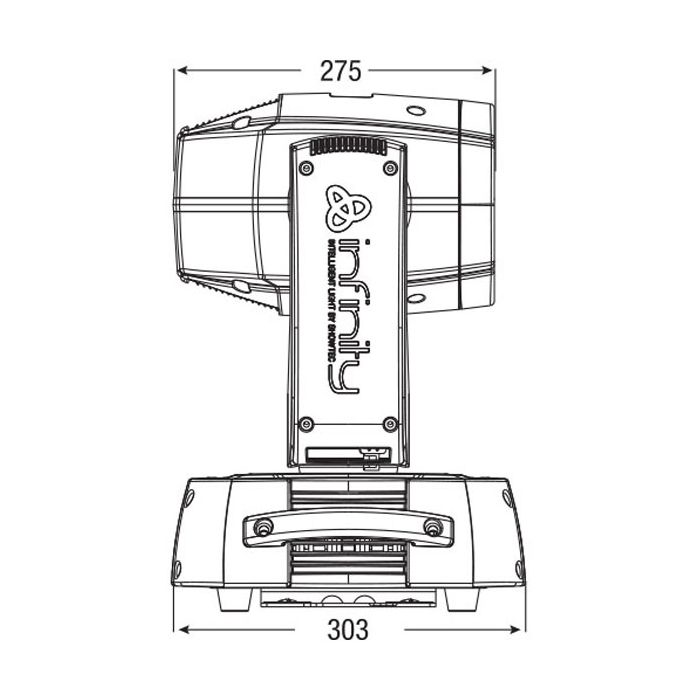

Dimensions (WxDxH): 303 x 366 x 475mm
Weight: 17,5 kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
Minimum distance objects: 6,5m
