PRODUCT DESCRIPTION
For the Furion series, designed by professionals for professionals, Infinity has developed a new advanced technology to achieve the best possible performance and the best control with which you will be able to produce very fast as well as very slow and precise movements. You no longer have to choose between fast or slow mode. All Furion devices are equipped with a gravity sensor which not only controls the orientation within the menu but, if desired, automatically reverses the Pan movement. A very ingenious setting for setups where various units are used in free-standing or hanging. Furion excels in a latest generation 16-bit LED dimming that avoids possible flickering down to the lowest possible value, but also recognizes when the user needs an instant flash. Thanks to 16-bit technology, positioning of prisms and gobos becomes very precise, as well as controlling all the dynamic effects these units have to offer is a breeze. An easy-to-use, battery-backed, touchscreen menu ensures easy interfacing to set all desired functions. Some of the features that can be found on each Furion model are: WMDX by Wireless Sweden Solutions, Artnet, sACN & RDN. Furion stays connected through the use of Ethernet inputs and outputs, robust Neutrik Powercon True1 and Neutrik 5p DMX connectors. User-defined channel modes are also standard features on each unit. A quick diagnostic check can also be performed while the unit itself is still in the flightcase. If you are looking for a real workhorse, which offers you a surprising appearance every single time, his name is Furion.

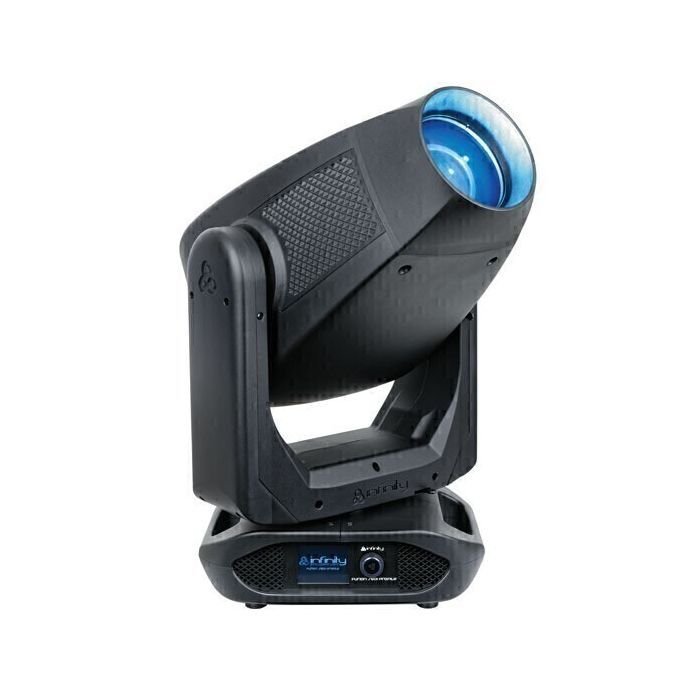

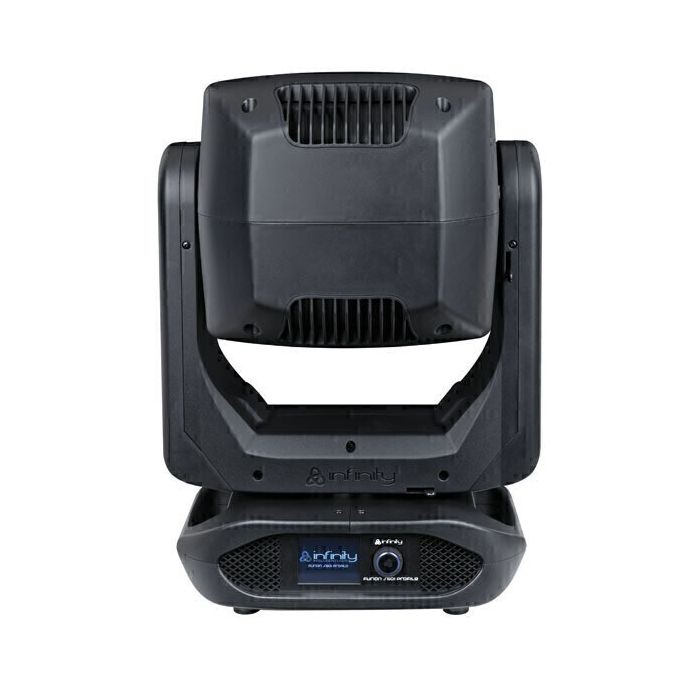

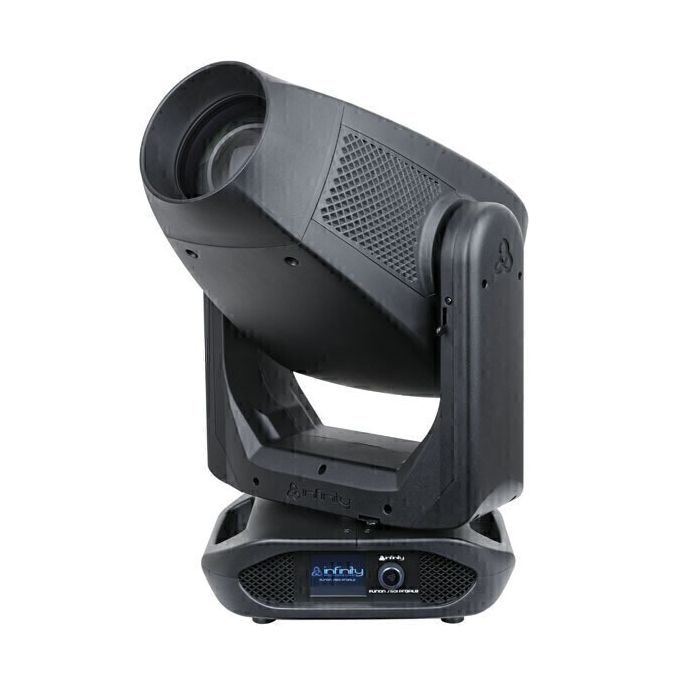

At the top of our flagship Furion Infinity family, we find the Furion S601. A moving head equipped with every function, where the options you imagine are reality. One of these great features are the four very precise and separately controllable blades which can be rotated by + 45 ° or -45 °. - If you need to create different shapes very quickly you can use the already integrated macros.
The Furion S601 device has been designed to produce a collimated beam with no divergence from your custom shapes. The 7: 1 zoom ratio from 6.5º to 45º, the 2 rotating gobo wheels with a total of 11 glass gobos and auto focus ensure very clear and well defined projections; moreover, the morphing possibilities are highly satisfactory.
Choosing the right color is easy, thanks to the CMY + CTO module in combination with the separate color wheel. All these features and more, such as the special Digital Motion effect and bi-directional continuously rotating animation wheel offer the lighting designer unlimited possibilities: he can put his imagination to work and create the most dynamic and extraordinary lighting show ever. .
• Zoom range 1: 7 - 6.5 ° - 45 °
• 500 W LED source
• 4 double axis blade movement system
• Motorized zoom with autofocus

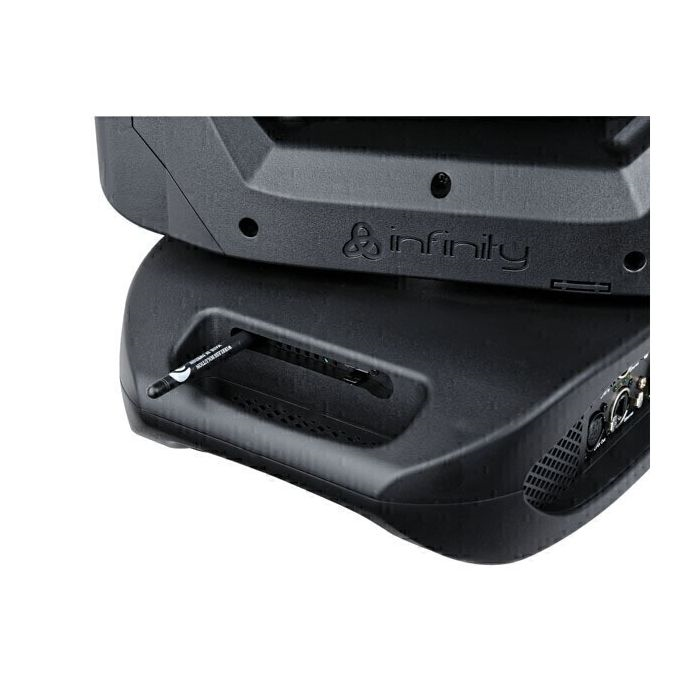

• WDMX integrated by WDMX Wireless Sweden Solutions

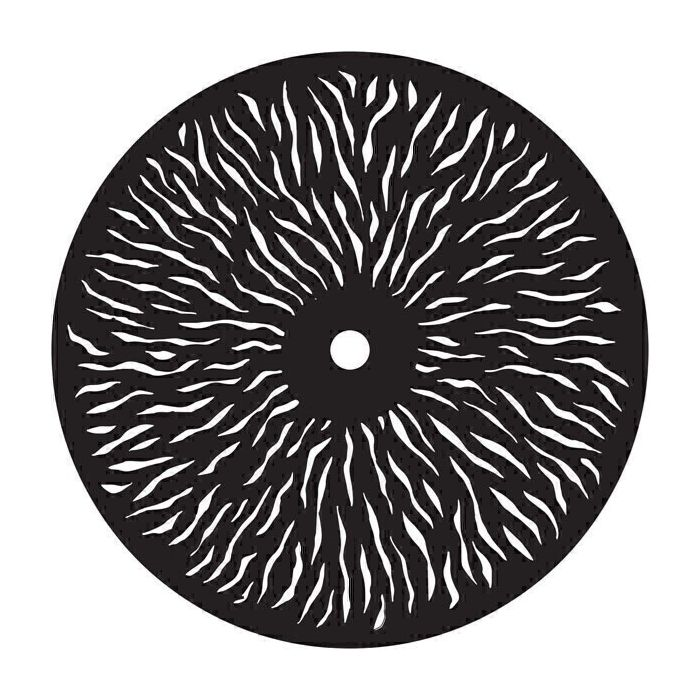

• Rotate bi-rotating continuous animation
• CMY + CTO color mixing system
TECHNICAL SPECIFICATIONS
CRI: 80
CCT: 6500K
Refresh rate (min - max): 600 HZ - 15 Khz
Lamp type: 1 x 350W white LED
Total lumens: 13500 Lm
Iris: Motorized
Focus: Motorized
Frost: Yes
Zoom: Motorized with autofocus
Zoom range: 6.5 ° - 45 °
Gobo wheel resolution: 16 bit
CMY and CTO resolution: 16 bit
Shaper palette resolution: 16 bit
Dimmer resolution: 16 bit
Control Modes: Built-in program, DMX, Manual, WDMX, Stand alone
DMX channels: 37, 56, 57
Protocols: ArtNet, DMX, RDM
Wireless: Wireless WDMX by Wireless Sweden Solutions
Iris resolution: 16 bit

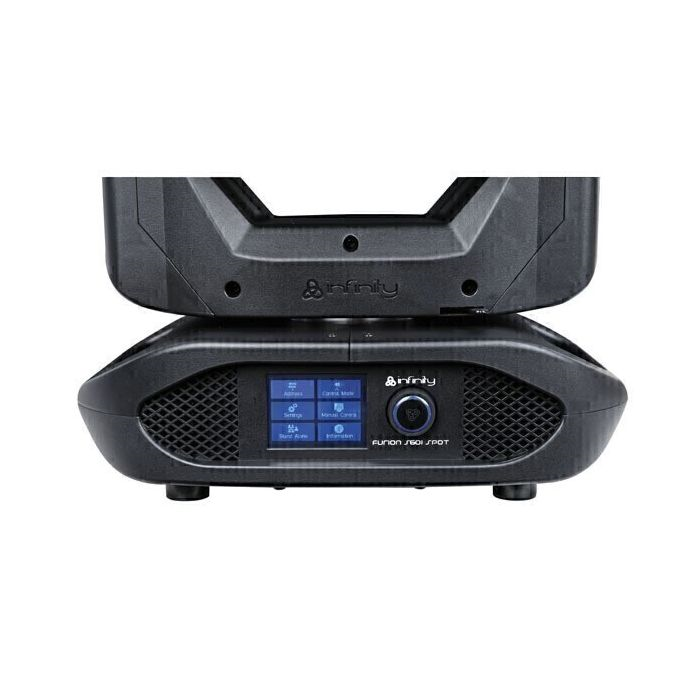

Display: Battery operated touch LCD with gravity sensor
Dimmer curve: Linear, Square, I-Square, S-curve
Focus resolution: 16 bit
Zoom resolution: 16 bit
Image size: 26 mm
Gobo size: 31.95 mm

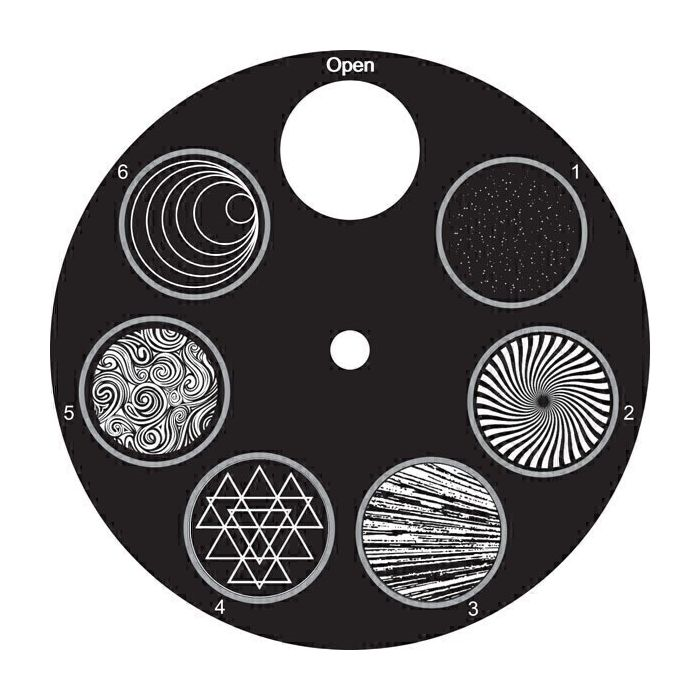

Gobo wheel 1: 6 + open
Gobo wheel 2: 5 + open
Gobo type: Glass + metal
Indexed and rotating gobo wheel: Yes

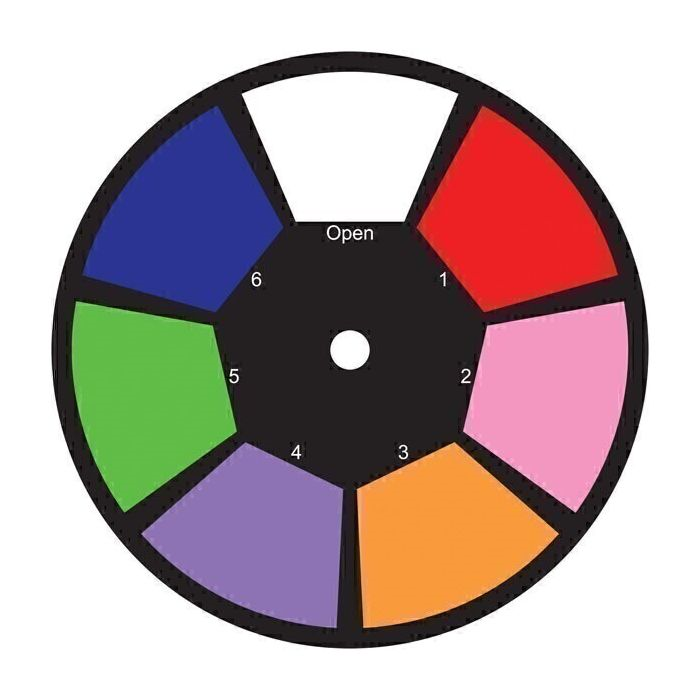

Dichroic color wheel 1: 6 + open
Shaper blades: Motorized
Dimmer: 0-100%
Strobe: 0-20 Hz
Prism 1: 3 faces
Prism 2: 5 faces
Indexed and rotating prism: Yes
Rotate animation: Digital motion FX
Color system: Color wheel
Indexed and rotating color wheel: Yes
Pan: 540 °
Tilt: 270 °
Pan / Tilt resolution: 16 bit

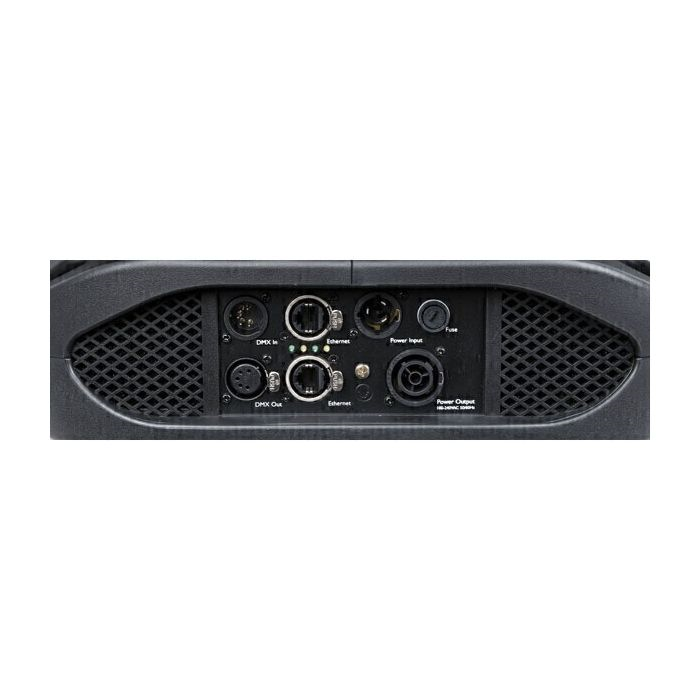

Power connectors: PowerCON true1 in / out
DMX connectors: XLR 5 poles in / out
Data connectors: etherCON in / out
Power consumption: 730 W
Power supply: 100-240 Vac 50-60 Hz
Housing: Metal and flame retardant plastic
Dimensions: 284 x 748 x 420 mm (WxHxD)
Weight: 35.6 Kg
IP degree: IP20
Black colour
Safety attacks: Yes

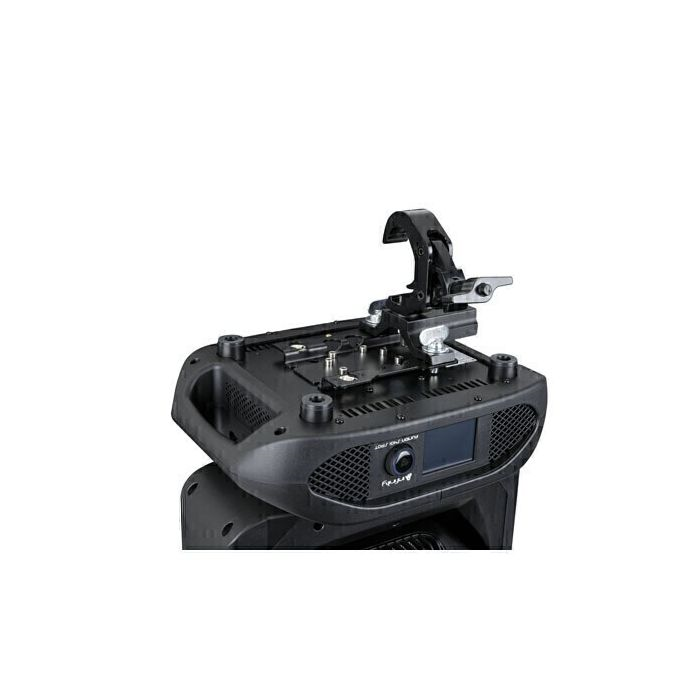

Mounting options: Quick Lock
Maximum ambient temperature: 40 °
