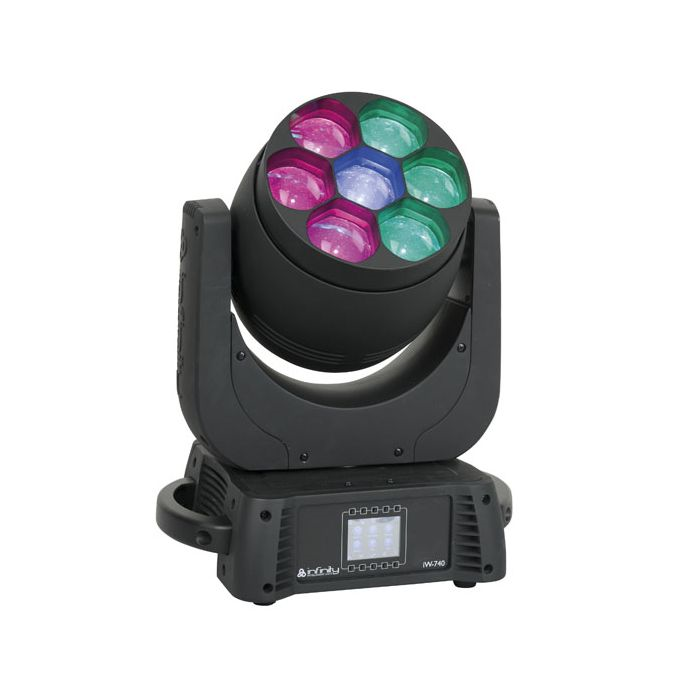

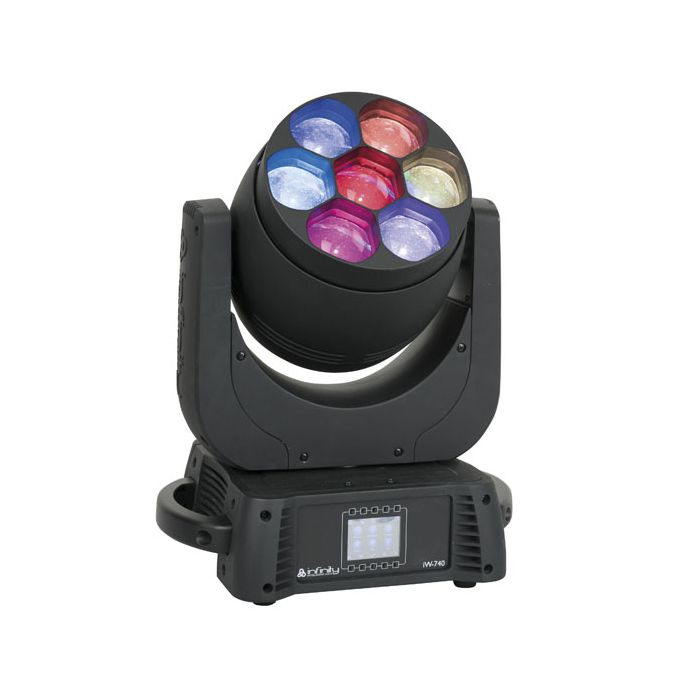

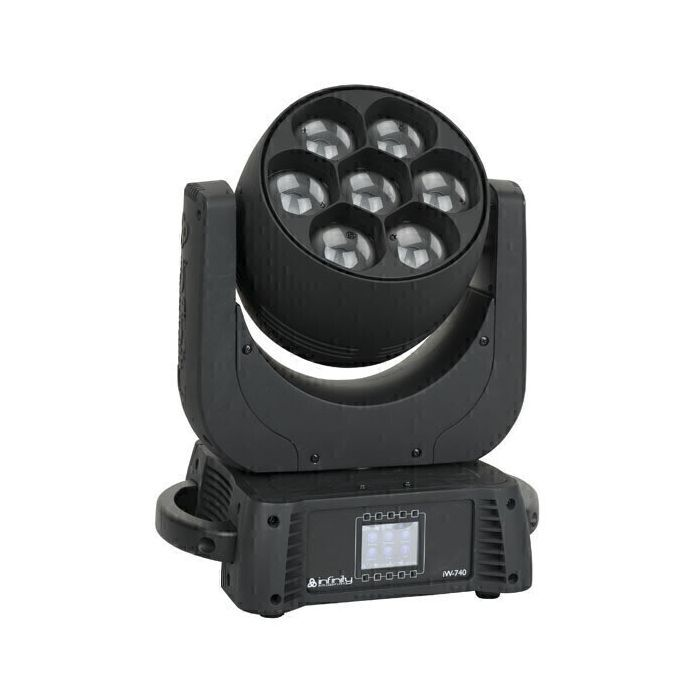

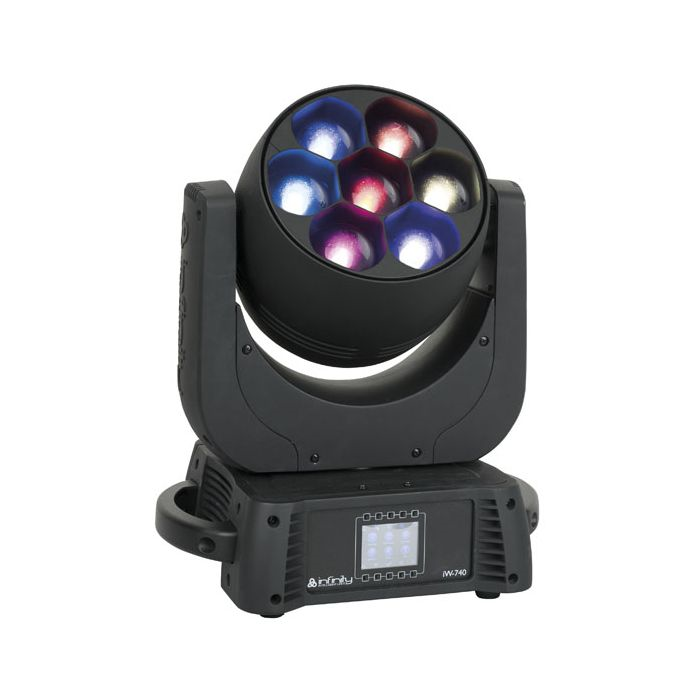

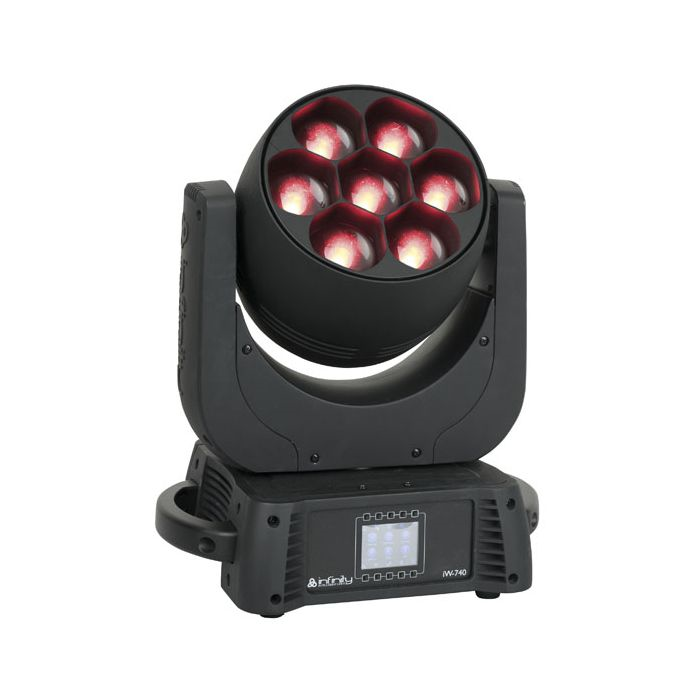

The iW-740 RDM is the mid-sized fixture in this series and already capable of delivering an enormous output. Seven Osram 40W O-Star RGBW LEDs guarantee for bright and beautiful colours. Individual pixels are controlled via DMX / Artnet or just select macro patterns to transform it into an exciting effect light. Built-in background LEDs add an additional layer to the already very extensive creative possibilities. The specially designed optics and the intelligent colour mixing system, with a separate CTO channel system, will allow you to create spectacular light effects.
Output:
-
Lux @ 3m: 35556
-
Beam Angle: 4.5° - 36°
-
Light Source: 7 x 40W RGBW (Osram Ostar)
Electrical:
-
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
-
Power consumption: 300W
Control:
-
On Board: Battery powered full colour display including gravity sensor
-
Mode: DMX, Auto, Master/Slave
-
Control protocol: DMX-512, Artnet, RDM
-
Control personality: 21 / 28 / 43 channels
-
Wireless DMX: optional available
Optical system:
-
Dimmer: 0-100% 16 bit
-
Dimmer curves: Linear, Square, I-Square, S curve
-
Dimmer speed: Smooth, Fast
-
Colour balance: Separate RGBW adjustment
-
Colour mode: RGB / CMY
-
Strobe: 0-20Hz
-
Zoom: 4.5° - 36°, motorized
Movement:
-
Pan: 540°
-
Tilt: 270°
-
Pan/Tilt resolution: 16 bit
-
Special: Pan/Tilt change black out, User selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement.
Physical:
-
Colour: Black
-
Housing: Metal & Flame retardant plastic
-
Fixture connections: XLR 3&5p & RJ-45 Data in/out, PowerCON TRUE1 in/out
-
Dimensions (WxDxH): 345 x 274 x 412mm
-
Weight: 9.3Kg
