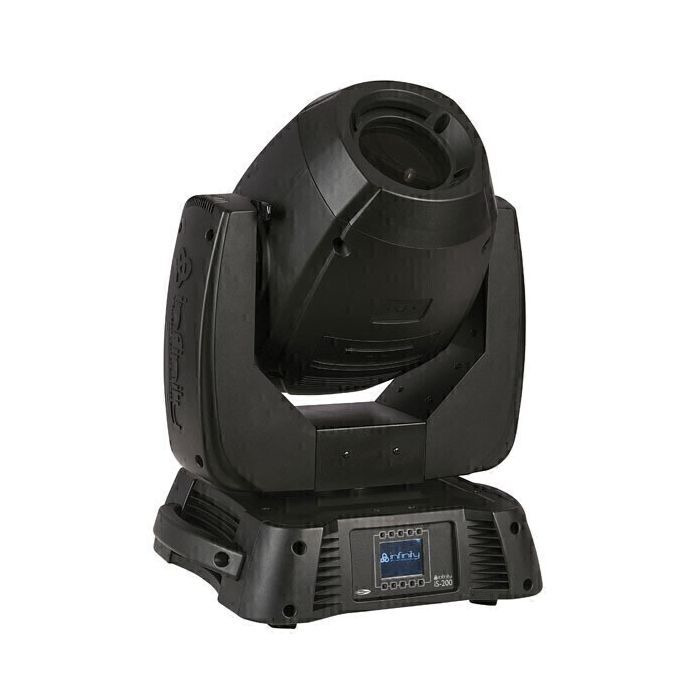

The iS-200 is equipped with a powerful 200W LED engine and a special optical lens offering a bright and solid beam. In comparison to the iS-100 it offers 2 gobo wheels and 2 color wheels. It has a rotating 3 facet prism as well a frost filter which makes it possible to use the fixture also as a true wash light. Quick lock screws on the covers allow you to change gobos within minutes without the need of any special tools. Due to its powerful light output, fast movements and full functionality the iS-200 is a true workhorse for the most demanding lighting professional.
Specifications
Output
Lux @ 1m: 78100
Beam Angle: 17°
Light Source: 200W White LED (LumiEngin)
Electrical
Input Voltage: 100-240 VAC
Power consumption: 370W max. at full output
Control

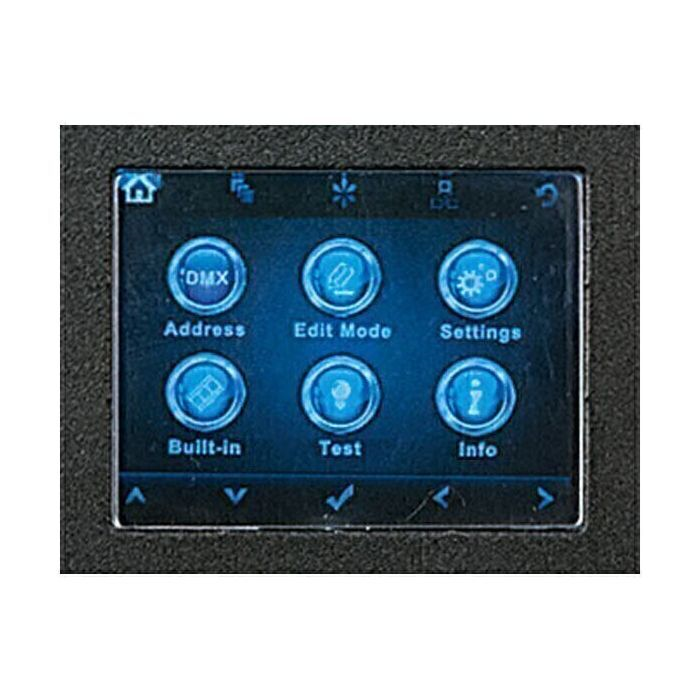

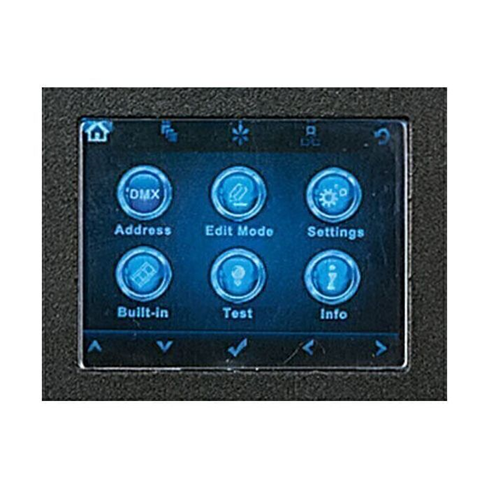

On-Board: Battery powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Mode: DMX, Auto & Master/Slave
Control Protocol: DMX512
Control Personality: Advanced 21ch /Basic 18ch
Wireless DMX: optional available
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Iris: Motorized
Prism: 3-facet rotating prism
Frost filter: Yes
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, Color,Gobo change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colors
Gobowheel 1 Rotating: 2 glass + 5 metal gobos (replaceable)
Gobowheel 2: 8 metal gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Gobo inner diameter: 25mm
Gobo outer diameter: 29mm
Colorwheel 1: 7 dichroic-filters + white
Colorwheel 2: 7 dichroic-filters + white
Color functions: Split colors, Rainbow-flow effect
Physical
Color: Black
Housing: Metal & Flame-retardant plastic

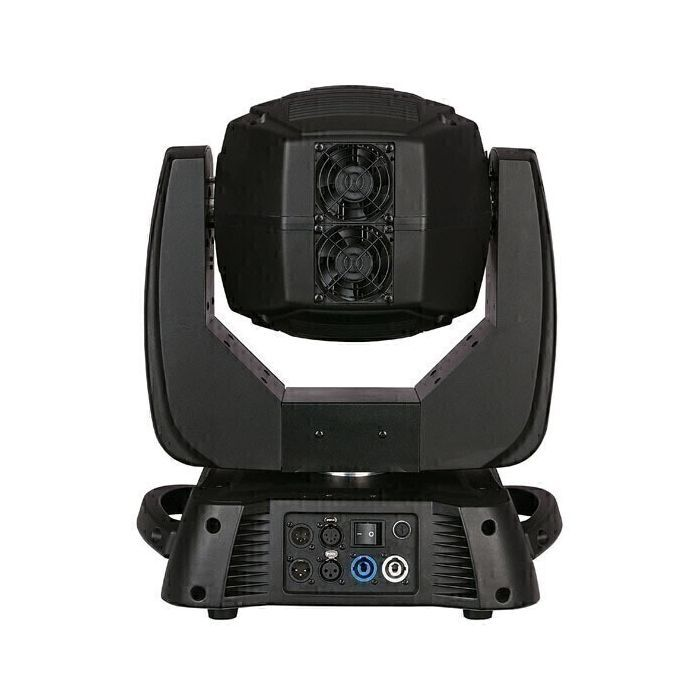

Fixture Connection: XLR 3&5p Data in/out, Powercon in- & output

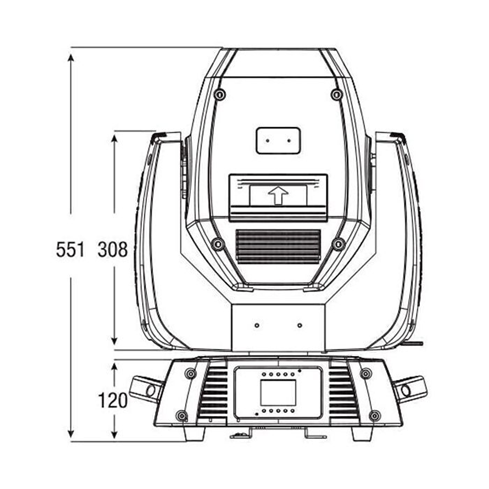

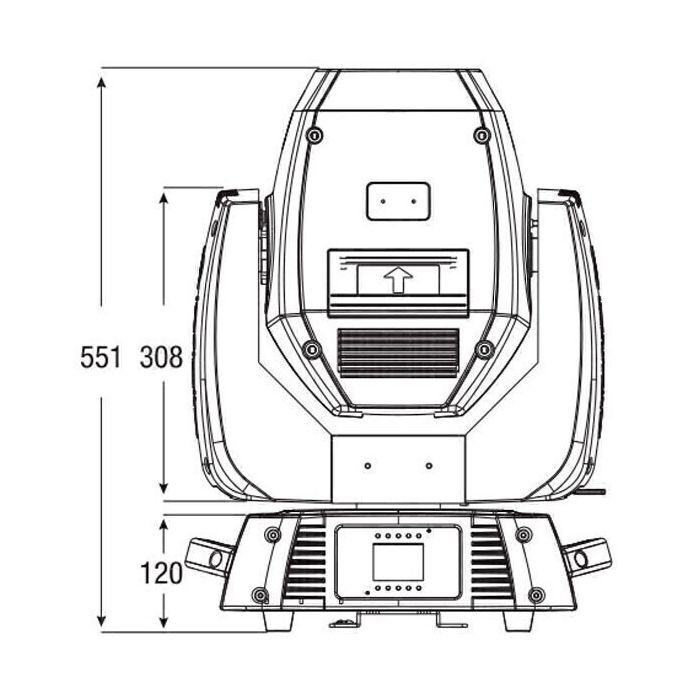

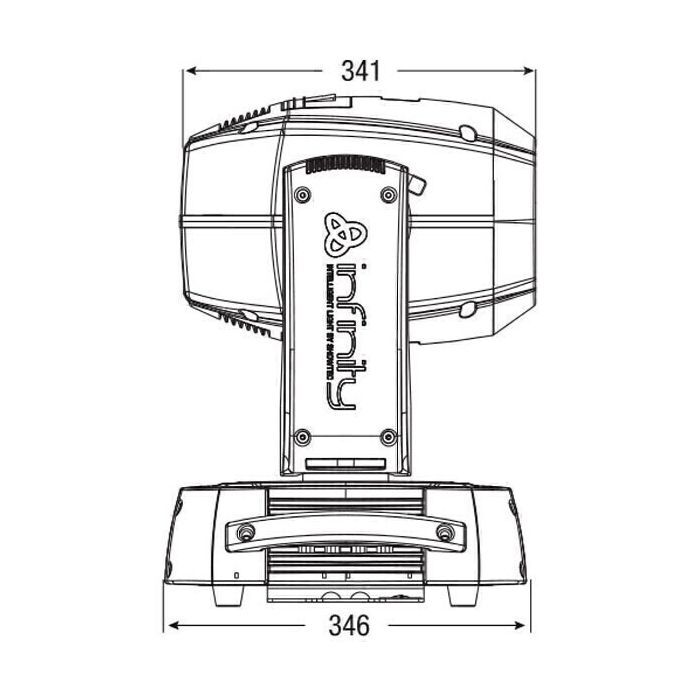

Dimensions (WxDxH): 346 x 417 x 551 mm
Weight: 21 kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
