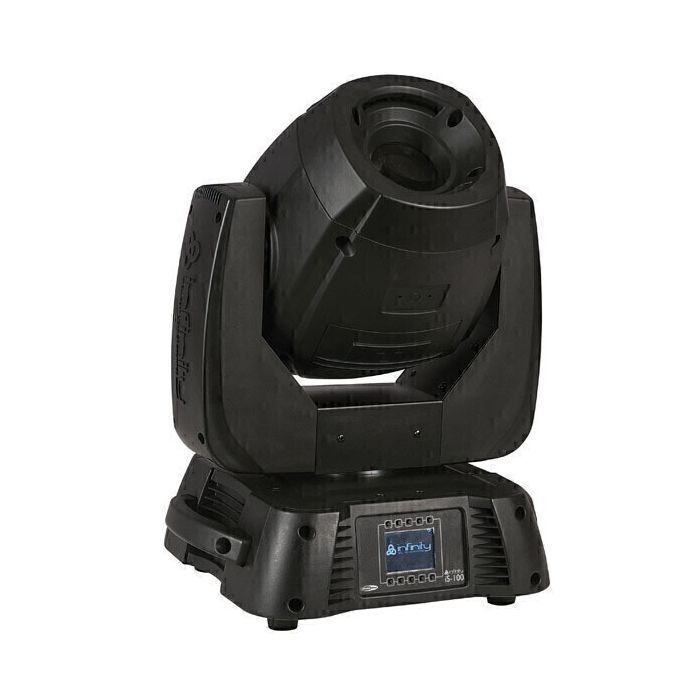

The iS-100 is a powerful LED moving head. It is equipped with all high-end technology which are characteristic for Infinity. It's powerful 100W LED engine offers a bright and solid beam. It is equipped with 2 gobo wheels. One rotating wheel contains 7 rotating gobos of which 2 are glass. The fixed gobo wheel contains 8 metal gobos. The color wheel has 8 colors plus white and has the possibility to make half colors. The trapezium shaped colors ensure smooth color changes and fades as well split colors. For extra effects it is equipped with an iris as well a rotating 3 facet prism. The iS-100 is equipped with high torque motors on pan and tilt movement ensuring fast movements.
Specifications
Output
Lux @ 1m: 52400
Beam Angle: 15°
Light Source: 100W White LED (LumiEngine)
Electrical
Input Voltage: 100-240 VAC
Power consumption: 220W max. at full output
Control
On-Board: Battery powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Mode: DMX, Auto & Master/Slave
Control Protocol: DMX512
Control Personality: Advanced 19ch /Basic 15ch
Wireless DMX: optional available
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Iris: Motorized
Prism: rotating 3-facet prism
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, Color,Gobo change blackout,User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colors
Gobowheel 1 Rotating: 2 glass + 5 metal gobos (replaceable)
Gobowheel 2: 8 metal gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Gobo inner diameter: 23mm
Gobo outer diameter: 27mm
Colors: 8 dichroic-filters + white
Color functions: Split colors, Rainbow-flow effect
Physical
Color: Black
Housing: Metal & Flame-retardant plastic

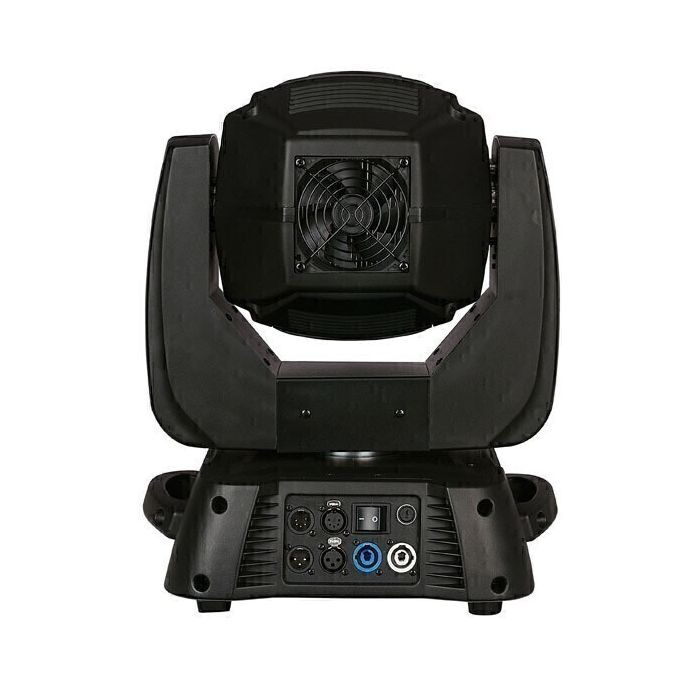

Fixture Connection: XLR 3&5p Data in/out, Powercon power input

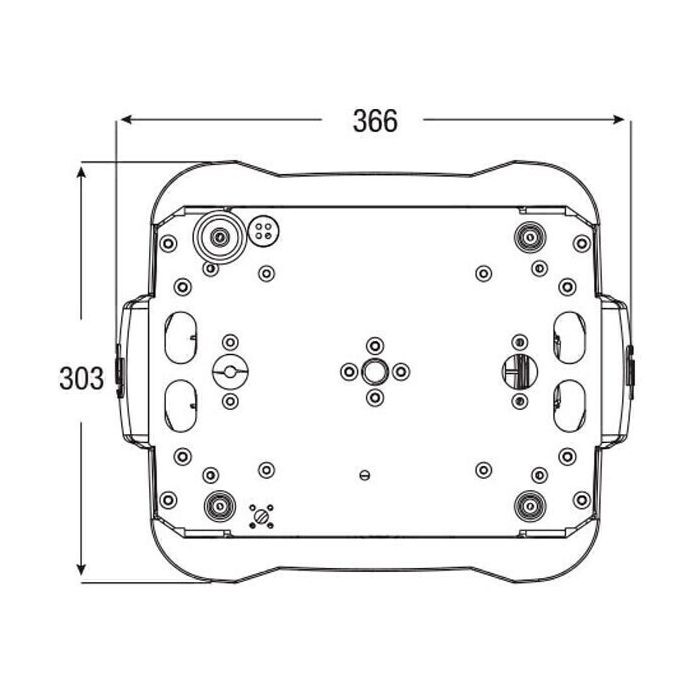

Dimensions (WxDxH): 303 x 306 x 485 mm
Weight: 16,5 kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
