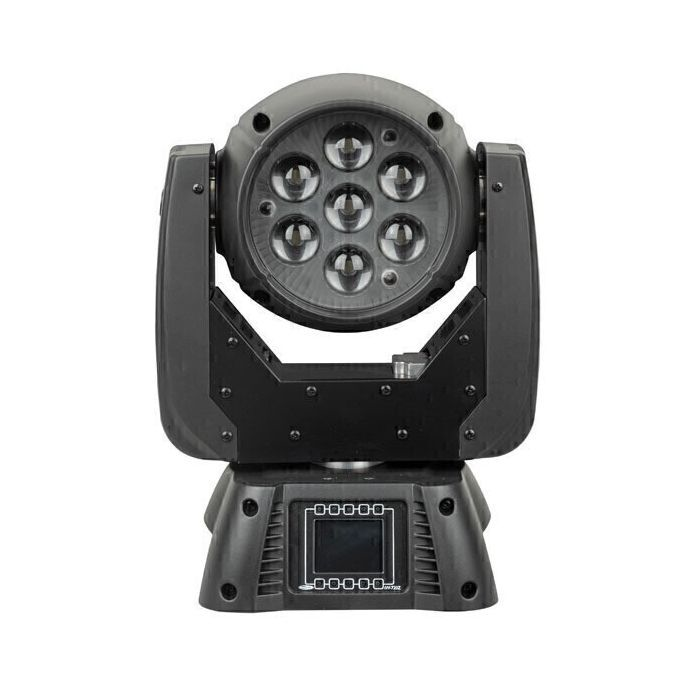

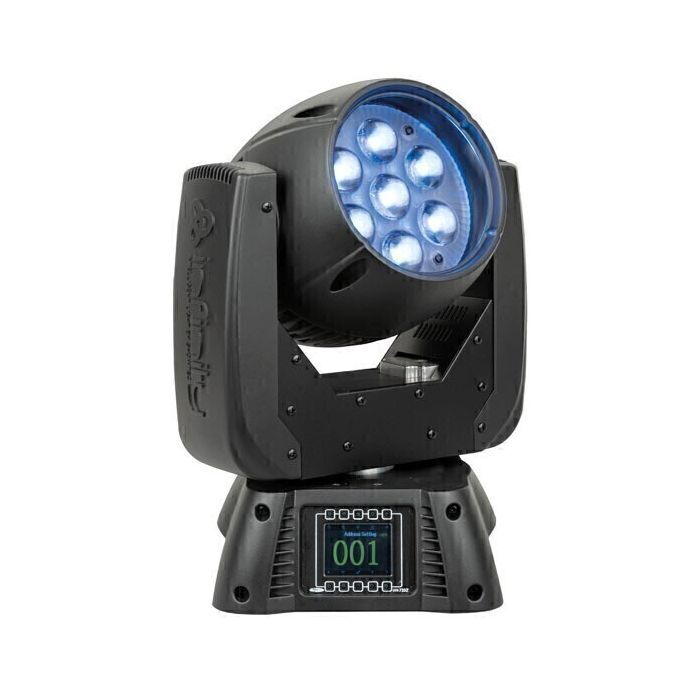

The Infinity® iW-720 RDM is equipped with seven 20W RGBW Osram LED's and offers seamless zoom from 7° to 50°. Improvements compared with the previous iW-720 are the evolved electronics providing a more accurate movement and RDM data communication between fixture and console. Also the entire unit is more silent making this item suitable for broadcast, theatre and studio's. Another significant key feature is the segment control of the LEDs; these are divided into 4 sections which can be controlled individually offering the user endless creative possibilities. The Osram LED's provide superior color mixing and a wider spectrum range.
High speed motors for pan and tilt movement are used for accurate and very fast movements. Strobe and dimming functionalities are controlled by a microprocessor, ensuring smooth 0-100% dimming as well as high speed 0-20Hz strobe effects.
The compact housing and lightweight chassis make this fixture ideal for all small to medium size applications where space is a major concern.
-
Motorized Zoom
-
4 Section control
-
Ultra fast movement through high torque motors
-
Battery powered menu
Specfication
Output
Lux @ 3m: 13800
Beam Angle: 7-50°
Light Source: 7x 20W RGBW 4-in-1 LED (Osram)
Electrical
Input Voltage: 100~240VAC, 50/60Hz
Power consumption: 240W max. at full output
Control

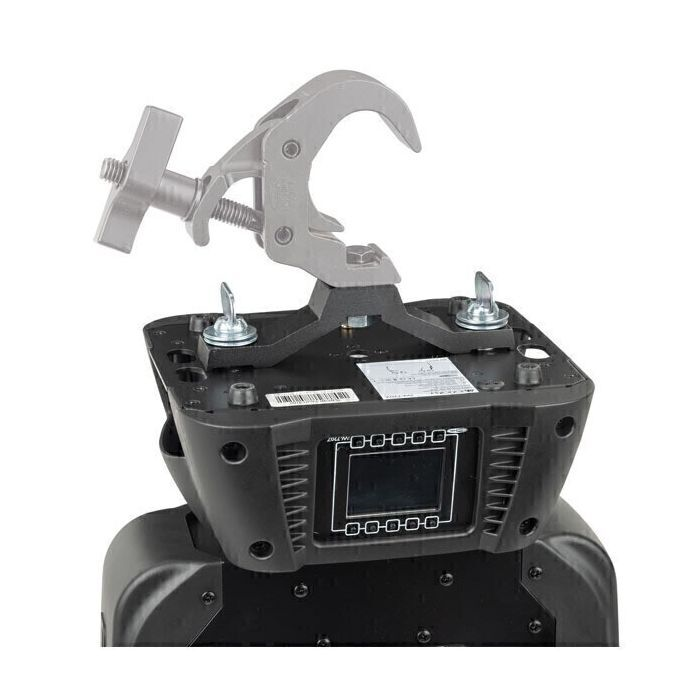

On-Board: Battery powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Mode: DMX, RDM, Auto & Master/Slave
Control Protocol: DMX512
Control Personality: Advanced 29ch /Basic 16ch, 14ch
Wireless DMX: optional available
Optical system
Dimmer: 0-100%
Dimmer curves: Linear, Square, I-Square, S curve
Dimmer speed: Smooth, fast
Color balance: Separate RGBW adjustment
Strobe: 0-20Hz
Zoom: Motorized
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Physical
Color: Black
Housing: Metal & Flame-retardant plastic

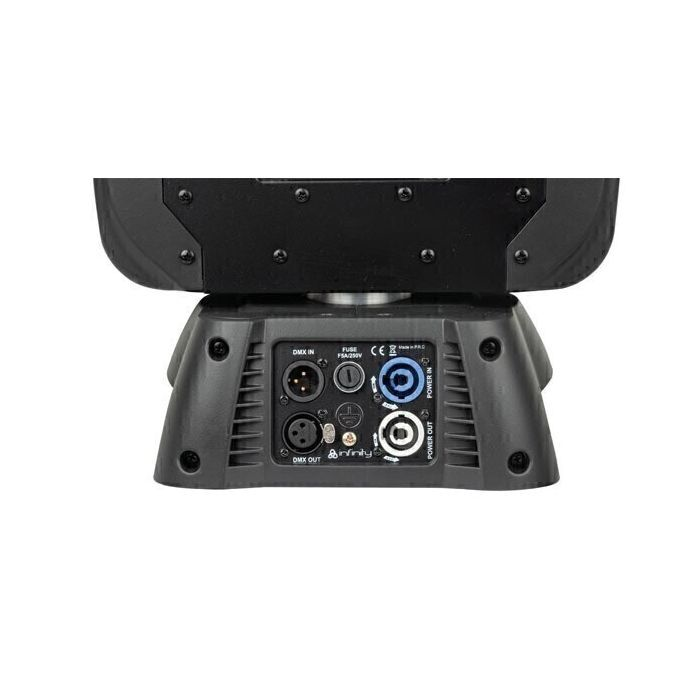

Fixture Connection: XLR 3p Data in/out, Powercon in- & output

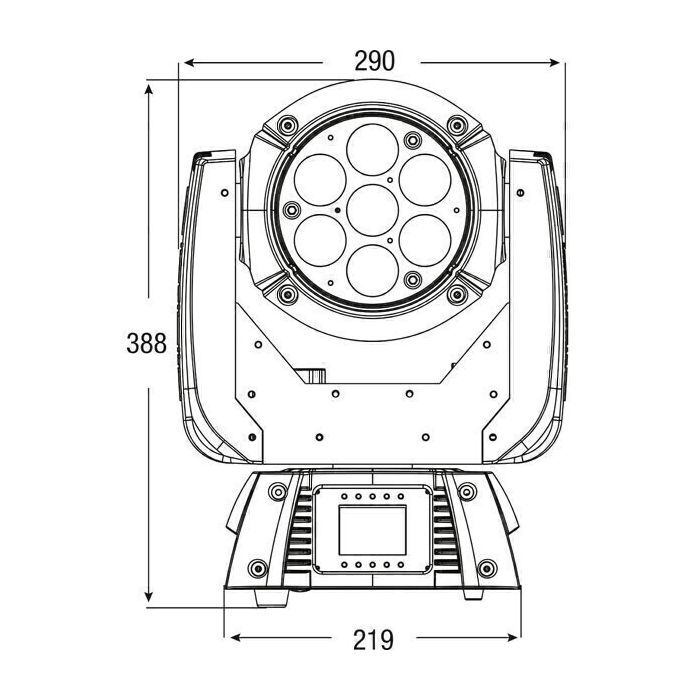

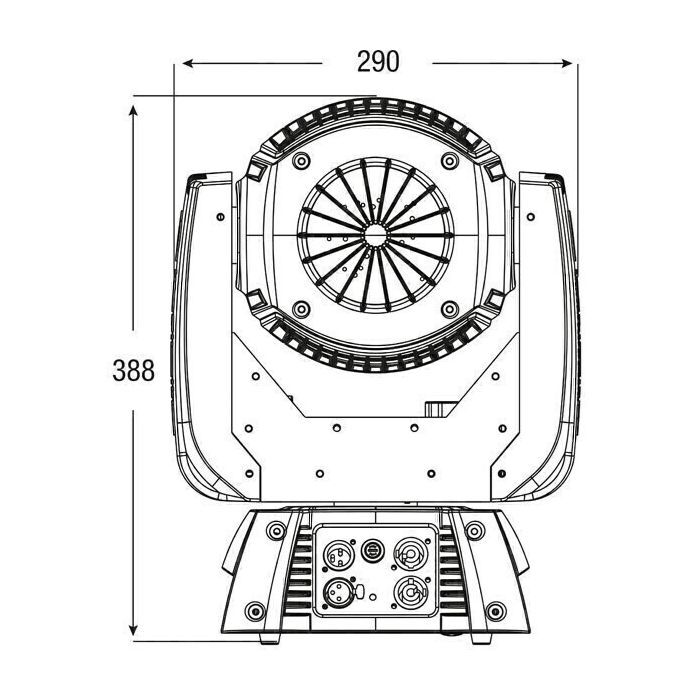

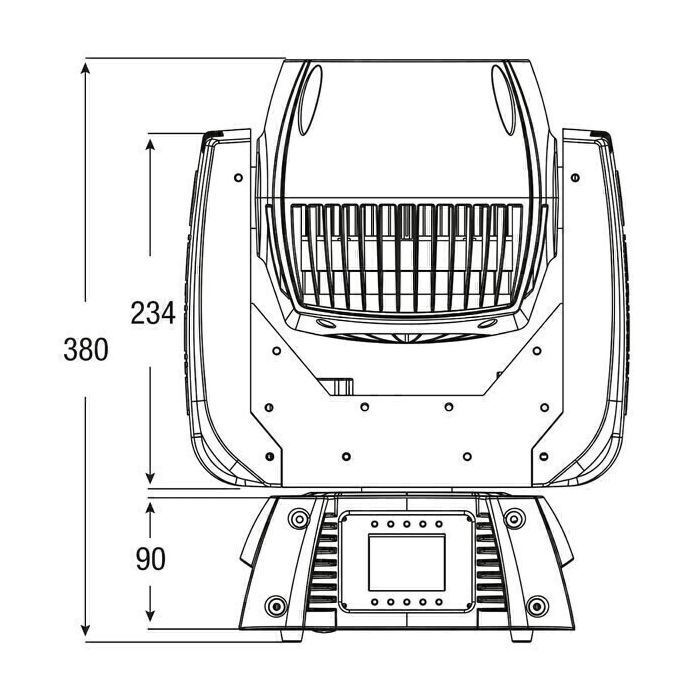

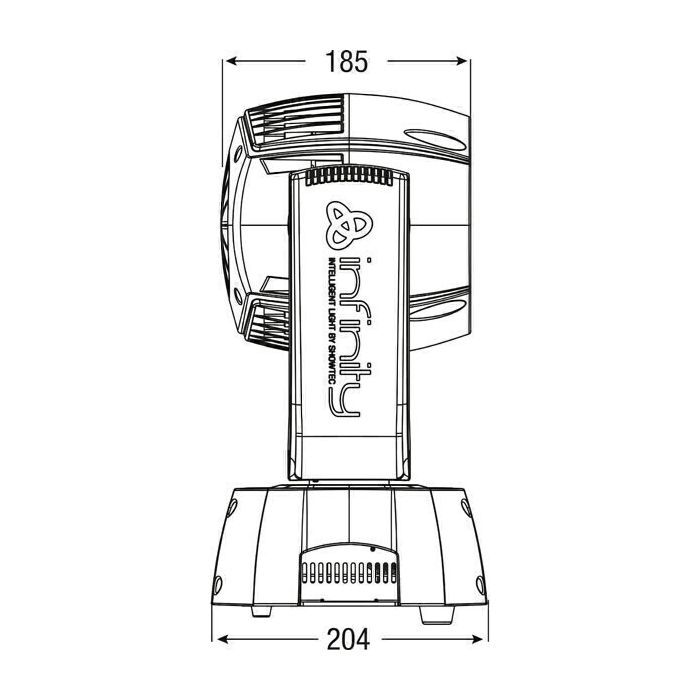

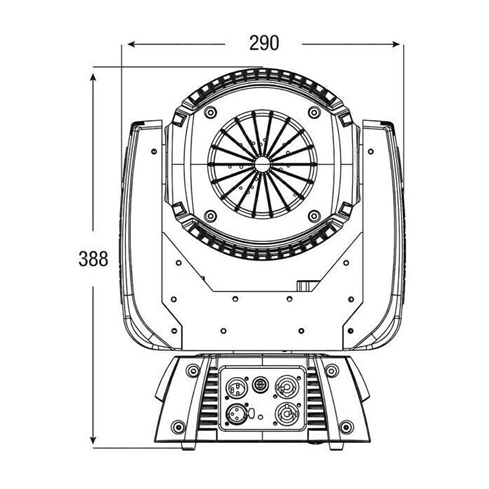

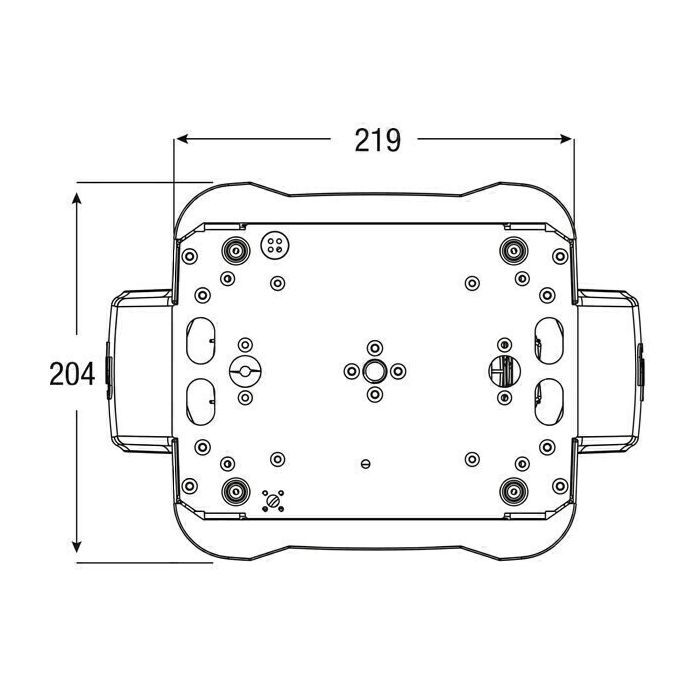

Dimensions (WxDxH): 204 x 219 x 380 mm
Weight: 8 Kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
