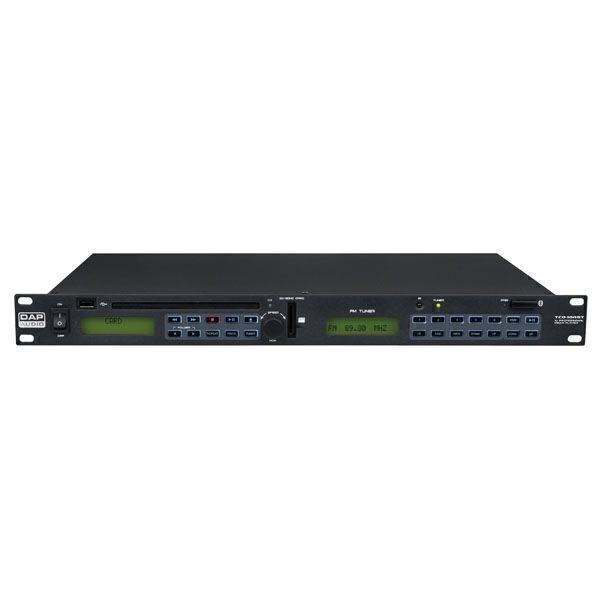

DAP TCD-100BT je medijski plejer koji uključuje tjuner, CD, USB i SD mogućnost reprodukcije. Plejer takođe ima Bluetooth modul za reprodukciju preko audio bežične veze sa svih uređaja koji podržavaju Bluetooth. Domet Bluetooth modula je u ppsegu od preko 25 m, u zavisnosti od situacije u okruženju. Tasteri za kontrolu imaju pozadinsko osvetljenje što je vrlo pogodno u slabo osvetljenim okruženjima. Postoje 3 odvojena, nezavisna izlaza, Bluetooth, tjuner i CD. CD izlaz je kombinovani izlaz koji se koristi za reprodukciju CD-a, USB-a ili SD-a.
TCD-100BT je idealan medijski uređaj za reprodukciju, pogodan za vrste audio instalacija.
SPECIFICATIONS
Main Output Maximum Level: 4 dBu
Main Output Connector: RCA

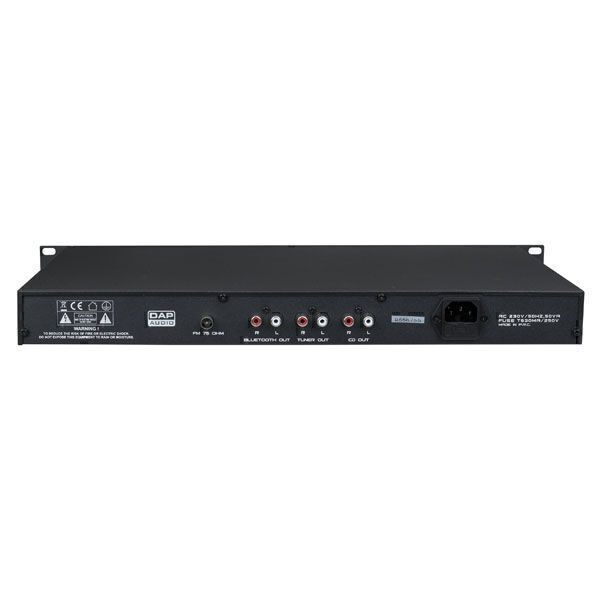

Main Outputs: 3
Playback Functions: Down (Skip), Function, Pauze, Play, Repeat, Stop, Up (Skip)
USB Type: 2.0
Media Input/Output: USB A, SD Card
Maximum Storage Size: 32GB
Supported Format: FAT16, FAT32
Supported Audio Files: MP3
THD Distortion Level: < 0.1%
Signal - Noise Ratio: > 70dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20.000 Hz
Bluetooth Range: 25 m
FM Antenna Impedance: 75 Ω
FM Frequency End: 108 MHz
FM Frequency Start: 87.5 MHz
Bluetooth Audio Profile: A2DP
Bluetooth Version: 3.0
Bluetooth Classification: 2
User Presets: Yes
User Presets Capacity: 30
Control Mode: Manual, Remote
Display: LCD
Power Connector in: IEC C13 male
Data Connector in: USB
Fuse: 0.63 A
Power Consumption: 9,2 W
Power Supply: 240VAC 50-60Hz
Rack Units: 1 U
Color: Black
Housing: Metal
IP Rating: IP20(indoor use only)
Length (mm): 250 mm
Flightcase Size: 19"
Weight: 3,7 kg
Width (mm): 482 mm
Height (mm): 44 mm
LED Indicators: BT Pairing, Operation mode
Reference Standard: CE, EMC, ETL, FCC, RoHS
Included Cables: IEC cable
Included Accessories: FM Antenna, User Manual

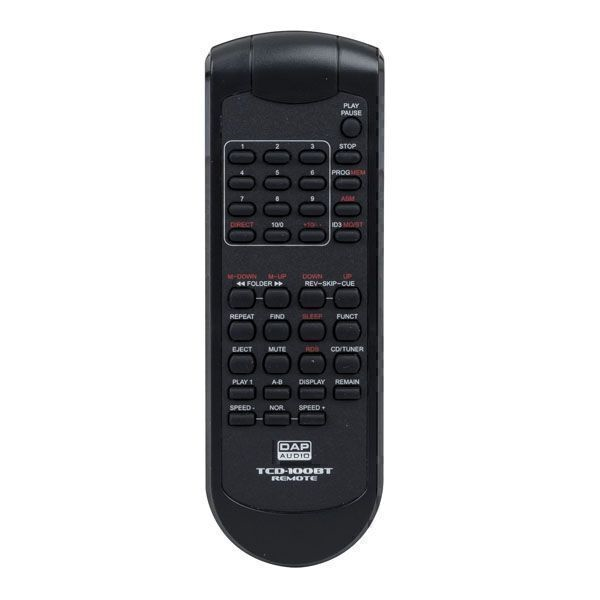

Included Remotes: IR Remote
