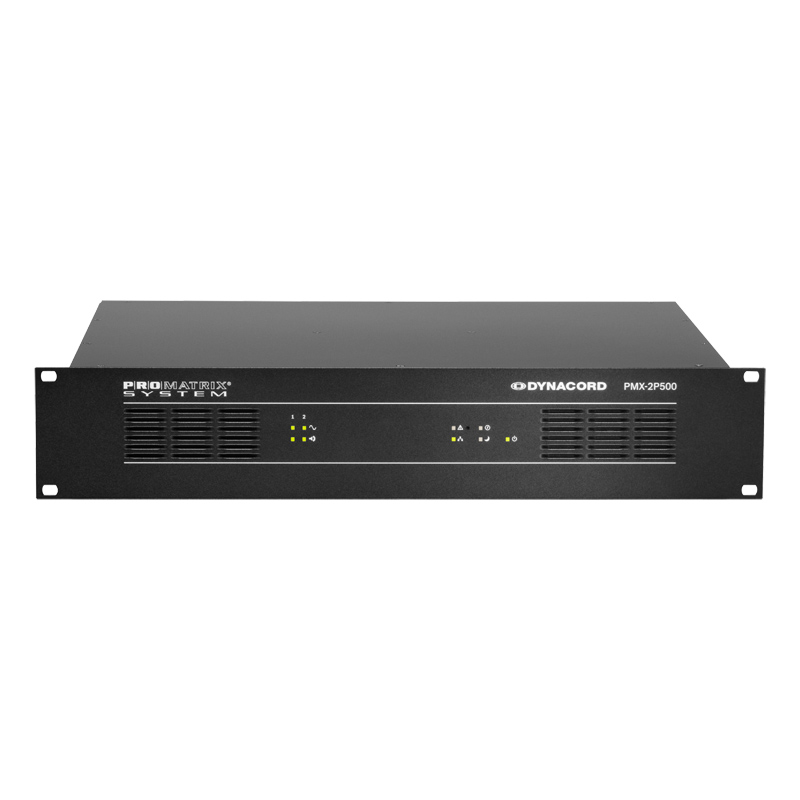

Pojačavač PMX-2P500 klase D je profesionalno audio pojačalo snage 2x500W/100V za glasovne sisteme za evakuaciju. Može se napajati iz električne mreže i iz jednosmernog pomoćnog napajanja. Izlazni signal je galvanski izolovan i neprestano se nadgleda za spoj prema masi. Režim štednje energije i brzina ventilatora kontrolisana temperaturom smanjuju potrošnju energije i nivo buke. Funkcije upravljanja i nadzora pojačavača izvršavaju se preko sistemske CAN magistrale. Ovo pojačalo je dizajnirano za rad u sistemu za hitnu evakuaciju. Pojačala se obično kontrolišu preko centralnog audio kontrolera i konfigurišu pomoću IRISNet-a.
Pojačalom upravlja procesor i opremljen je velikim brojem funkcijama nadzora. Nadgledanje CAN magistrale i signalne audio linije omogućava otkrivanje i ukazivanje prekida na liniji i kratkih spojeva korisniku, a sve po EN54-16 standardu.
Electrical:
Rated load impedance (output power), 100V: 20Ω (500W)
Rated output power, 1kHz,THD ≤1%: 2x500W
Rated input voltage: +6dBu
Max. RMS voltage swing, 1kHz, THD≤1%, without load, 100V: 110V
Voltage gain, ref. 1kHz, fixed, 100V: 36.2dB
Maximum load capacitance: 2μF
Input level, max.: +18dBu (9.75Vrms)
Frequency response, ref. 1kHz, rated load, -3dB: 50Hz to 25kHz
Input impedance, active, balanced: 20kΩ
Signal-to-noise ratio (A-weighted): >104dB
Output noise (A-weighted): <-62dBu
Crosstalk, ref. 1kHz: <-85dB
Output stage topology: Class-D, transformer, floating
Power requirements:
Power supply: Mains: 115-240VAC±10%, 50/60Hz, Battery: 21-32VDC
Power consumption, Pmax -3dB/idle/Standby: 230VAC, 50Hz: 700W/21W/1.9W, 24VDC: 735W/16W/1.5W
Inrush current: 2A
Inrush current, after five-second power cycle: 1.3A
Mains fuse: T6.3A (internally)
DC fuse: 30A (internally)
Ground fault: R<50kΩ
CAN BUS port: 2xRJ-45, 10 to 500kbit/s
Protection: Audio input level limiter, RMS output power limiter, high temperature, DC, short circuit, mains undervoltage protection, DC supply under voltage protection, inrush current limiter, ground fault
Cooling: Front-to-rear, temperature-controlled fans
Environmental:
Operating temperature: -5°C to +45°C
Storage temperature: -40°C to +70°C
Humidity (non-condensing): 5% to 90%
Altitude: Up to 2000m
Mechanical:
Dimensions (HxWxD): 88mmx483mmx375mm(2RU)
Weight (net): 16.5kg
Mounting: Standalone, 19" rack
Color: Black
