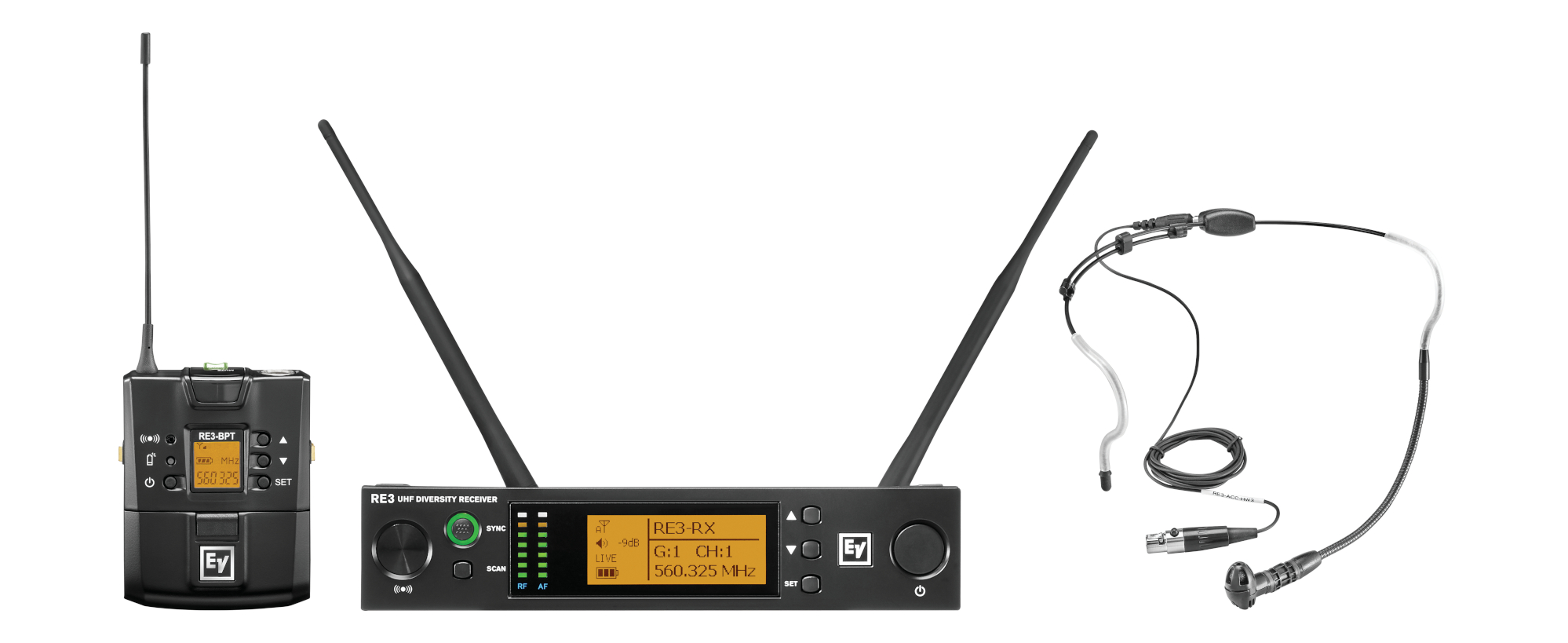

RE3-HW3 UHF wireless set containing the HW3 supercardioid headworn microphone
Bodypack UHF wireless set containing the HW3 supercardioid headworn microphone voice performance, presentations, and athletic instruction. The HW3’ s sound is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
RE3-RX Diversity Receiver
Frequency Oscillation Mode: Phase-locked loop (PLL) Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent) Sync Frequency: Ultrasonic 40 kHz Diversity: Antenna diversity Bandwidth: 36MHz Signal/Noise Ratio: >100dB(A) Total Harmonic Distortion (Thd): <0.6%@1kHz Receiving Sensitivity: -81dBm for -12dB SINAD Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT) Antenna Type: Detachable ½ wave with BNC connector Antenna Booster Power: DC12 - 15V/100mA Function Display By: LCD Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) Audio Frequency Output Level: Ref：±22.5kHz Dev@1kHz Tone ¼ ” (6.3mm) Phone Jack：-10dBV XLR Jack：-4dBV(Line)、-24dBV(MIC) Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced) Squelch and noise muting: Noise muting and tone code locking Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼ ” TS (6.3mm) jack Power Supply: DC12~15V/500mA Finish: Black polyurethane paint Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm) Net Weight: 2.71 lbs [1.23 kg] Gross Weight: 3.28 lbs [1.49 kg]
RE3-BPT
Frequency oscillation mode
Phase-locked loop (PLL) Available band names, tuning
bandwidths, and carrier
frequency ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
6M: 10 MHz (653-663 MHz)
8M: (823-865 MHz)*
T: 3 MHz (803-806 MHz)
*8M is split into two segments:
823-832MHz: 9MHz
863-865MHz: 2MHz Sync frequency Ultrasonic RF power output Frequency band specific:
5L (488-524MHz): Low 10mW / High
50mW
5H (560-596MHz): Low 10mW / High
50mW
6M (653-663MHz): Low 10mW /
High 20mW
8M (823-865MHz) 10mW
T (803-806MHz): Low 10mW / High
50mW Display by LCD + LED Function controls Power, mute, group, channel,
frequency, sensitivity adjustment,
input level attenuation, RF power,
auto off, key lock. RF stability < ±10kHz@Fc Modulation frequency shift Wideband FM ±48kHz deviation Harmonic radiation < −50dBc Input jack 4-pin mini jack Battery 2 x AA alkaline battery or NiMH
rechargeable battery Charging contacts Yes Finish Black polyurethane paint Dimensions (without
antenna) Height: 3.2 in. (81.5mm)
Width: 2.54 in. (64.5mm)
Depth: 0.98 in. (25mm) Net weight 6.14 oz. (0.174 kg) Gross weight 8.29 oz. (0.235 kg)
HW3 Headworn mic with TA4F Element type Self-biased condenser Frequency response 30 Hz - 18 kHz Polar pattern Supercardioid Sensitivity: open circuitvoltage. 1 kHz 0.5 mV/Pascal (-47 dBV/PA) Maximum SPL 130 dB SPL Impedance 1000 ohms Power requirements 3-9 VDC Polarity Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1 Electrical contact pinouts Pin #1 - Ground, shield
Pin #2 - Audio
Pin #3 - Bias voltage
Pin #4 - N/C Dimensions (cable length) 45.28" (1150 mm) Dimensions (boom length) 5.83" (148 mm) Net weight 1.35 oz (38.4 g) Shipping weight 5.93 oz (168 g) Microphone connector 4-pin mini plug Head finish Non-reflecting Black Material Black stainless steel paintedadjustable headband frame. Moldedback facing connector joint with 2.5mm jack for detachable cable, blacktextured PU. Black painted steel 100mm x 4.5 mm flexible mic positingtube. Integrated black TPR mic shockmount. Clear soft silicone tubing atear contact points.
