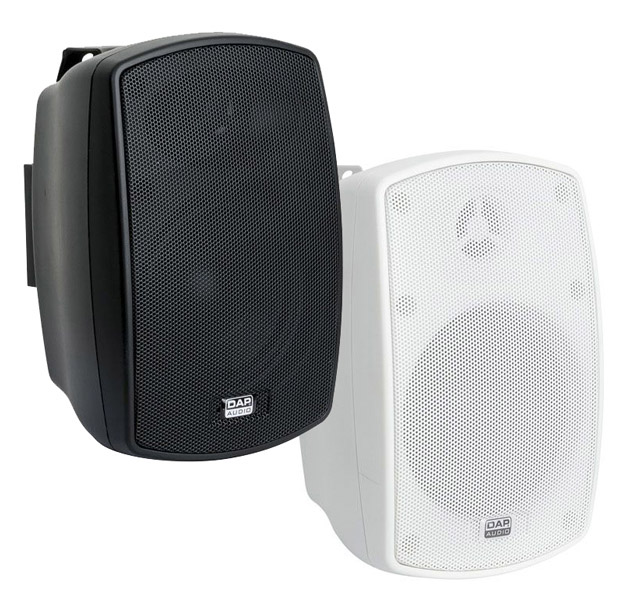

The DAP Audio EVO series loudspeaker range is designed for fixed audio installations and a wide range of applications. EVO series combines an elegant design with high fidelity audio in a wide variety of cabinet sizes. This range of 2-way cabinets is available as low impedance or with line transformer to serve both small and large installations. The included multi angled bracket offers a fast and easy installation and gives optimal orientation for both horizontal and vertical mounting. DAP audio Evo series are the perfect solution to fulfill installations in environments such as restaurants, retail stores, pubs, or even clubs thanks to their high performance components and extremely wide coverage. The EVO series are available as standard models in various wattages and as 100V-range.
- IP 54 Protection Rate
- Multi angled Brackets
- Fast and easy installation
- High power handling
Speaker system: 2-way Full Range 100V
Continues power: 40 Watt
Peak power: 80 Watt
Impedance: 8 Ohm
Sensitivity W/m: 88dB
LF Driver: 4”
HF Driver: 0,5” Dome Tweeter
Dispersion: 110 x90° HxV
Frequency Response: 100Hz-20.000Hz (-3dB)

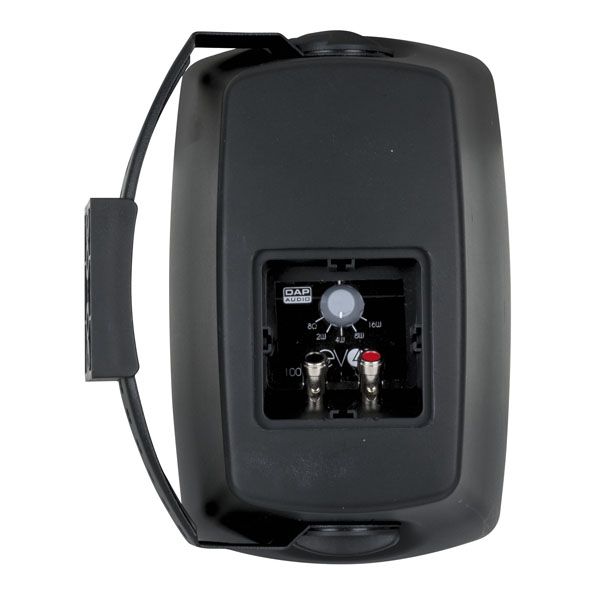

Line Transformer taps: 2W-4W-8W-16W
Transformer: 70V / 100V

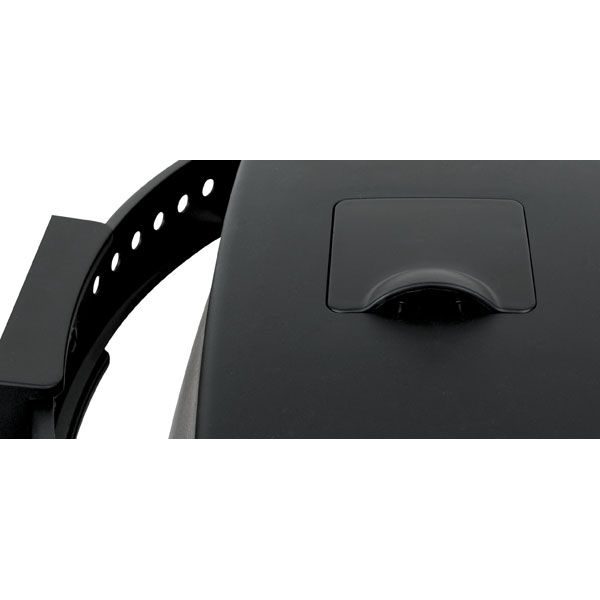

Mounting: 60° Multi angled bracket
Connection: Terminals
Construction: ABS
Grill material: Steel
Dimensions: 195 x 126 x 127mm
Weight: 1,8 Kg
Approvals: CE
IP Rating: 54
