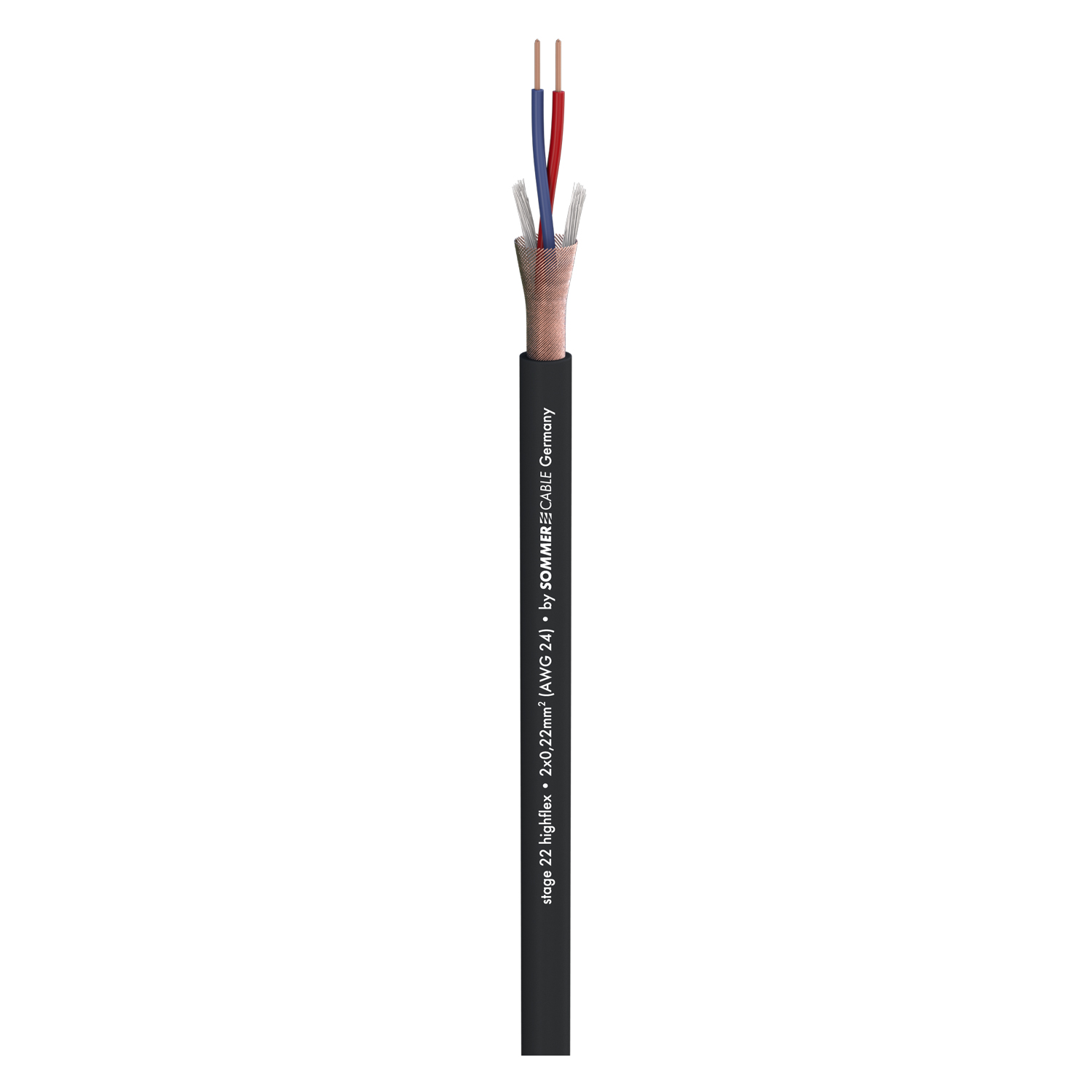

Mikrofonski kabl 2 x 0,22 mm2
Application:
- Stage application
- Home recording
Technical Data:
- Properties: Analog
- Properties: OFC oxygen free copper
- Application area: Stage / live
- Application area: Mobile outdoor / indoor
- Application area: Installation
- Application: Microphone Cable
- Colour: black
- Colour detailed: black
- Signal transmission: symmetrical
- Jacket material: PVC
- Jacket Ø: 6,4 mm
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 0,22 mm²
- Inner conductor Ø (audio): 0,53 mm
- AWG (audio): 24
- Shielding: Copper spiral shielding with 0.10 mm indiv. strands
- Copper strands (audio): 28
- Copper strand Ø (audio): 0,10 mm
- Weight per 1 m: 44 g
- UV-resistant: yes
- Fire load per m: 0,22 kWh
- Style variant: round
- Shielding factor: 99 %
- Packing: 100 m spool
- Packing: 500 m spool
- Temperature min.: -20 °C
- Temperature max.: 70 °C
- Width: 6,4 mm
- Height: 6,4 mm
- Capac. cond./cond. per 1 m (audio): 68 pF
- Capac. cond./shield. per 1 m (audio): 130 pF
- Impedance: 100 Ω
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1 km (audio): 1 GΩ
- Conductor resistance per 1 km: 87 Ω
- Shield. resistance per 1 km: 30 Ω
