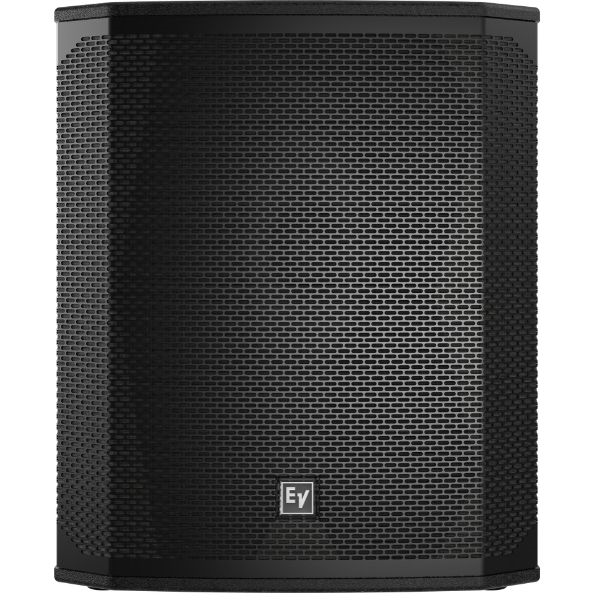

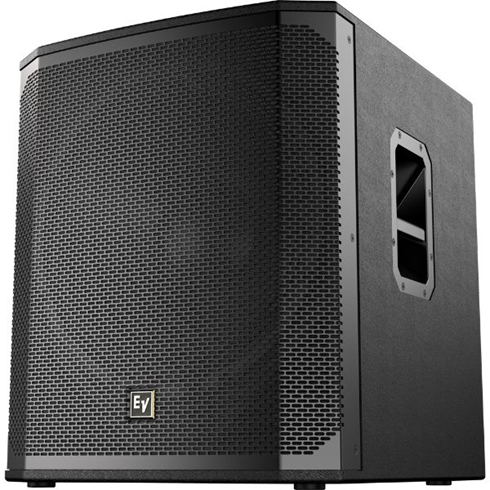

18" Passive Subwoofer
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Available Color
|
Black |
Axial Sensitivity (SPL, 1 W @ 1 m) |
94dB |

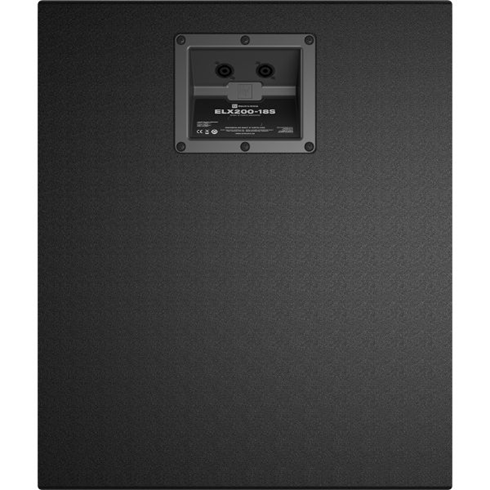

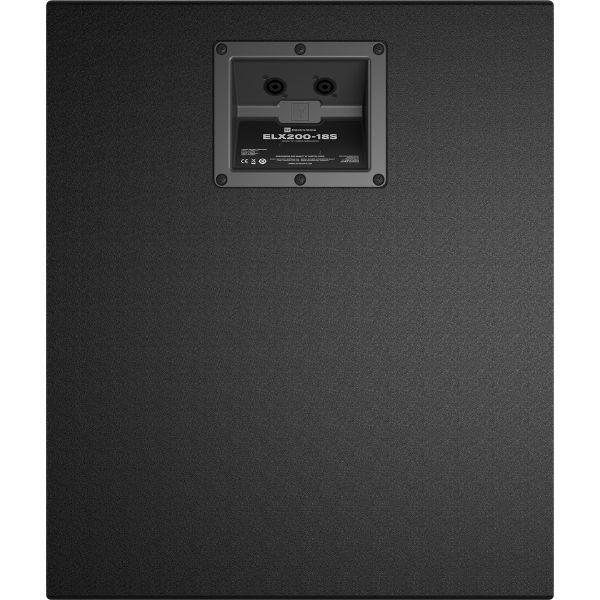

Connector Type |
Dual NL4
|
Depth |
574mm (22.6") |
Enclosure Material |
15 mm plywood with durable polyurea top-coat finish |
Family |
ELX200 |
Frequency Range (-10 dB) |
28 Hz - 300 Hz |
Frequency Response (-3 dB) |
45 Hz - 200Hz |
Grille |
18 AWG steel with powdercoat |
Height |
600mm (23.62") |
HF Transducer |
|
LF Transducer |
EVS-18L 457 mm (18 in) |
Max. SPL/1m (calc) |
133 HzdB |
Minimum Impedance |
7.2 ΩΩ |
Nominal Impedance |
8Ω |
Power Handling (Continuous / Peak) |
400W/1600W |
Power Rating |
1600W |
Recommended High-Pass Frequency |
35 HzHz |
Shipping Weight |
30.5kg (67.24 lbs) |
Speaker Type |
Subwoofer |
Suspension |
|
Weight Net |
26.6kg (58.64 lbs) |
Width |
507mm (19.96") |
Woofer Size |
18inch |
