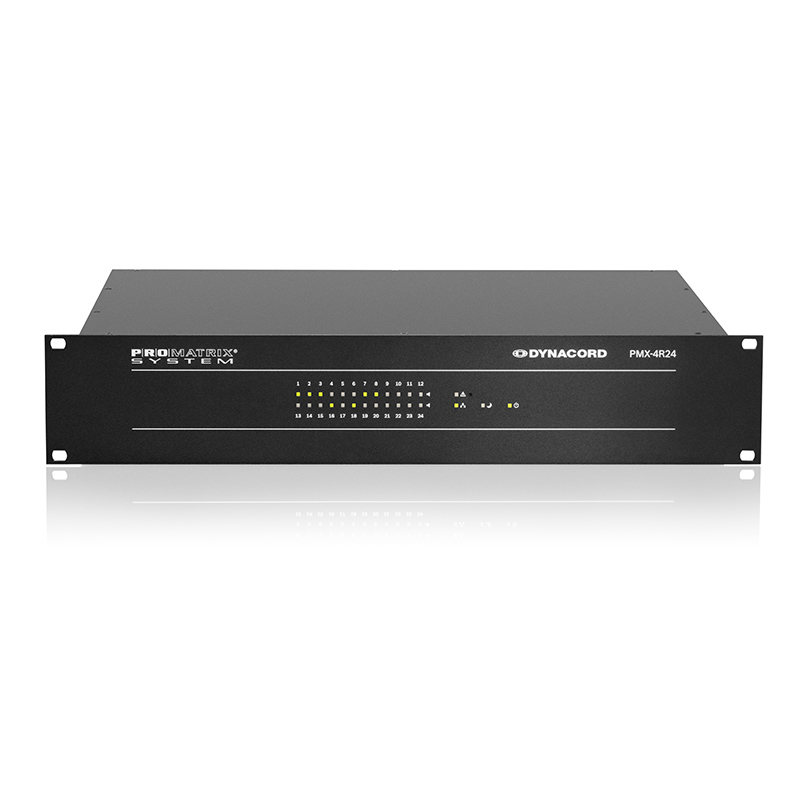

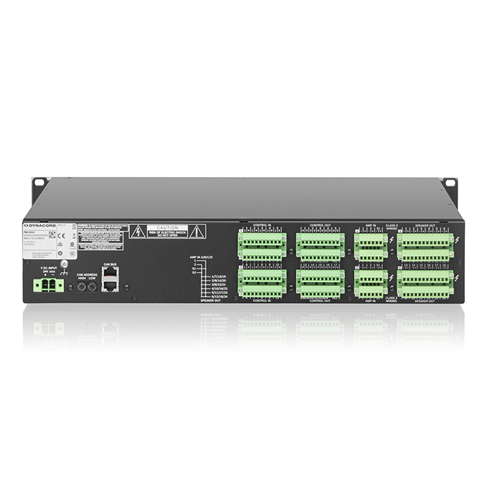

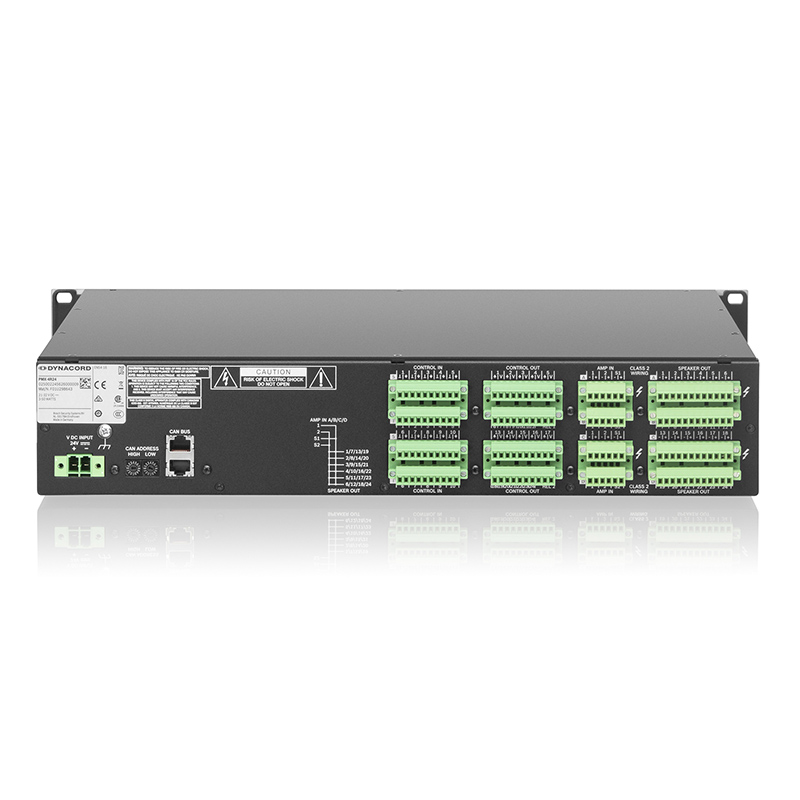

PMX-4R24 ruter je proširenje zonama Promatrix 6000 sistema. Maksimalno 20 rutera može biti povezano na jedan PMX-4CR12 sistemski kontroler.
PMX-4R24 dodaje 24 zone, 20 ulaznih i 24 izlaznih analogno/logičkih kontakta i 2 kontrolna releja, a kontroliše se i nadgleda centralnim kontrolerom preko CAN magistrale.
Ruter može da izdrži opterećenje do 4000W zvučnika, a svaka zona od 2-500W. Signalni indikatori zone na prednjoj strani rutera pokazuju trenutni status svake zone (zelena za audio signal, crvena za govorno obaveštenje i žuta za indikaciju greške).
Electrical
Audio inputs (100 V) AMP IN: 4 ✕ 6-pin port
Max. voltage: 120 Veff
Max. current: 7.2 A
Max. power: 500 W
Audio outputs (100 V) SPEAKER OUT: 4 x 12-pin port
Max. voltage: 120 Veff
Max. current: 7.2 A
Max. power: 500 W
CONTROL IN: 4 ✕ 10-pin port
10 supervised inputs, (0-24 V, Umax = 32 V)
10 isolated inputs (Low: U ≤ 5 V DC; High: U ≥ 10 V DC, Umax = 32 V)
CONTROL OUT: 4 x 10-pin port
24 Low Power outputs (open collector, Umax = 32V, Imax = 40 mA)
Control relay 2 (NO/NC relay contacts, Umax = 32 V, Imax= 1 A)
Interfaces
CAN BUS port: 2 x RJ-45, 10 to 500 kbit/s (for controller, router, amplifier connection)
DC power input: 21-32 V DC
Power consumption: 5-60W
Maximum supply current: Standby < 250 mA, Idle/Announcment/Alert < 800 mA
Environmental
Operating temperature: -5°C to +45°C
Storage temperature: -40°C to +70°C
Humidity (non-condensing): 5% to 90%
Altitude: Up to 2000 m
Mechanical
Dimensions (HxWxD): 88mm x 483mm x 375mm
Weight (net): 8.2 kg
Mouting: Standalone; 19 in. rack
Color: Black
