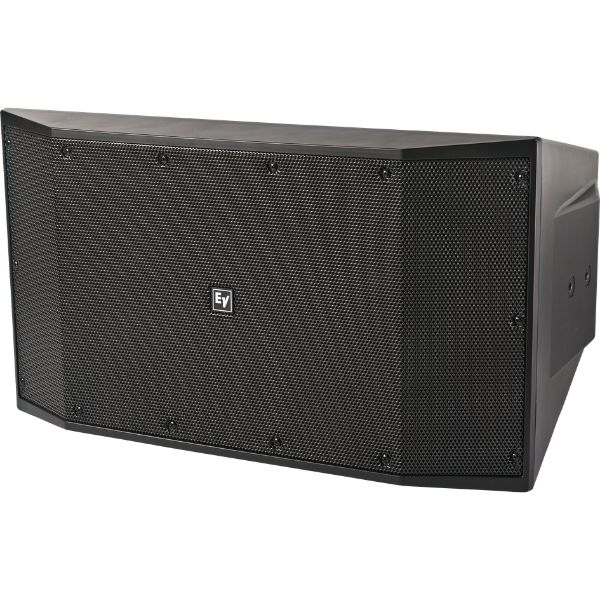

The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.
The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt, and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.

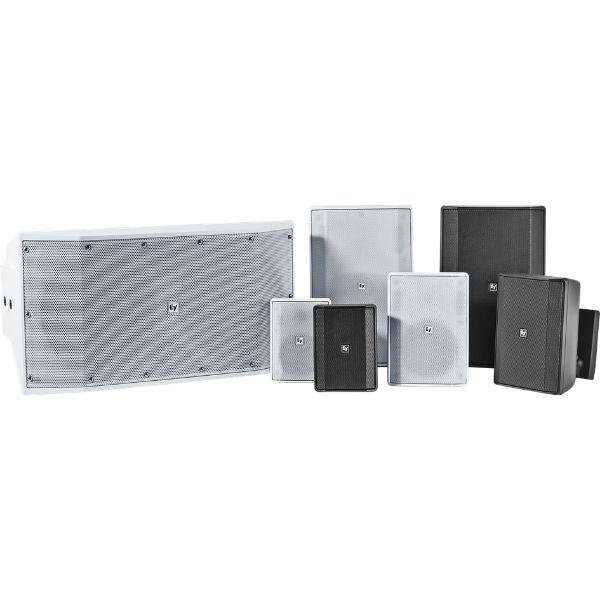

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions and to be used in combination with other EVID ceiling and in-wall speakers.
Frequency Response (-10 dB): 33 Hz – 500Hz
Sensitivity 1 W/1 m: 94dB
Max. SPL/1m (calc): 120dB
Power Handling (Continuous / Peak): 400W/1600W
Nominal Impedance
Stereo Mode: (2) 8Ω;
Mono Mode: (1) 4Ω
Recommended High-Pass Frequency: 40Hz
Transformer Taps (Transformer Version Only): Optional Accessory
LF Transducer: Two 10 inch (254 mm)
Connector Type: Two removable locking 4-pin connector (Euroblock) – Input and output. Max. wire size 12 AWG (2.5 mm).
Weatherized: Yes
Environmental Specs: IP-54 (per IEC-60529); IP-65 with port covers
Regulatory Approvals: IP-54 (per IEC-60529); IP-65 with port covers

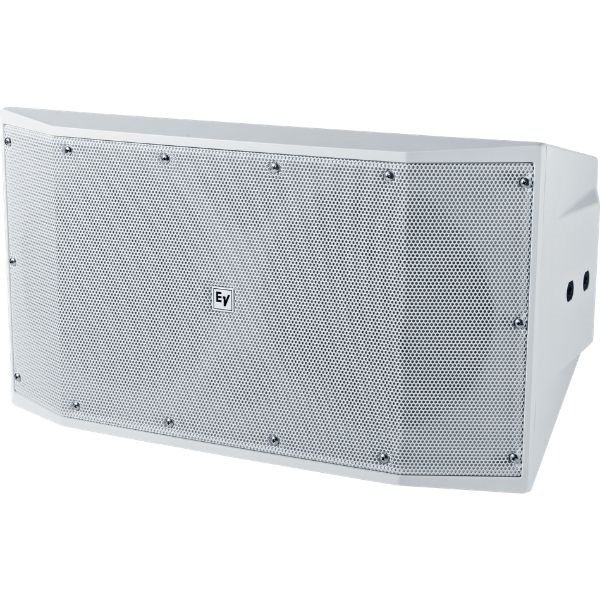

Available Color: Black or White
Height: 356mm
Width: 651mm
Depth: 491mm
Weight Net: 17.9kg
Shipping Weight: 21kg
