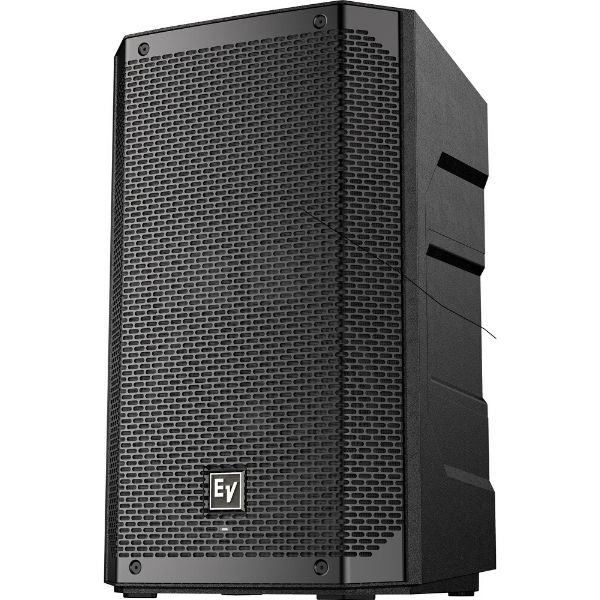

Electro-Voice ELX 200-15P
Electro-Voice ELX 200-15P
Electro-Voice ELX 200-15P
Electro-Voice ELX 200-15P
Electro-Voice ELX 200-15P
Electro-Voice ELX 200-15P

Kod proizvoda:1924

Electro-Voice ELX 200-15P

Aktivna dvosistemska zvučna kutija 15"

126.000,00 108.000,00

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • ELX 200
  • Frekventni odziv (-3dB):
    • 55 - 16K Hz
  • Frekventni opseg (-10dB):
    • 48 - 19K Hz
  • Snaga pojačala:
    • 1200 W
  • Boja:
    • crna
  • Maksimalni SPL:
    • 132 dB
  • Pokrivanje H° x V°:
    • 90° x 60°
  • Visokotonac:
    • DH-1C 1-inch titanium
  • Niskotonac (bas):
    • 15"
  • Materijal:
    • Polipropilen (plastika)
  • Dimenzije Š x V x D:
    • 423 x 710 x 384 mm
  • Težina:
    • 18,9 kg

Opis proizvoda:

15-Inch 2-Way Powered Speaker



Available Color Black

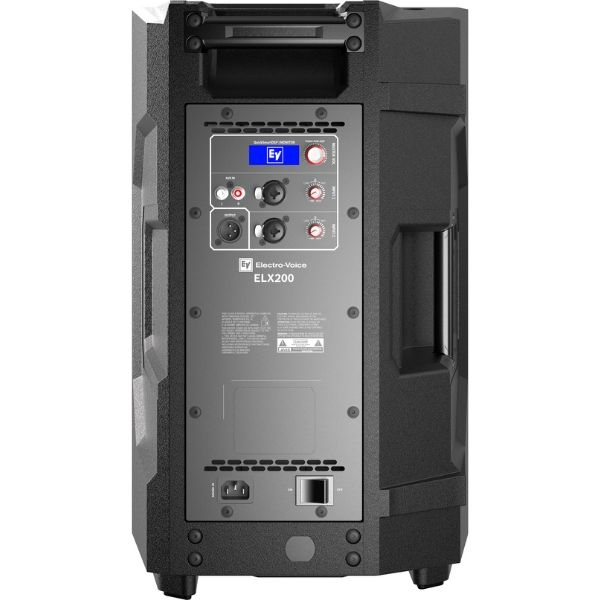

Connector Type (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Coverage (Nominal -6 dB) H

90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 1600Hz
Depth 384mm (15.12")
Enclosure Material Polypropylene Composite
Family ELX200
Frequency Range (-10 dB) 48 Hz – 19 kHz
Frequency Response (-3 dB) 55 Hz – 16 kHz
Grill 18 AWG steel with powdercoat
Height 710mm (27.95")
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-15M 381 mm (15 in)
Max. SPL/1m (calc) 132dB
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating 1200W
Powered or Passive Powered
Shipping Weight 21.8kg (48.06 lbs)
Speaker Type Full-Range
Suspension (3) M10 suspension points
Weight Net 18.9kg (41.67 lbs)
Width 423mm (16.65")
Woofer Size 15inch
