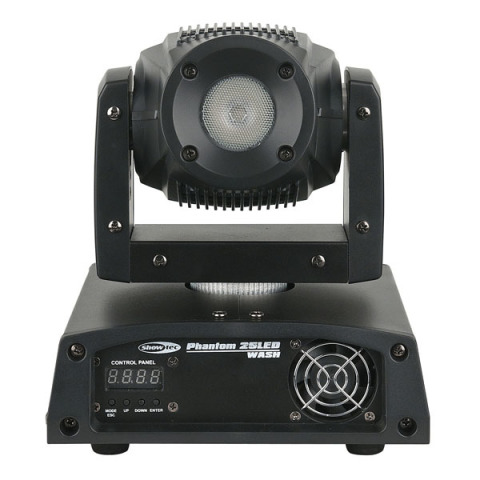

The Phantom 25 LED Wash is a compact and powerful LED moving wash head spot. It is equipped with a 40W 4-in-1 LED light source that brings 4200Lux @ 1m. Besides the RGBW color settings it also has an adjustable color temperature setting. The eight automatic and eight sound to light programs with master / slave function will ensure a quick and easy setup. It has a 6 and 15 channel DMX personality. With his 3,6 Kg and one clamp bracket this wash light is very ergonomic which makes it easy to handle and position in truss systems. The 25 LED wash has all the functionality you desire from a moving wash light. The phantom 25 LED wash is introduced together with the 25 LED spot and 50 LED spot. All units are from one range but with different functions. This makes it easy to combine the Phantom LED series.
Output
Lux @ 1m: 4200
Beam Angle: 25°
Light Source: 40W LED Engin RGBW
Electrical
Input Voltage: 100-240 VAC
Power consumption: 67W max. at full output
LED Drive current: R 1A, G 1A, B 1A, W 1A
Control
On-Board: Display for auto and Sound control
Control Protocol: DMX512
Control Personality: Advanced 15ch /Basic 6ch
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout
User-selectable Pan & Tilt ranges, 540°/360°/180°
Reverse Pan / Tilt movement
Colors
Colormix: RGBW
Options: Color Macros, Adjustable color temperature
Physical
Color: Black
Housing: Metal & Flame-retardant plastic

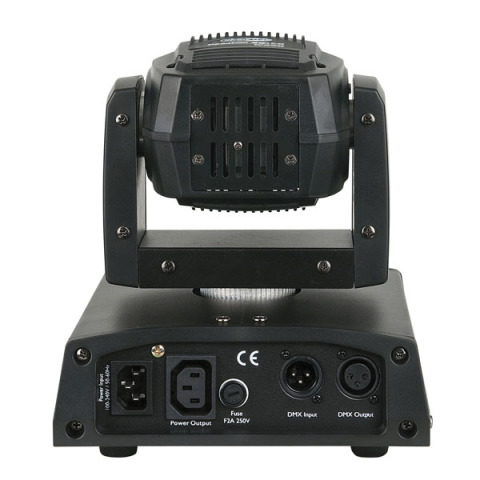

Fixture Connection: XLR Data in/out, IEC Power in
Dimensions (WxDxH): 205 x 210 x 255 mm
Weight: 3,6 kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
