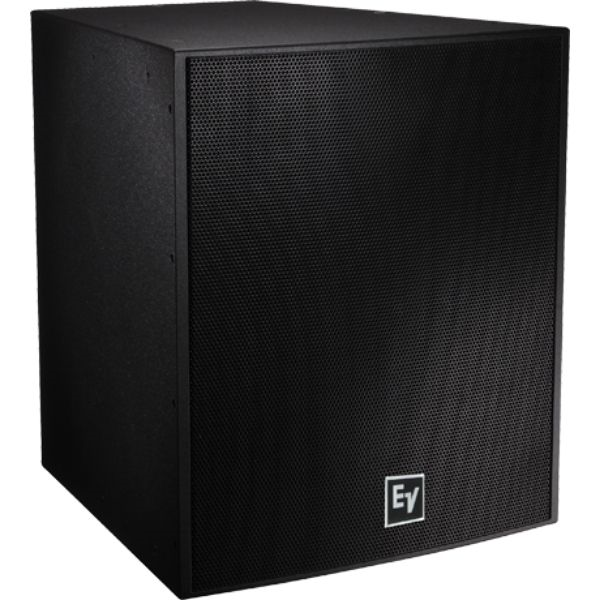

Electro-Voice EVF 1181 S / PIB
Electro-Voice EVF 1181 S / PIB
Electro-Voice EVF 1181 S / PIB
Electro-Voice EVF 1181 S / PIB
Electro-Voice EVF 1181 S / PIB
Electro-Voice EVF 1181 S / PIB

Kod proizvoda:1613

Electro-Voice EVF 1181 S / PIB

Pasivan subwoofer 18" EVS18SB 400/1600W

Pozovite za cenu

Specifikacije proizvoda:

  • Serija:
    • EVF
  • Frekventni odziv (-3dB):
    • 35 - 100 HZ
  • Frekventni opseg (-10dB):
    • 28 - 650 Hz
  • Osetljivost:
    • 99 dB
  • Maksimalni SPL:
    • 131 dB
  • Vršna (peak) snaga :
    • 1600 W
  • Niskotonac (bas):
    • 18"
  • Materijal:
    • Drvo - šperploča
  • IP Zaštita:
    • IP 55
  • Dimenzije Š x V x D:
    • 675,6 x 768,6 x 726,4 mm
  • Težina:
    • 45,9 kg

Opis proizvoda:

Coverage (Nominal -6 dB) Omnidirectional in normal operating range
Environmental Specs Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Nominal Impedance Passive: N/A, Bi-amp: 8 Ω Biamp
Frequency Response (-3 dB) 35 - 100 Hz
Frequency Response (-10 dB) 28 - 650 Hz
Recommended High-Pass Frequency 33 Hz
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 131 dB
System Power Handling (Continuous/Program/Peak) 400, 800, 1600 Watts
LF Transducer EVS18SB, 18 in (457mm) Driver
Minimum Impedance Passive: N/A, Bi-amp: 6 Ω Biamp
Enclosure Material 13 Ply Weather Resistant Birch
Grill Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
Suspension (28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Height 768.6 mm (30.26")
Width 675.6 mm (26.6")
Depth 726.4 mm (28.6")
Weight Net 45.9 kg (101.19 lbs)
