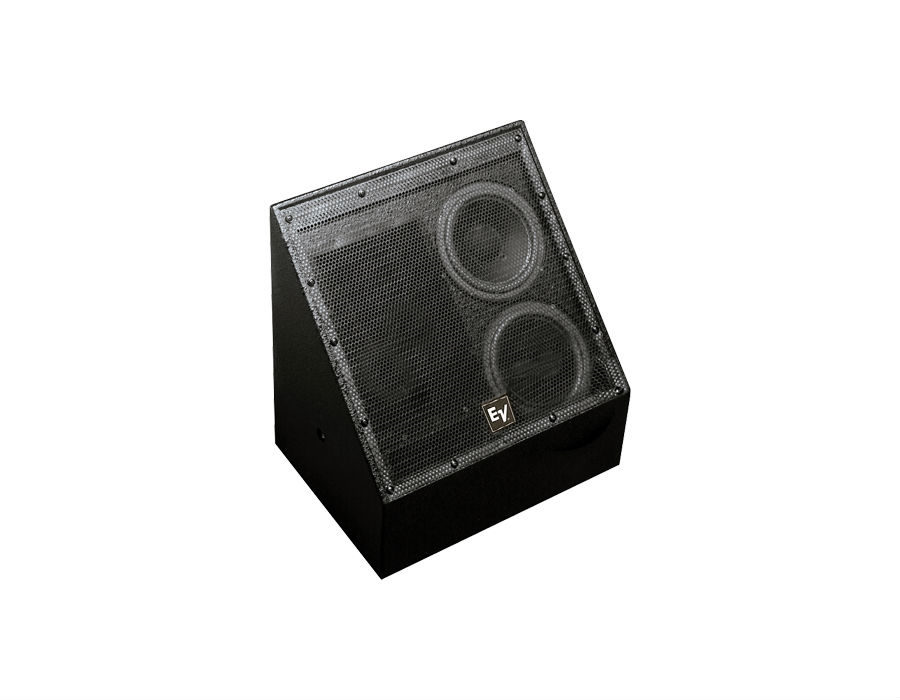

Electro-Voice EVI 28
Electro-Voice EVI 28

Kod proizvoda:1475

Electro-Voice EVI 28

Pasivna dvosistemska zvučna kutija 2 x 8" idealne za pokrivanje prostora u kojima ima reverberacije

Pozovite za cenu

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • EVI
  • Frekventni opseg (-10dB):
    • 60 - 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 93 dB
  • Maksimalni SPL:
    • 123 dB
  • Pokrivanje H° x V°:
    • 65° x 65°
  • Kontinuirana snaga :
    • 250 W
  • Vršna (peak) snaga :
    • 1000 W
  • Visokotonac:
    • DH3/2010A 1.25-inch
  • Niskotonac (bas):
    • 8"
  • Impedansa (oma):
    • 8 oma
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 496 x 353 x 523 mm
  • Težina:
    • 16,3 kg

Opis proizvoda:

Dual eight-inch two-way Variable Intensity loudspeaker



  • Ideal for reverberant spaces
  • Variable Intensity horn for even coverage
  • Two-way, full-range loudspeaker
  • Vented LF enclosure
  • 1.25-inch HF driver with titanium diaphragm
  • PRO™ Driver protection circuit
  • Multi-angled housing
  • Stacked, frequency-shaded woofers for pattern control down to 500 Hz
  • Three 3/8-inch hanging points



Chassis Size 203.2 mm (8")
Input Connections Screw Terminal
Frequency Response (-10 dB) 60 - 20,000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 93 dB
Max. SPL/1m (calc) 123 dB
Coverage (Nominal -6 dB) H 65 °
Coverage (Nominal -6 dB) V 65 °
System Power Handling (Continuous/Program/Peak) 250//1000 Watts
LF Transducer Two 8-inch
HF Transducer 1.25-inch DH3/2010A compression driver (1-inch exit)
Crossover Frequency 2000 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 8 Ω
Outdoor No
Height 353 mm (13.9")
Width 496 mm (19.53")
Depth 523 mm (20.59")
Weight Net 16.3 kg (35.94 lbs)
