Electro-Voice EKX 15S
Electro-Voice EKX 15S
Electro-Voice EKX 15S
Electro-Voice EKX 15S
Electro-Voice EKX 15S
Electro-Voice EKX 15S

Kod proizvoda:1447

Electro-Voice EKX 15S

Passive Subwoofer 15" 400W 133dB

112.800,00 101.520,00

Specifikacije proizvoda:

  • Serija:
    • EKX
  • Frekventni odziv (-3dB):
    • 60 - 100 Hz
  • Frekventni opseg (-10dB):
    • 40 - 300 Hz
  • Osetljivost:
    • 95 dB
  • Maksimalni SPL:
    • 133 dB
  • Kontinuirana snaga :
    • 400 W
  • Vršna (peak) snaga :
    • 1600 W
  • Niskotonac (bas):
    • 15"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 530 x 455 x 551 mm
  • Težina:
    • 24,9 kg

Opis proizvoda:

  • 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Large slot ports for low distortion and excellent bass extension.
  • Metal grille reinforcement bar (two bars on the EKX-18S).

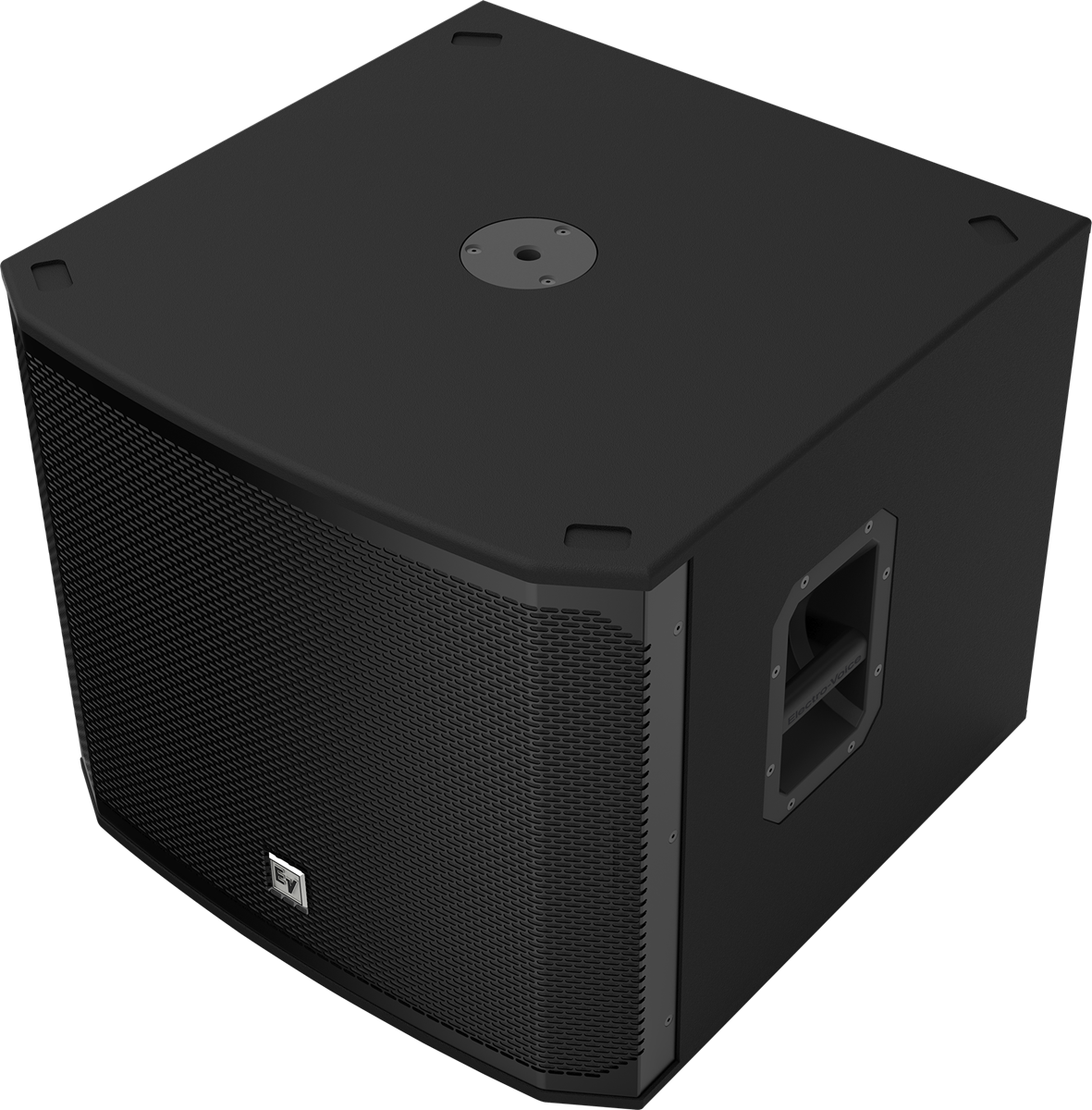

  • M20 threaded pole mount plate.



Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB
Connector Type Dual NL4

60 °
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 40 Hz - 300 Hz Half Space Measurement
Frequency Response (-3 dB) 60 Hz - 100 Hz Half Space Measurement
Grill 18 AWG steel with powdercoat
LF Transducer EVS-15C 381 mm (15 in)
Maximum SPL 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance 7.5 Ω
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 400 W/1600 W
Recommended High-Pass Frequency 35 Hz
Shipping Weight 31.3 kg (69 lbs)
Height 11RU 455 mm (17.91")
Width 530 mm (20.87")
Depth 551 mm (21.69")
Weight Net 24.9 kg (54.9 lbs)



Prikazi više
