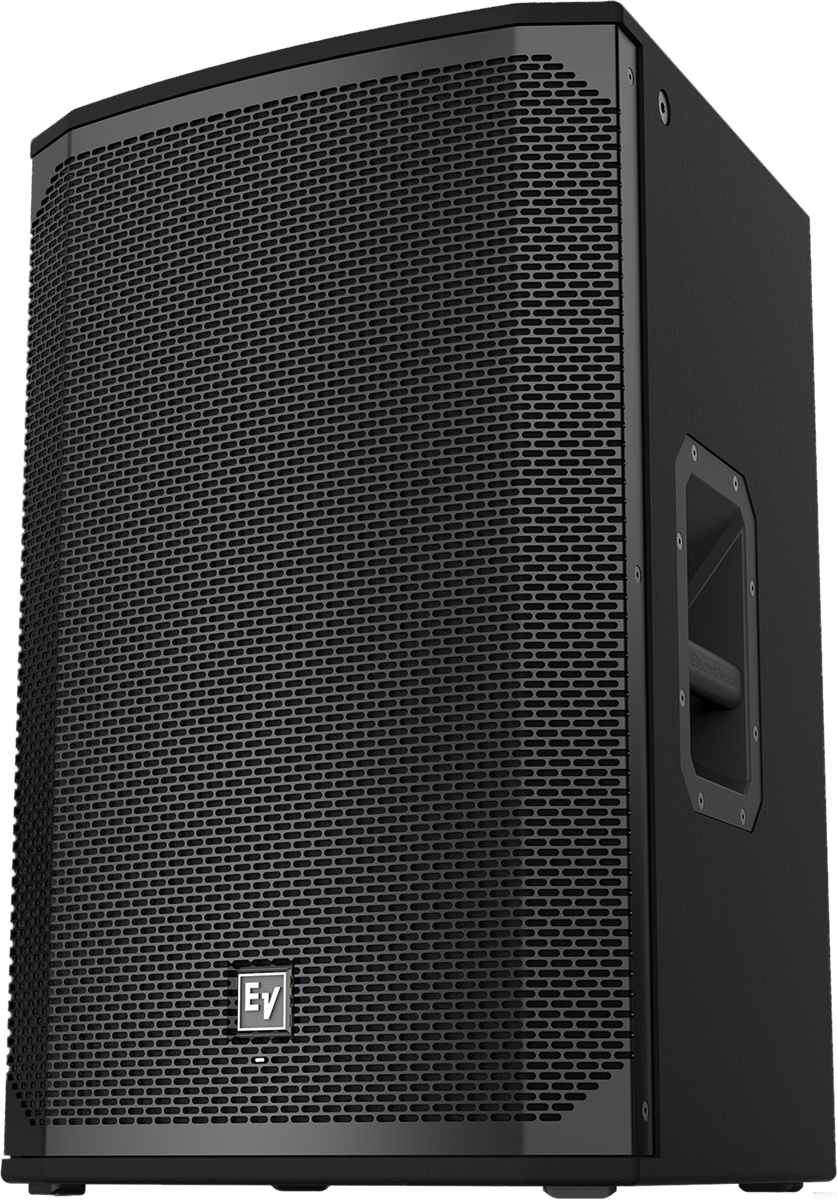

Electro-Voice EKX 15
Electro-Voice EKX 15
Electro-Voice EKX 15
Electro-Voice EKX 15
Electro-Voice EKX 15
Electro-Voice EKX 15

Kod proizvoda:1445

Electro-Voice EKX 15

Pasivna dvosistemska zvučna kutija 15" 400W

105.600,00 95.040,00

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • EKX
  • Frekventni odziv (-3dB):
    • 75 - 18K Hz
  • Frekventni opseg (-10dB):
    • 50 - 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 96 dB
  • Maksimalni SPL:
    • 132 dB
  • Pokrivanje H° x V°:
    • 90° x 60°
  • Kontinuirana snaga :
    • 400 W
  • Vršna (peak) snaga :
    • 1600 W
  • Visokotonac:
    • DH-1M 1-inch titanium
  • Niskotonac (bas):
    • 15"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 432 x 685 x 429 mm
  • Težina:
    • 23,2 kg

Opis proizvoda:

  • EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

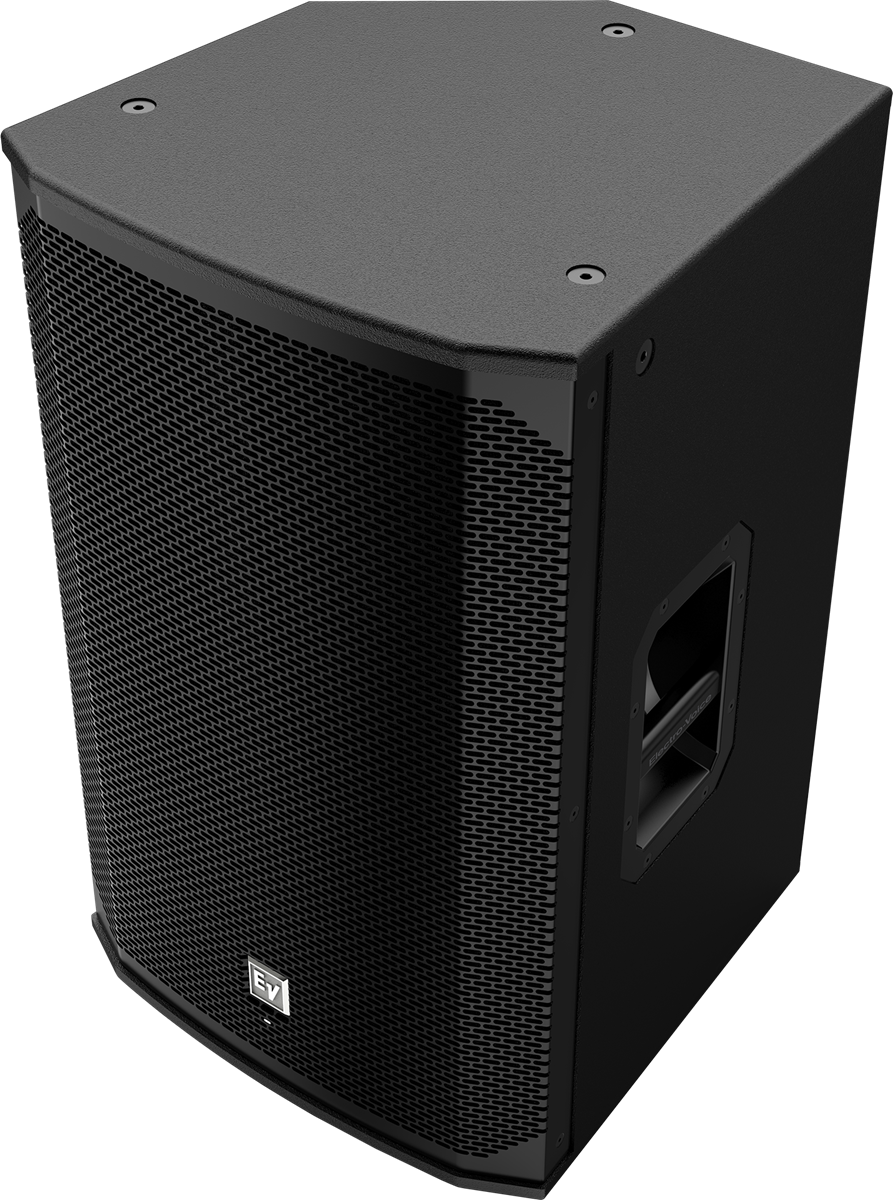

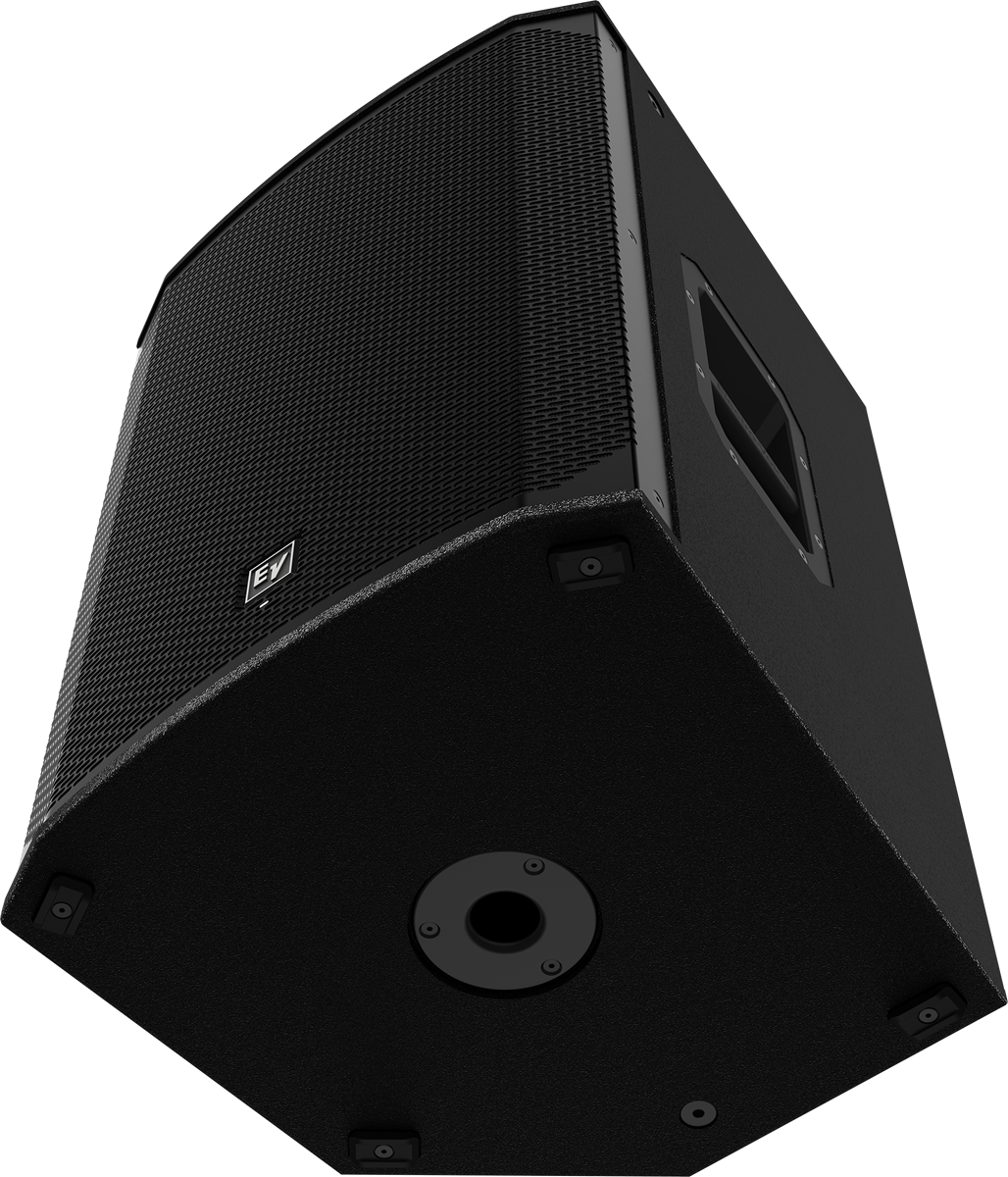

  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
  • 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.



Axial Sensitivity (SPL, 1 W @ 1 m) 96 dB Full Space Measurement
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
Crossover Frequency 1.6 k Hz
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 50 Hz - 20 k Hz Full Space Measurement
Frequency Response (-3 dB) 75 Hz - 18 k Hz Full Space Measurement
Grill 18 AWG steel with powdercoat
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-15M 381 mm (15 in)
Maximum SPL 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance 7.2 Ω
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 400 W/1600 W
Recommended High-Pass Frequency 50 Hz
Shipping Weight 28.2 kg (62.17 lbs)
Suspension (8) M10 threaded mounting points
Height 16RU 685 mm (26.97")
Width 432 mm (17.01")
Depth 429 mm (16.89")
Weight Net 23.2 kg (51.15 lbs)
