Supports Art-Net and sACN protocol
2 universes DMX input or output
Remote Setup Interface
PoE (IEEE 802.3 Af)

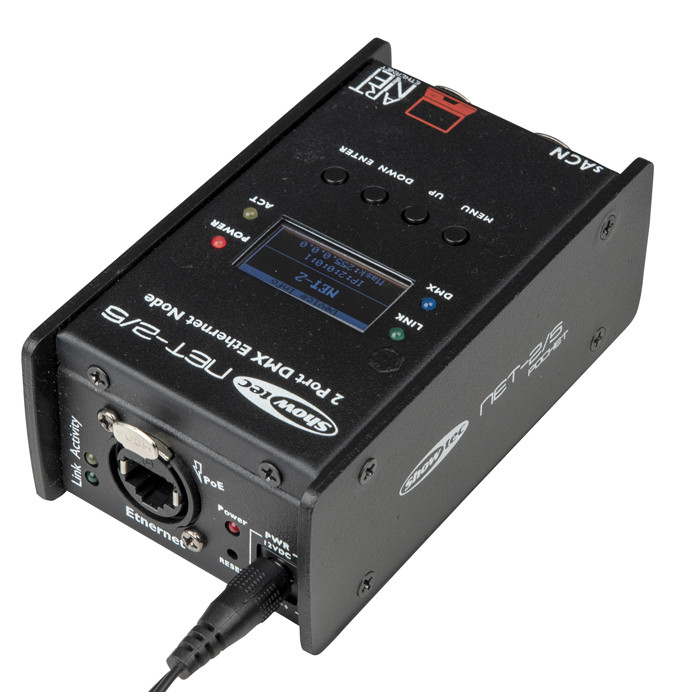

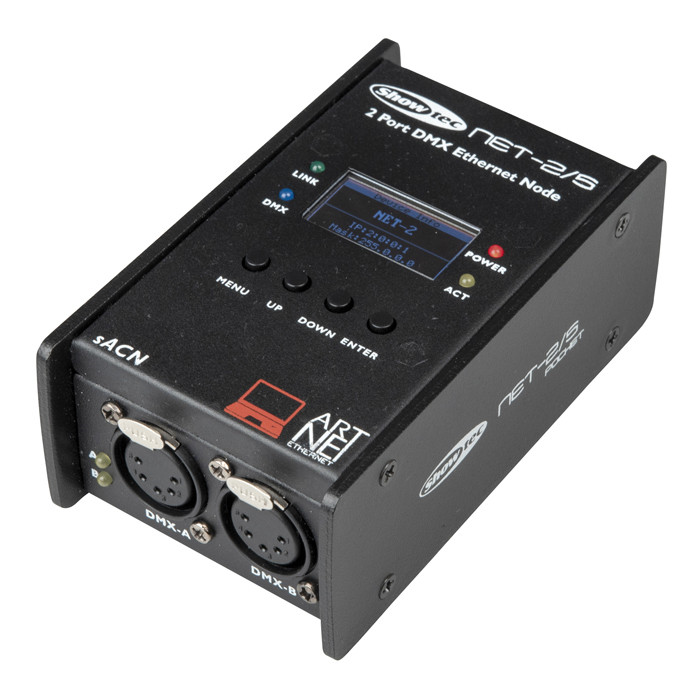

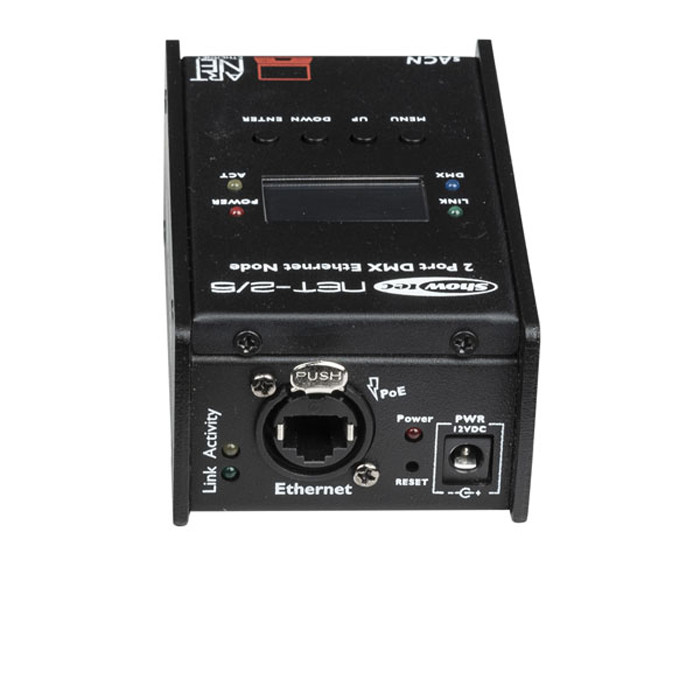

The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert Art-Net or sACN to DMX512 and back. The power input can be provided by POE which makes the 12 V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
Power over Ethernet (PoE): Yes
Power Consumption: 8 W
Power Connector in: Low Voltage DC plug
DMX Connector: XLR 5P In/Out
DMX Connector in: XLR 5P
DMX Connector out: XLR 5P
Data Connector in: etherCON
Length (mm): 115 mm
Width (mm): 67 mm
Height (mm): 44 mm
Weight: 0.3 kg
IP Rating: IP20 (indoor use only)
Housing: Metal, Plastic
Colour: Black
