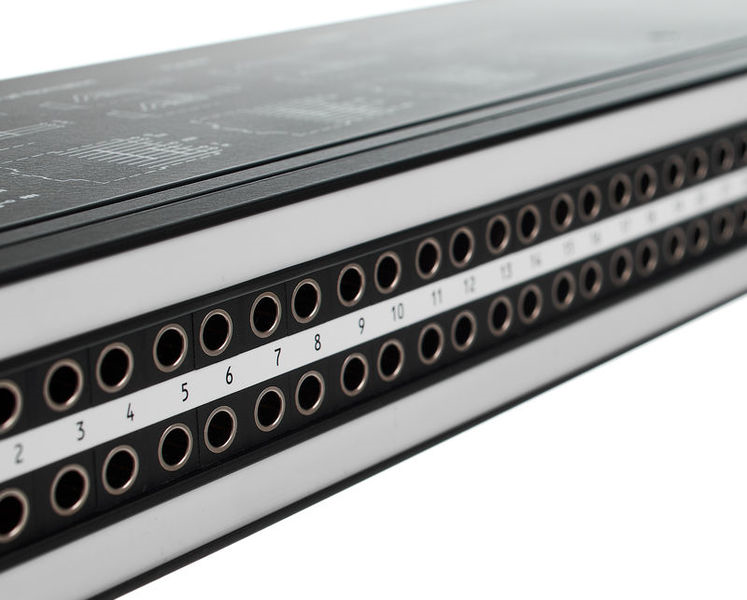

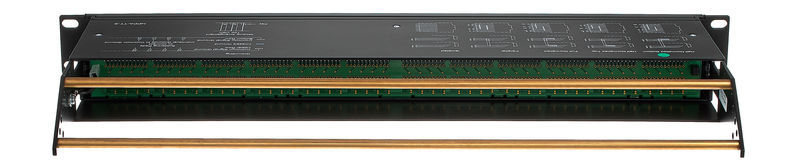

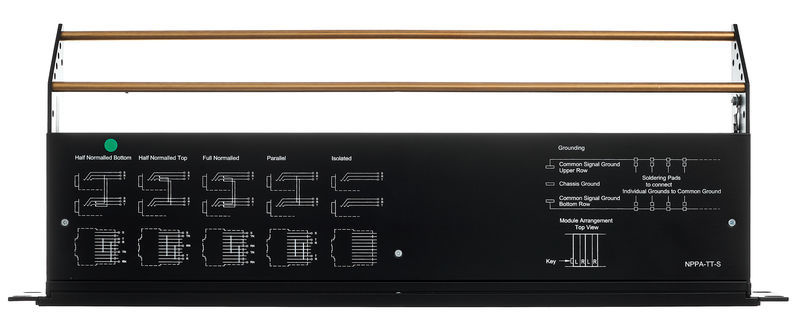

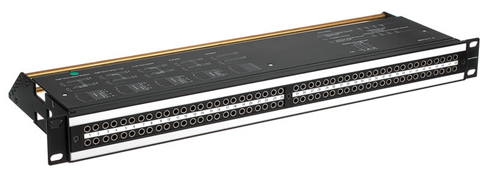

Title: NPPA-TT-S
Connection Type: Patch Panel
Signal Type: Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s)
Contact resistance: 20 mΩ
Contact resistance: < 25 mΩ
Dielectric strength: 1 kVdc
Frequencyrange: DC to > 50 MHz
Insulation resistance: > 1 GΩ
Channel separation: > 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
Insertion force: < 10 N
Withdrawal force: > 8 N
Lifetime: > 5000 mating cycles
Locking device: Retention spring
Contact plating: TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks)
Contacts: Bronze (CuSn6) (Jacks)
Shell: PA 66 blend (Jacks)
Shell plating: Black
Temperature range: -30 °C to +80 °C
