Both the acoustic and the mechanical design of the TS 100 two-way full range cabinet, with its power handling of 15OW / RMS, are optimized for multifunctional applications.
Its certified mounting accessories and unobtrusive styling make the TS 100 suitable for even the most elegant surroundings. The range of applications of the TS 100 is all-embracing, ranging from entertainment installations in bistros, clubs and restaurants to AV applications in places like boardrooms, trade fairs and hotels as well as front-fill in theatres. Due to their nominal impedance of 16 ohms, up to eight TS 100 cabinets can be operated through a single power amplifier channel.
With a weight of only 7.1 kg, the TS 100 displays its true metal in mobile use as well, forming an extremely light PA system (in combination, for example, with the PowerSub 312) and convincing through very high sound pressure levels and outstanding sound quality.

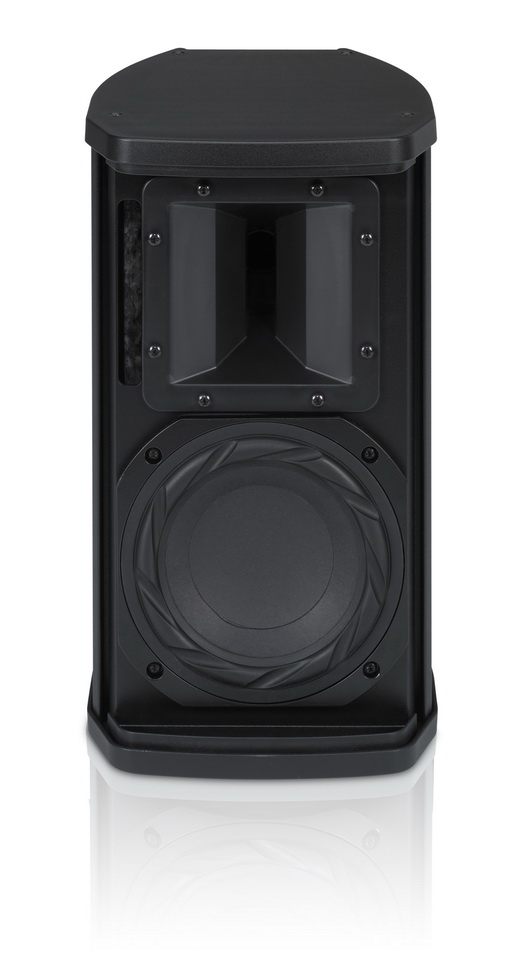

For the low- and medium frequency ranges, the extremely low-distortion DND 6130-16 neodymium chassis is used. The high frequencies are handled by an HPT94 constant directivity horn that can be rotated through 90° with extreme ease for horizontal applications. The driver, an Electro-Voice DH3, is remarkable for its brilliant high-frequency reproduction. All loudspeakers are electronically protected from thermal overload.
The base of the cabinet is equipped with a socket to receive a mounting pole. For installation applications in which this flange is aesthetically undesirable, a second end-cap without such an opening is included; it is very simple to replace one type of end-cap with the other.
For fixed installation, the WMK-10 mounting kit is available. The optional FB-TS400 flying kit facilitates suspension of the device safely from a truss. Another highly practical accessory is the SH-TS100 transport bag.
Linear phase FIR (finite impulse response) factory presets are available as well as presets for conventional digital controllers.
Color Black (RAL 9005, jet black)
Cabinet Full-range
Configuration Passive 2-Way
Nominal impedance 16 Ω
Power handling: Full-range
• Rated power RMS 150 W
• Program power 300 W
• Peak power 600 W
SPL 1 W/1 m 94 dB
Max. SPL at 1 m (calculated with peak power) 122 dB
Frequency range (-10 dB) 80–20000 Hz
Nominal coverage angle 90° x 40°
X-Over frequency 2200 Hz
Voice coil tracking protection Halogen
Component HIGH Electro-Voice DH-3
Component LOW DND 6130-16
Connector
• Model 2 x NEUTRIK speakON NL4
• Contacts full-range 1+, 1-
• Contacts wired through 1+, 1-
Product dimensions (Width x Height x Depth) 199 x 350 x 239.5 mm
Net weight 7.1 kg
Enclosure material Aluminum
Grille Steel
Suspension 4 x M6
