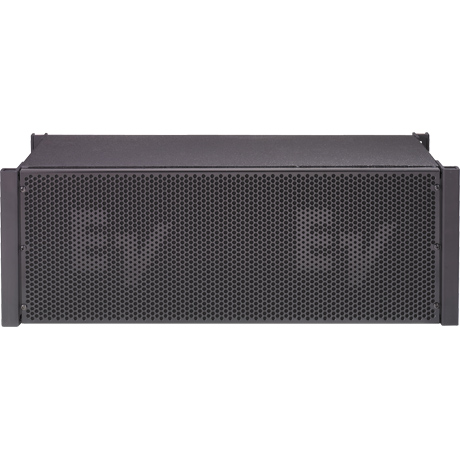

The XLD281 is a three-way design using Coverage Control Technology (CCT™) to provide control horizontal coverage to 250Hz. The XLD281 uses an 8“, neodymium, low-frequency transducer, an 8“, neodymium, LF/MB transducer, and two neodymium, 2“, voice-coil compression drivers combining through two Hydra™ plane wave generators into a 120 degree x 10 degree waveguide. The XLD281 can be used in triamp mode, or in biamp using a sophisticated internal passive network.
Frequency Response (-3dB): 75 - 18000 Hz
Frequency Response (-10dB): 60 - 20000 Hz
Max. SPL / 1m (calc): 141 dB
Coverage (nominal -6dB): H° 120 °
Low Frequency Power Handling (continuous/program/peak): 200/400/800 Watts
Mid Frequency Power Handling (continuous/program/peak): 200/400/800 Watts
High Frequency Power Handling (continuous/program/peak): 80/160/320 Watts
LF Transducer: DVN2080
MF Transducer: DVN2080
HF Transducer: ND2
LF Nominal Impedance: 16 Ohms
MF Nominal Impedance: 16 Ohms
HF Nominal Impedance :16 Ohms
Color: Black
Flying: Included
Flying :Yes
Input Connections: 2 Neutrik® NL8
Outdoor: No
Chassis Size: 8 inches
Internal Crossover: Selectable
Speaker: Type Line Arrays, Three-Way
Weight Net: 21.8 kg ( 48.06 lbs )
Dimensions (HxWxD): 251 x 726 x 369 mm
