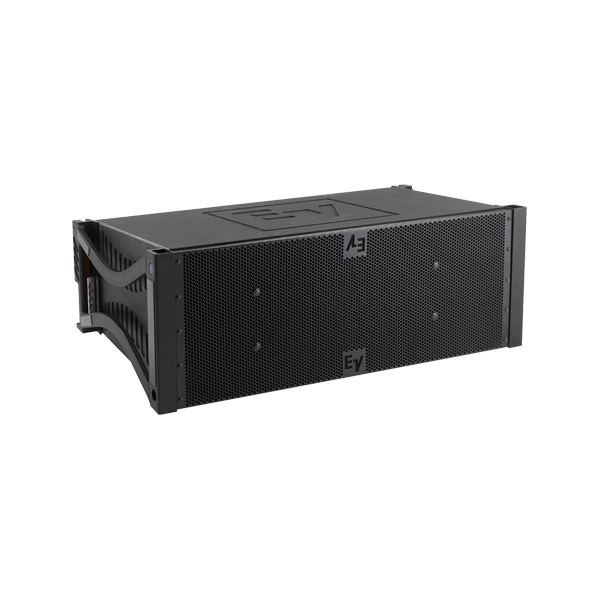

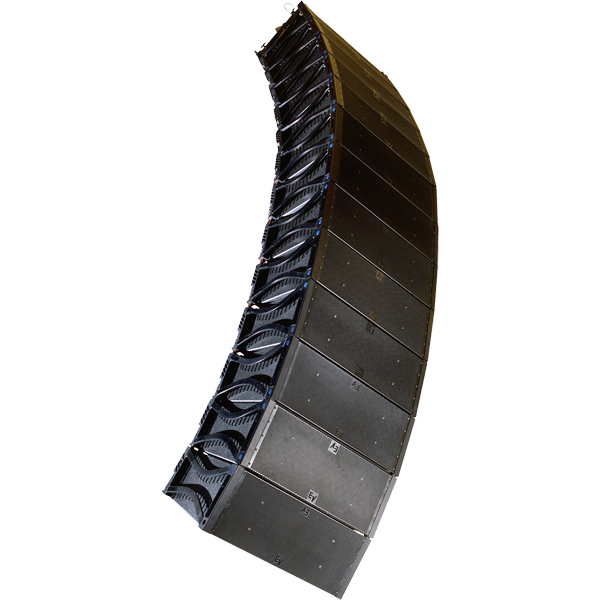

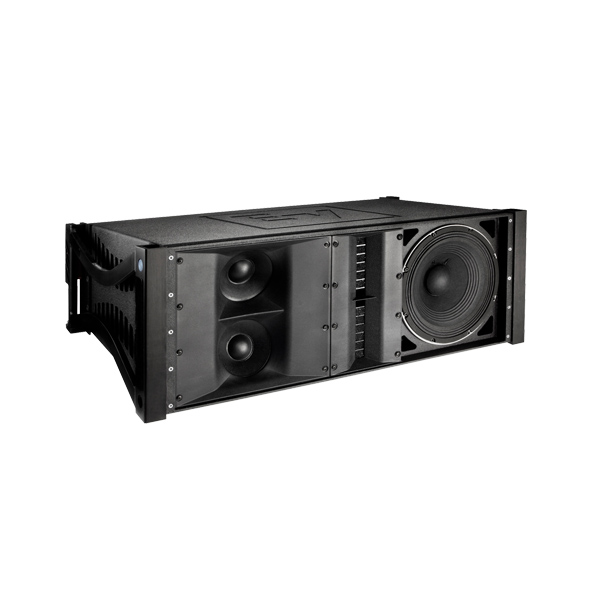

The XLC127DVX three-way, single DVX3121 12“ low-frequency, two 6.5“, horn-loaded midbass DVN2065 woofers in a vertical array and two ND6 (three“ voice-coil) neodymium compression drivers loaded on two Hydra™ plane wave generators. 120 degrees, is designed for triamp operation. For biamp operation, a x-over for mid-bass and high frequencies is available as an accessory. The Xlci127DVX version is designed for permanent installation applications, with specially designed mounting hardware for easy, cost-effective hanging.
Frequency Response (-3dB): 65 - 18000 Hz
Frequency Response (-10dB): 50 - 20000 Hz
Max. SPL / 1m (calc): 150 dB
Coverage (nominal -6dB): H° 120 °
Low Frequency Power Handling (continuous/program/peak): 500/1000/2000 Watts
Mid Frequency Power Handling (continuous/program/peak): 300/600/1200 Watts
High Frequency Power Handling (continuous/program/peak): 150/300/600 Watts
LF Transducer: DVX3121 12" Driver
MF Transducer: DVN2065 6.5" Driver
HF Transducer: ND6-16
LF Nominal Impedance: 8 Ohms
MF Nominal Impedance: 8 Ohms
HF Nominal Impedance: 8 Ohms
Color: Black
Flying: Included
Flying: Yes
Input Connections: 2 Neutrik® NL8
Outdoor: No
Chassis Size: 12 inches
Internal Crossover: Selectable
Speaker: Type Fullrange, Line Arrays, Mid-High, Three-Way
Weight Net: 52.2 kg ( 115.08 lbs )
Dimensions (HxWxD): 362 x 991 x 572 mm
