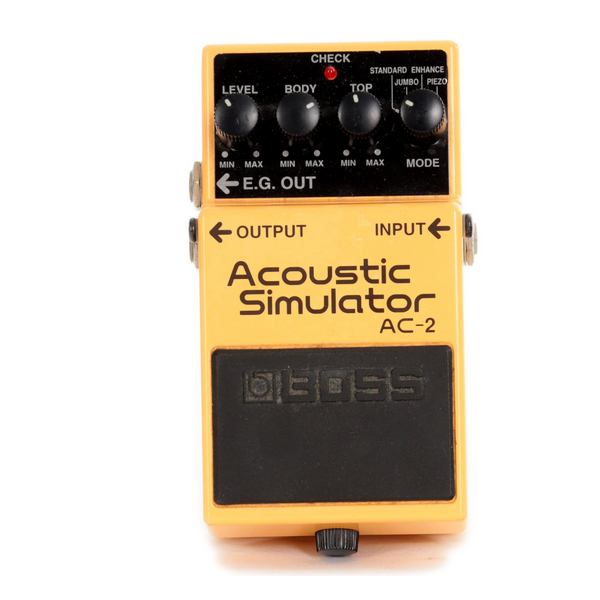

The BOSS AC-2 Acoustic Simulator is a compact effects pedal designed to change the sound of a standard electric guitar into that of an acoustic-electric guitar.
Delivers amazing acoustic guitar simulation using a standard electric guitar
Four acoustic "modes" give guitarists distinct acoustic sounds: "Standard," "Jumbo," "Enhanced" and "Piezo"
"Top" knob adjusts the effect's overall brilliance and harmonics
"Body" adjusts the resonance of the simulated acoustic guitar body
Individual outputs for effected and un-effected sound allow for the use of separate signal chains and amplifiers
-
Nominal Input Level
-
-20 dBu
-
Input Impedance
-
1 M ohms
-
Nominal Output Level
-
-20 dBu
-
Output Impedance
-
1 k ohms
-
Residual Noise Level
-
-80 dBu (IHF-A Weighted, Typ.)
-
Connectors
-
INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
-
Power Supply
-
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
-
Current Draw
-
18 mA (DC 9 V)
-
Accessories
-
Dry Battery 9 V type (6F22/9 V)
-
Option
-
AC Adaptor (PSA-Series)
-
Size and Weight ( incl. battery )
-
Width
-
73 mm
-
2-7/8 inches
-
Depth
-
129 mm
-
5-1/8 inches
-
Height
-
59 mm
-
2-3/8 inches
-
Weight
-
0.4 kg
-
1 lbs.
