Coverage (Nominal -6 dB) |
Omnidirectional in normal operating range |
|
Environmental Specs |
Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55 |
|
Input Connections |
Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
|
Nominal Impedance |
Passive: N/A, Bi-amp: 8 Ω Biamp |
|
Frequency Response (-3 dB) |
35 - 100 Hz |
|
Frequency Response (-10 dB) |
28 - 650 Hz |
|
Recommended High-Pass Frequency |
33 Hz |
|
Sensitivity 1 W/1 m |
99 dB |
|
Max. SPL/1m (calc) |
131 dB |
|
System Power Handling (Continuous/Program/Peak) |
400, 800, 1600 Watts |
|

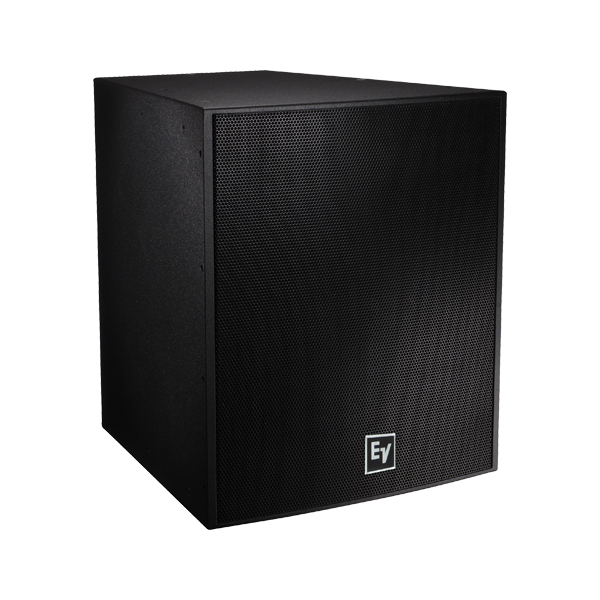

LF Transducer |
EVS18SB, 18 in (457mm) Driver |
|
Minimum Impedance |
Passive: N/A, Bi-amp: 6 Ω Biamp |
|
Enclosure Material |
13 Ply Weather Resistant Birch |
|
Grill |
Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind |
|

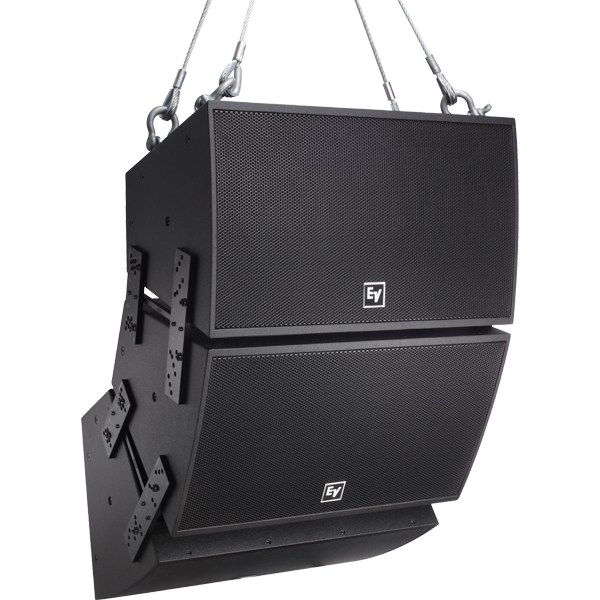

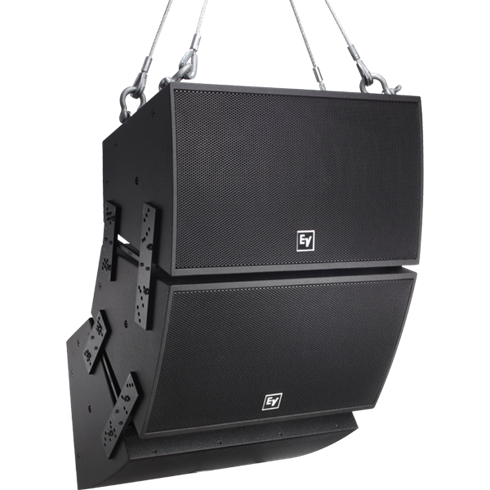

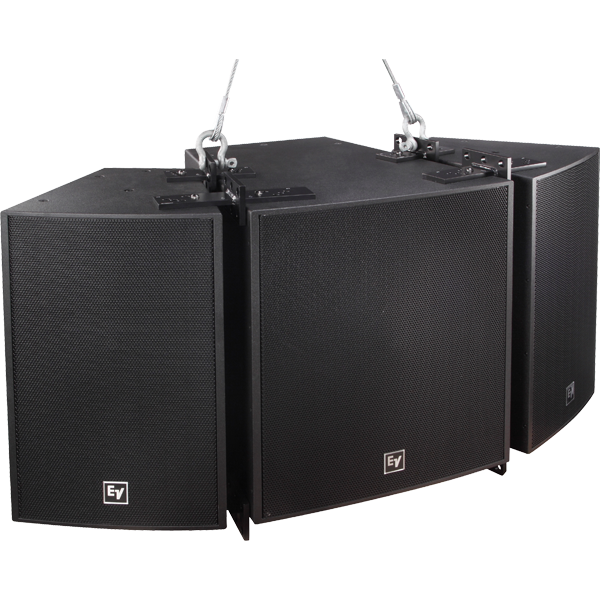

Suspension |
(28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) |
|
Height |
768.6 mm (30.26") |
|
Width |
675.6 mm (26.6") |
|
Depth |
726.4 mm (28.6") |
|
Weight Net |
45.9 kg (101.19 lbs) |
