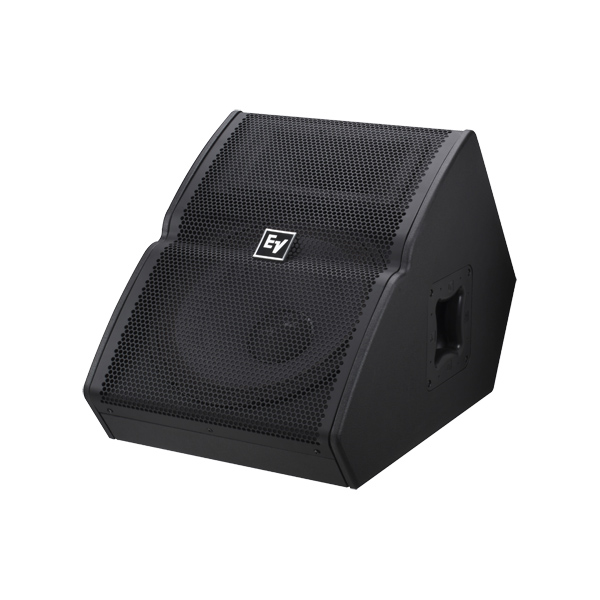

With an undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come. The TX1122FM and TX1152FM advance the legacy of the globally accepted EV FM series and advance it with a healthy dose of innovative Electro-Voice® engineering.

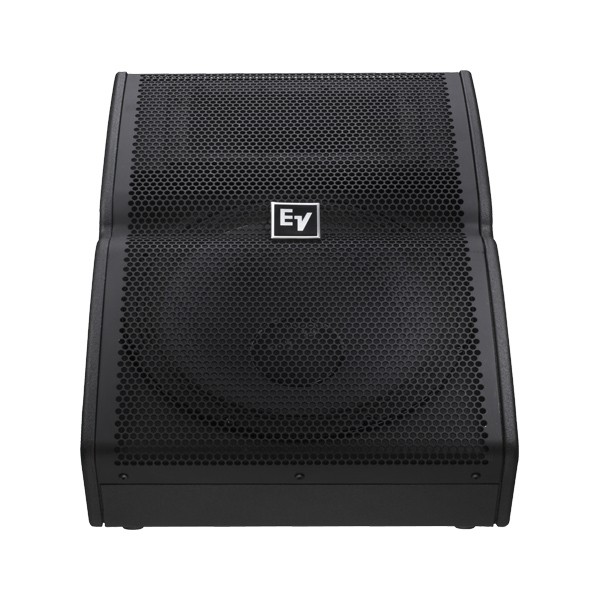

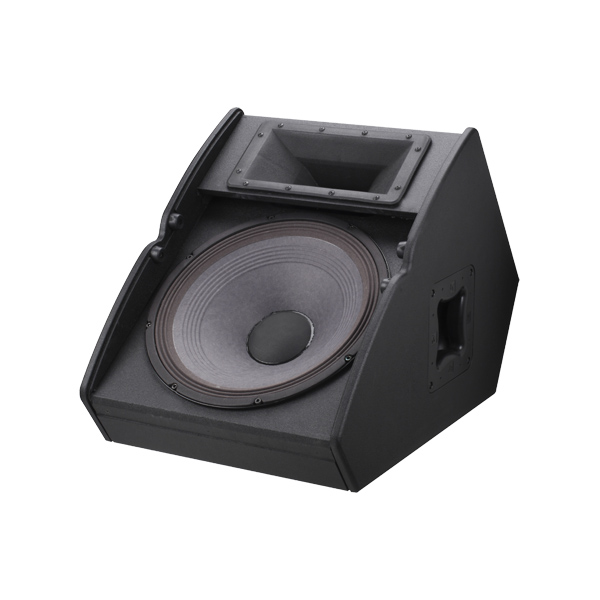

The most notable innovation of the Tour X FM models is the split baffle design with patent-pending SST (Signal Synchronized Transducers) technology. A split baffle creates two very important benefits: moving the acoustic origins of the compression driver and woofer close together, and the split in the baffle becomes the port, allowing for a much more compact enclosure. The result of this design is “signal synchronized” with nearly perfect phase summation. With a unique Backbone grille, Tour X FM models not only look great, but also provide greater strength and damage resistance than ordinary grille block designs. Proprietary, ergonomically correct handles and angled input panels make the Tour X FM models easy to transport and set up in critical stage monitoring applications.
Frequency Response (-3dB): 65 - 20000 Hz
Frequency Response (-10dB): 45 - 20000 Hz
Recommended High-Pass Frequency: 45 Hz
Sensitivity 1W/1m: 100 dB
Max. SPL / 1m (calc): 133 dB
Coverage (nominal -6dB) H°: 90 °
Coverage (nominal -6dB) V°: 50 °
Rotatable Horn: No
System Power Handling (continuous/program/peak): 500/1000/2000 Watts
LF Transducer: SMX2151
HF Transducer: DH3
Crossover Frequency: 1750 Hz
Nominal Impedance (Passive): 8 Ohms
Minimum Impedance: 6.2 Ohms
Enclosure Material: Plywood and MDF with EVCOAT
Color: Black
Flying: No
Input Connections: Parallel Neutrik® NL4
Internal Crossover: Yes
Speaker Type: Fullrange
Weight Net: 23.5 kg
Dimensions (HxWxD): 475 x 439 x 655 mm
