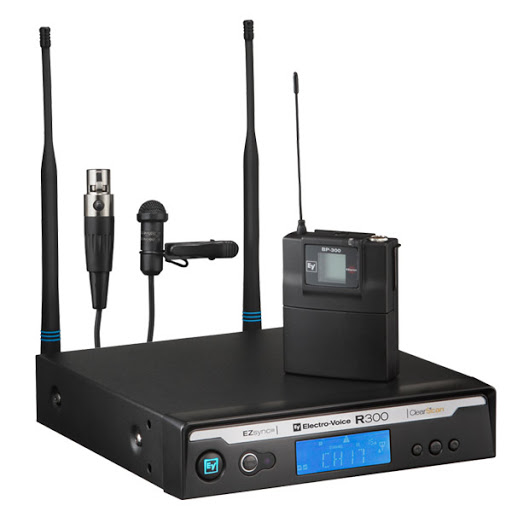

BP-300 is an all new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA batteries for 14 hours of use, the BP-300 is one of the most economical transmitters around for applications that require daily operation. The mute function keeps the RF signal live while it mutes the audio to protect your channel and prevent noise in the audio system. The TA4 connector allows the use of any EV lapel or headworn microphone for a variety of applications. The receiver for the R300 system is equally at home on a table top or in a 19 inch equipment rack. Rack mount kits and front mount antenna cables are available for the R300 for a professional installation. For applications with up to 4 receivers in one rack, the APD4+ antenna splitter can provide antenna and power feeds.
Antennas: Flexible TNC 1/2 Wave
Audio Frequency Response: 80 Hz - 18kHz +/- 2dB
Balanced Line Level Output (RMS Adjustable): 10 - 100 mV
Battery Life: 14 Hours with (2) AA alkalines typical
Case Material: Metal
Connector Type: 1/4 inch unbalanced, 3-Pin XLR balanced
Controls: On/Off, Set, Up, Down, Sync
Distortion (@ 1 kHz, 40 kHz deviation): less than 1.0, 0.4 typical %
Diversity: True Antenna
Dynamic Range: > 95 dB
Dynamic Range: greater than; 95 dB
Element: PL22 Cardioid Dynamic
Element: ULM-18 Uni-directional lapel
Number of Channels: 32 Per Band, 8 Simultaneous
Power Supply: 12 VDC, 500 mA max
Receiver Type: Synthesized PLL, Agile UHF
RF Frequency Range: 16 MHz
RF Output: 8 mW Typical
RF Sensitivity (12 dB SINAD): < 1.0 uV
RF Sensitivity (12 dB SINAD): Less than 1.0 uV
Signal-to-Noise Ratio (A-weighted): > 100 dB
Signal-to-Noise Ratio (A-weighted): greater than 100 dB
Squelch: Tone code plus Amplitude
