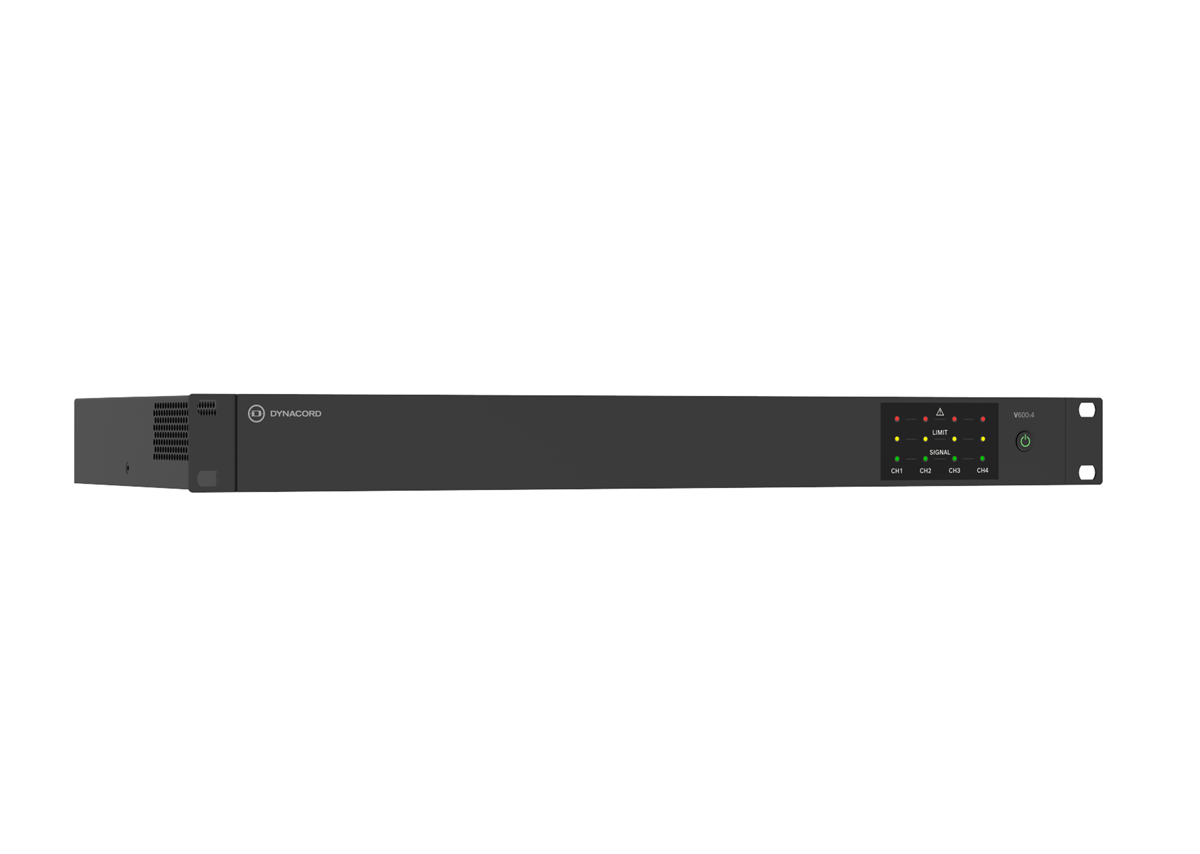

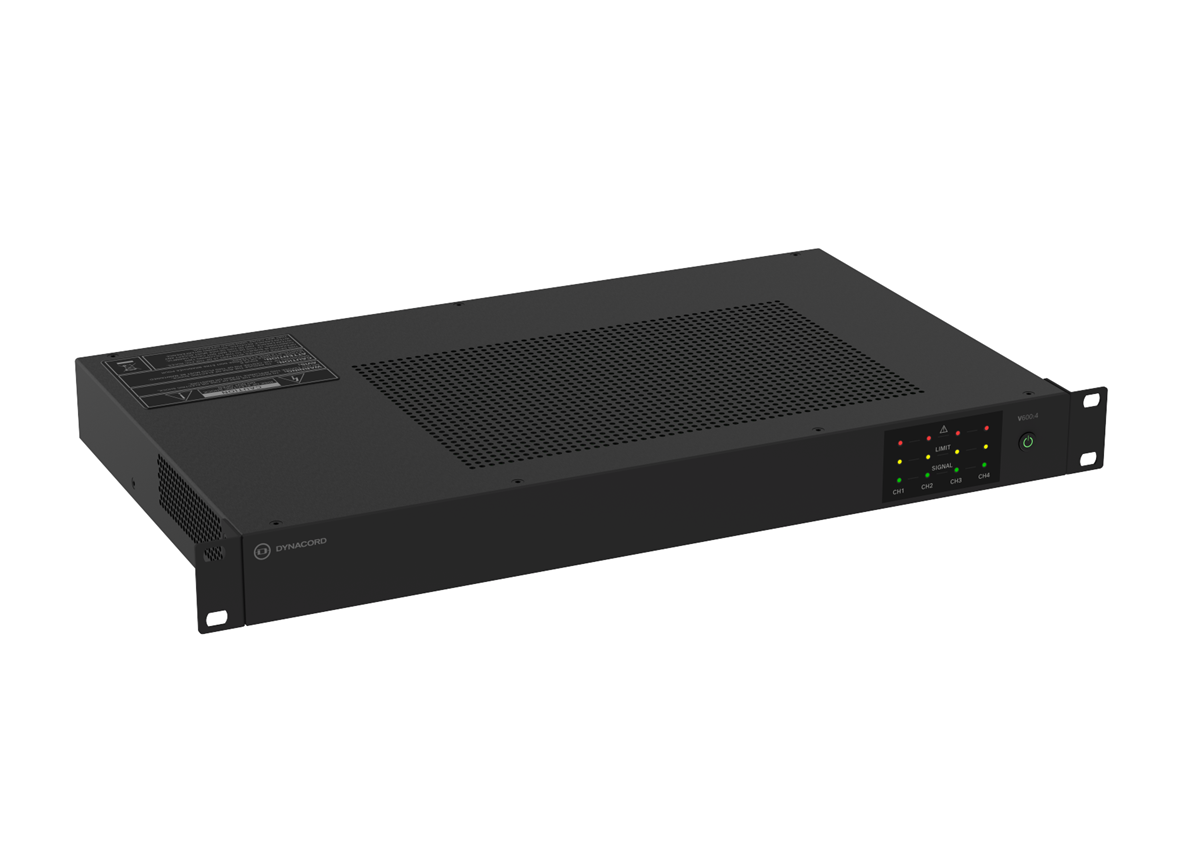

Multi-channel power amplifier for commercial installations
-
Versatile, lightweight four-channel power amplifier at an attractive price point, recommended for background music and announcements in small to mid-sized commercial installations
-
Unique Dynacord technologies for reduced cost of ownership, with low energy consumption and flexible power-load allocation
-
Easy handling and trouble-free amplifier operation – even under demanding power conditions – in a compact 1RU form factor
The V600:4 is perfect for small to mid-sized installation scenarios such as education, hospitality, retail, houses of worship and more. The four-channel power amplifier with a total power of 600 Watts is recommended as a go-to power amplifier for consultants, installers and specifiers who are looking for a sturdy, extremely versatile amplifier that is quick to install and runs trouble-free – even under demanding power conditions.
With a compact 1RU form factor requiring minimal rack space, the V600:4 is fully equipped with best-in-class features and innovative new Dynacord technologies to offer building owners an optimal combination of real professional performance and resource-efficient power consumption, all at a very attractive price point. The newly developed Dynacord powerTANK technology adds even more installation flexibility, working like a power reservoir for the amplifier. With direct access to the total power of 600 Watts, the V600:4 can deliver asymmetric power across all channels as needed. There is no waste of energy, which allows great flexibility – especially when driving multiple audio zones with different loads. For example, a single V600:4 can simultaneously serve as system drive for the compact loudspeakers in a small zone (such as a kitchen area) as well as for larger loudspeakers (such as in an auditorium). Contributing to the ease of installation, this feature does not require any special configuration skills – powerTANK engages automatically. In conjunction with a DSP matrix – such as the Dynacord MXE5 Matrix Mix Engine – the V600:4 can also be specified for larger distributed installations working as a distribution amplifier for smaller zones.
Features
powerTANK
powerTANK is a reservoir of available amplification power that is deployed flexibly across the 4 channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.
Variable Load Drive
Variable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel with any impedance. dualCOOL The dualCOOL thermal design means that the amplifier typically operates as a convection cooled amplifier, but in extreme thermal conditions the amplifier is also equipped with an intelligent multi‑speed fan to ensure maximum performance and reliability in any application.
ecoRAIL
ecoRAIL’s power consumption is similar to a regular standby level, yet ecoRAIL still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can be engaged to further reduce power consumption to less than a watt when there is no signal present for extended periods.
amp‑LINK
The single cable installation feature of amp‑LINK is compatible with AES72‑1E (RJ45 connectors) wired devices. This solution provides easy installation for all four channels without needing to wire all the connections individually.
PFC power supply
Equipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, means that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.
SPECIFICATIONS
|
|
4 Ω
|
8 Ω
|
70 V
|
100 V
|
|
Electrical
|
|
Output power
|
|
Rated output power 1
|
4 x 150 W
|
|
Maximum output power per channel (power sharing) 1 at minimum impedance
|
500 W
|
600 W
|
500 W
|
600 W
|
|
Total rated output power 1
|
600 W
|
|
Number of channels
|
4
|
|
Output voltage rated output power
|
24.5 V RMS
|
34.6 V RMS
|
70.7 V RMS
|
100 V RMS
|
|
Maximum output voltage
|
40.0 V RMS
|
56.0 V RMS
|
70.7 V RMS
|
100 V RMS
|
|
Rated impedance per channel
|
4 Ω
|
8 Ω
|
33.3 Ω
|
66.7 Ω
|
|
Minimum impedance per channel
|
2.6 Ω
|
4 Ω
|
10 Ω
|
16.7 Ω
|
|
Amplifier
|
|
Nominal Gain (+6 dBu input sensitivity, LEVEL 0 dB)
|
24.0 dB
|
27.0 dB
|
33.2 dB
|
36.2 dB
|
|
Maximum Gain (0 dBu input sensitivity, LEVEL +6 dB)
|
30.0 dB
|
33.0 dB
|
39.2 dB
|
42.2 dB
|
|
THD+N (1/8 rated output power, 1 kHz)
|
< 0.1 %
|
|
Crosstalk (ref. 1 kHz, 12 dB below maximum)
|
< -80 dB
|
< -85 dB
|
< -90 dB
|
< -95 dB
|
|
Frequency Response2 (ref. 1 kHz, analog in to speaker out, -3 dB)
|
HP: 30/100/150 Hz to 20 kHz
LP: 30 Hz to 150 Hz
|
HP: 50/100/150 Hz to 20 kHz
LP: 50 Hz to 150 Hz
|
|
Damping Factor (30/50 Hz to 1 kHz, ref. to rated impedance)
|
> 80
|
> 160
|
> 500
|
> 1000
|
|
Output Stage Topology
|
Class D, fixed frequency
|
|
Signal to Noise Ratio (A‑weighted, ref. to rated output power, LEVEL 0 dB)
|
> 98 dB
|
> 100 dB
|
> 101 dB> 103 dB
|
|
|
Output Noise (A-weighted, LEVEL 0 dB)
|
< -68 dBu
|
< -67 dBu
|
< -62 dBu
|
< -61 dBu
|
|

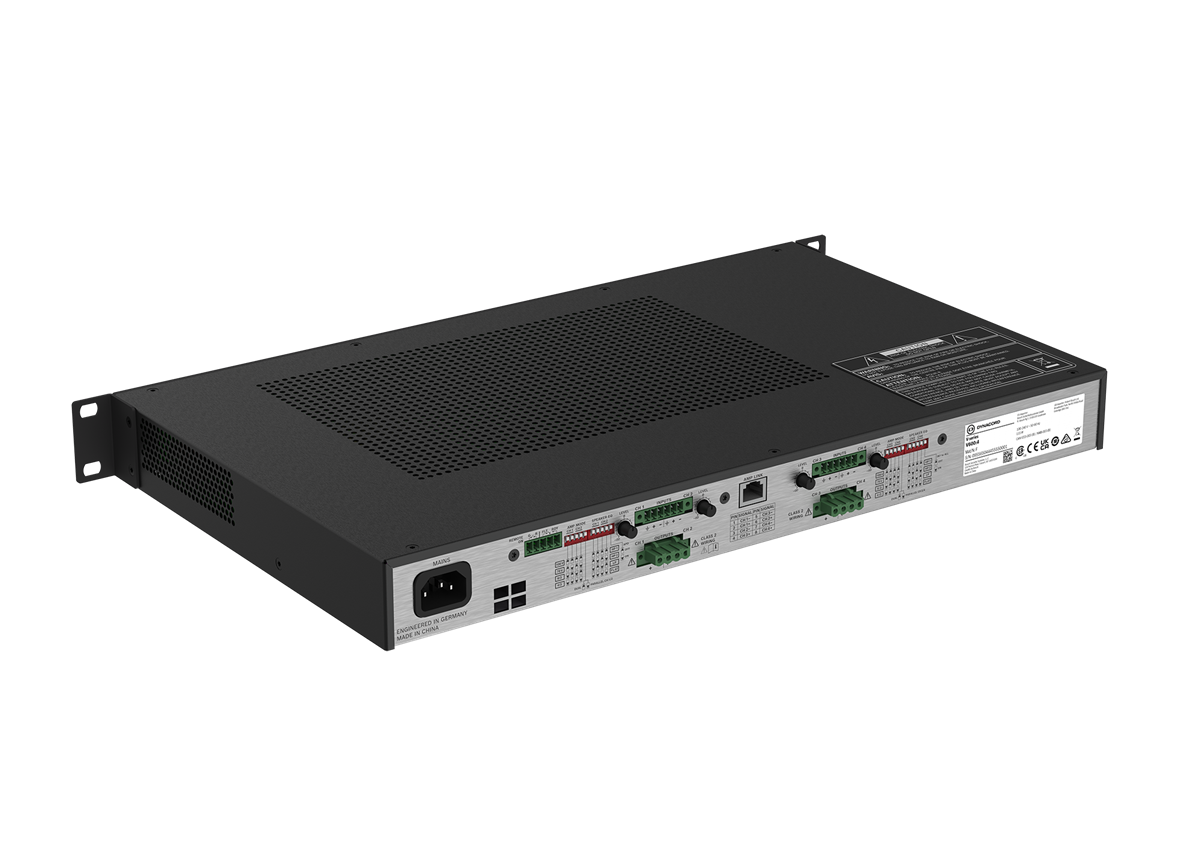

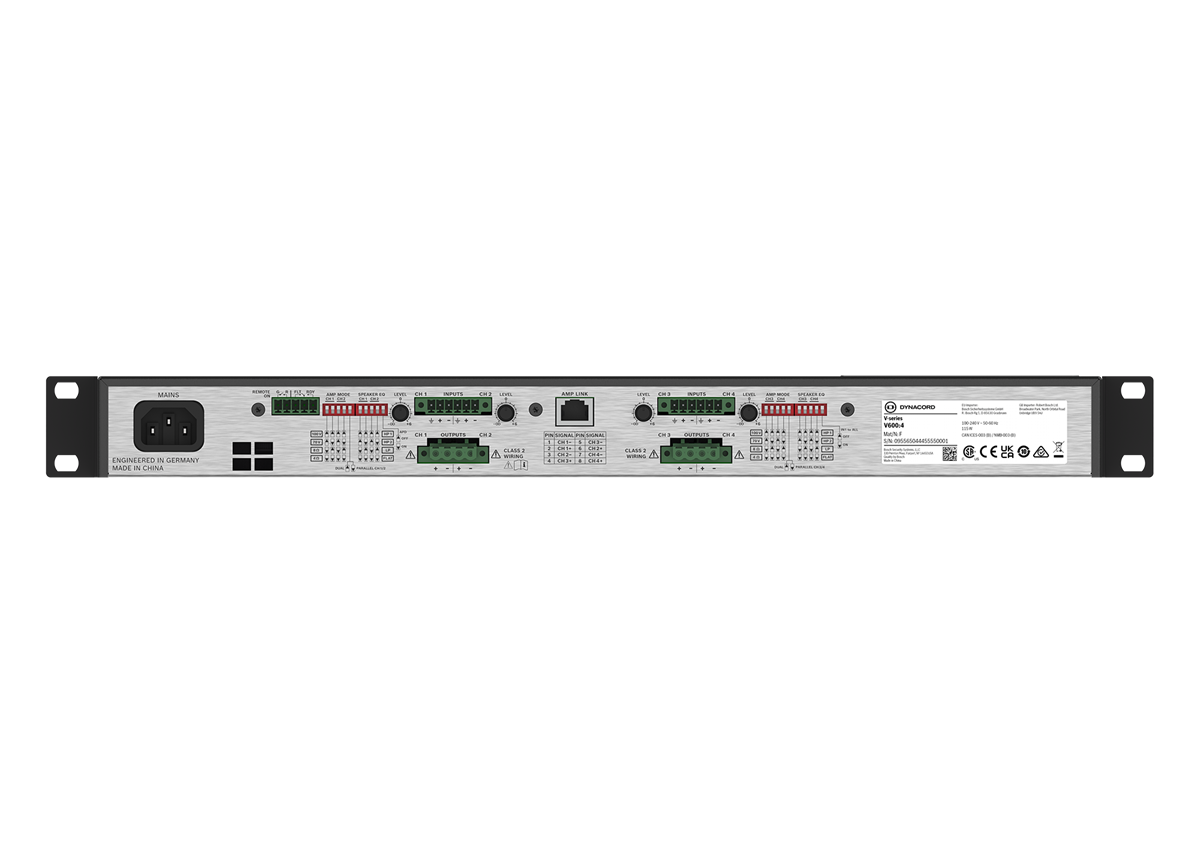

Connectivity
|
|
Analog Audio Input
|
|
Type
|
2 x 6‑pin Euroblock, 3.81 mm, male, parallel 1x RJ45 AMP‑LINK
|
|
Maximum input level (LEVEL 0 dB)
|
+18 dBu
|
|
Input impedance, active balanced
|
20 kΩ
|
|
Mains Input
|
IEC C14
|
|
Loudspeaker output
|
2 x 4-pin Euroblock, 5.08 mm, female
|
|
Control Port
|
|
Type
|
1 x 5‑pin Euroblock, 3.81 mm, male
|
|
REMOTE ON
|
Remote On / Standby contact (overrides power button on front panel)
|
|
READY/FAULT
|
Galvanic isolated relay,
|
|
General
|
|
Signal processing
|
Input Routing, HPF 24 dB/ Oct., LPF 24 dB/Oct., Flat, Peak Limiter
|
|
Power requirements
|
100 V to 240 V, 50 Hz to 60 Hz AC
|
|
Power consumption
|
|
Consumption at 1/8 rated output power
|
115 W
|
|
Idle mode (ecoRAIL with no input signal)
|
< 20 W
|
|
Standby mode (APD active)
|
< 1 W
|
|
Power supply topology
|
Switching power supply with power factor correction
|
|
Protections
|
Audio limiters, high temperature, DC, HF, short circuit, back‑EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
|
|

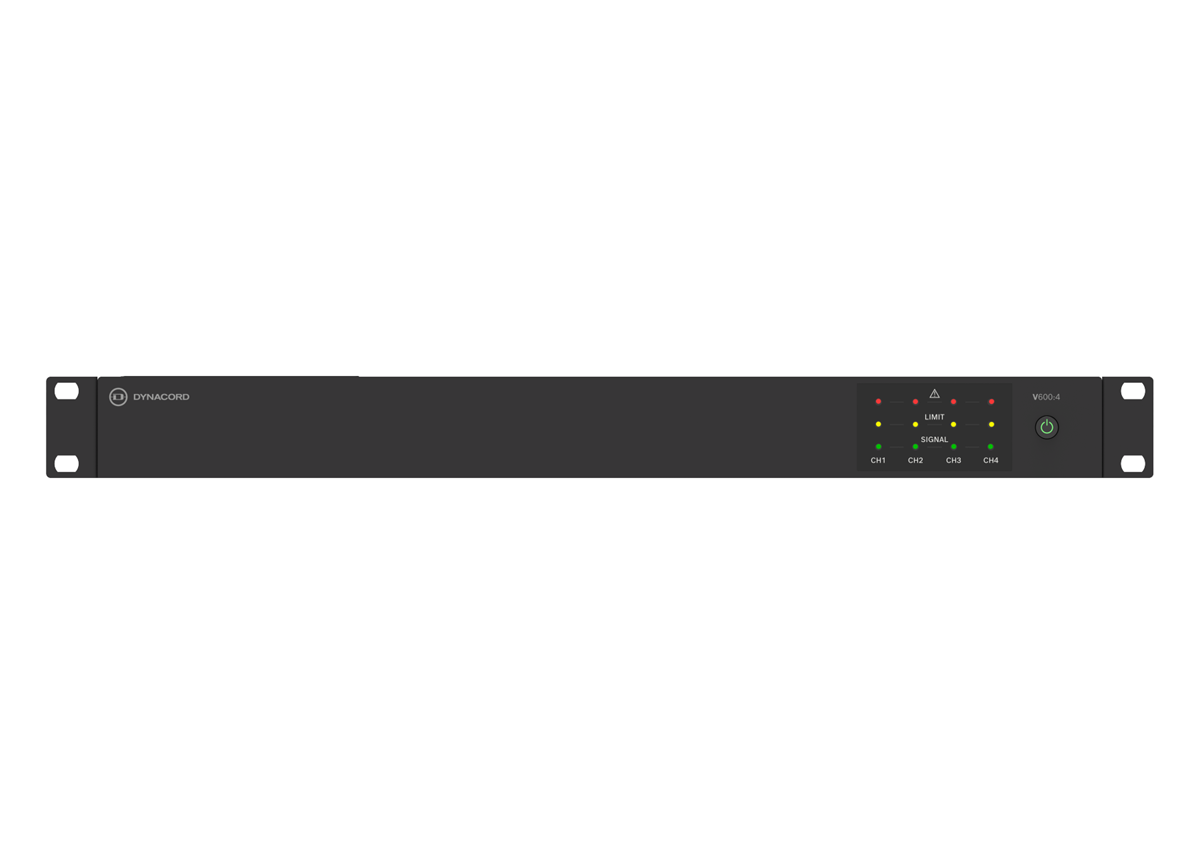

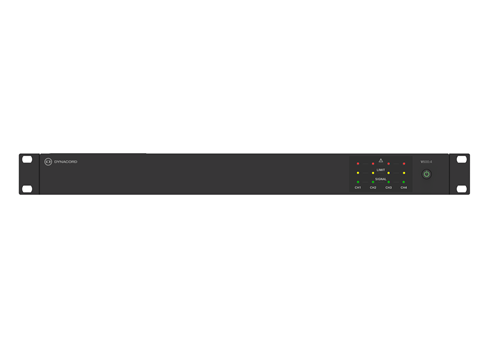

Front status
|
LEDs Signal, limit, fault LEDs per channel; power LED
|
|
Environmental
|
|
Climatic conditions
|
|
Cooling concept
|
Convection cooling in tabletop application and rack application with spacing between units. Forced cooling (side to rear) in rack application without spacing between units and in extreme thermal conditions.
|
|
Ambient temperature limits
|
-5 °C to +45 °C
(+23 °F to +113 °F)
|
|
Altitude (operating)
|
-500 m to +5000 m
(-1614 ft to 16404 ft)
|
|
Mechanical
|
|
Enclosure
|
|
IEC Protection Class
|
Class I (grounded)
|
|
Dimensions (HxWxD)
With 19” mounting brackets
|
44.2 x 483 x 269.5 mm
(1.74 x 19.2 x 10.6 in)
|
|
Weight
|
3.6 kg (7.9 lb)
|
|
|
|
|
|
|
|
|
|
